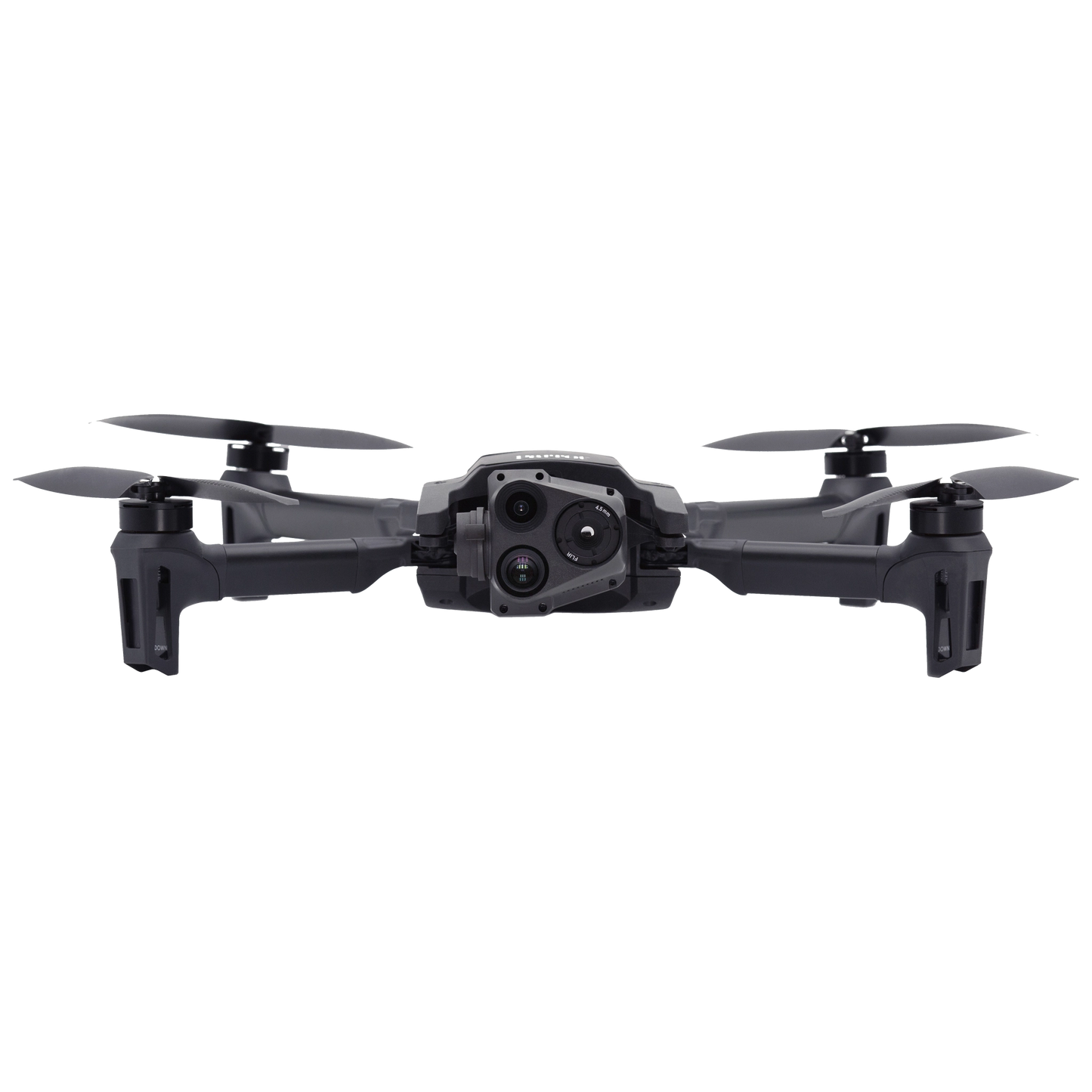

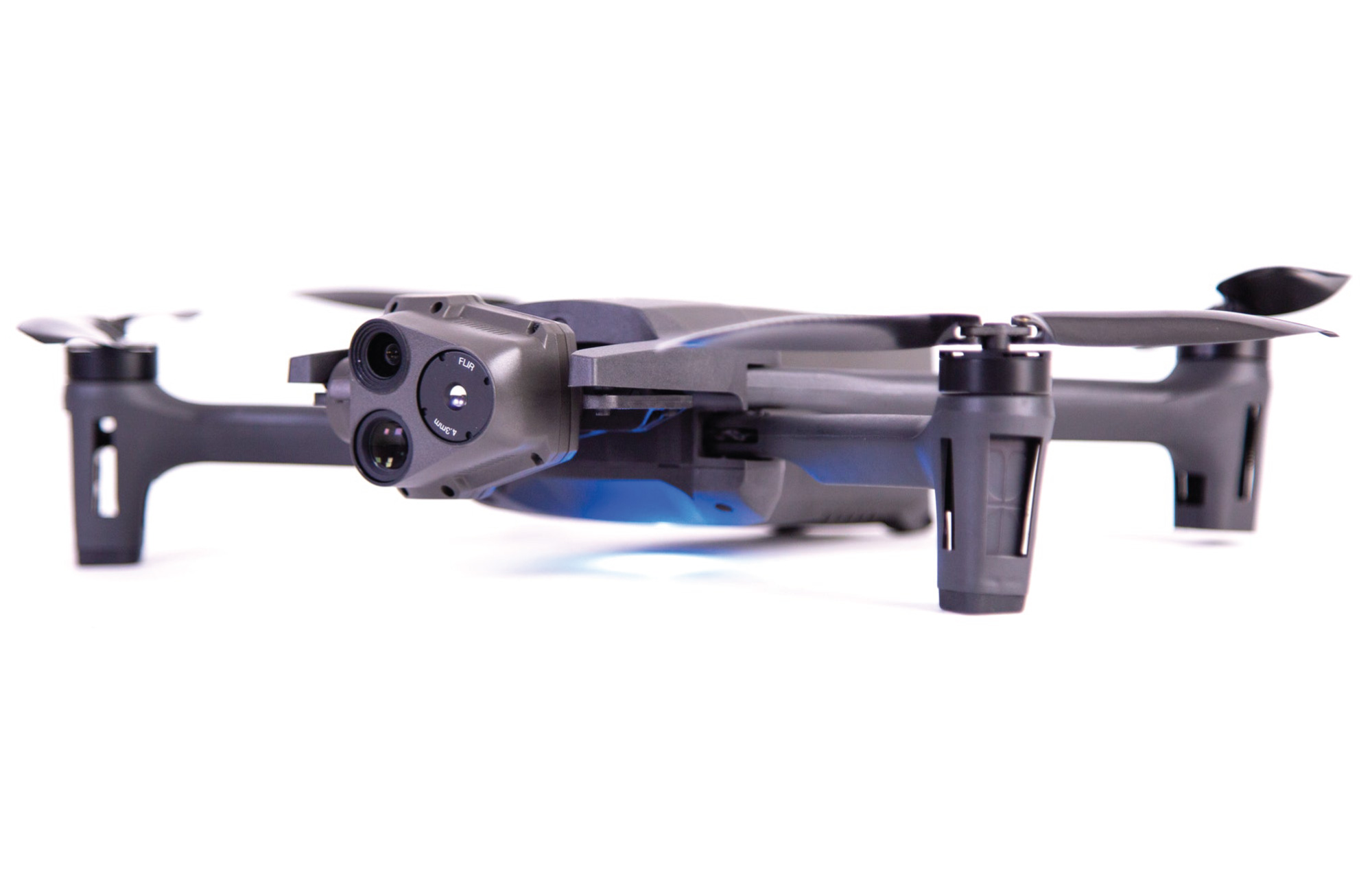

Parrot - ANAFI USA.GOV

ANAFI USA is a powerful drone built to meet the demands of first responders, firefighters, search-and-rescue teams, security agencies, surveying and inspection professionals. Featuring an industry-first 32x zoom, 4K HDR video and thermal imaging capabilities, ANAFI USA is an ultraportable, secure and durable aerial camera platform.



Features

• Blue sUAS program approved
• NDAA & TAA compliant
• 32x zoom
• Thermal camera
• Flight ready in 55 sec
• Cybersecurity – Made in the USA



What's in the box?

• 1 ANAFI USA_GOV Drone
• 3 smart batteries (3x32 minutes)

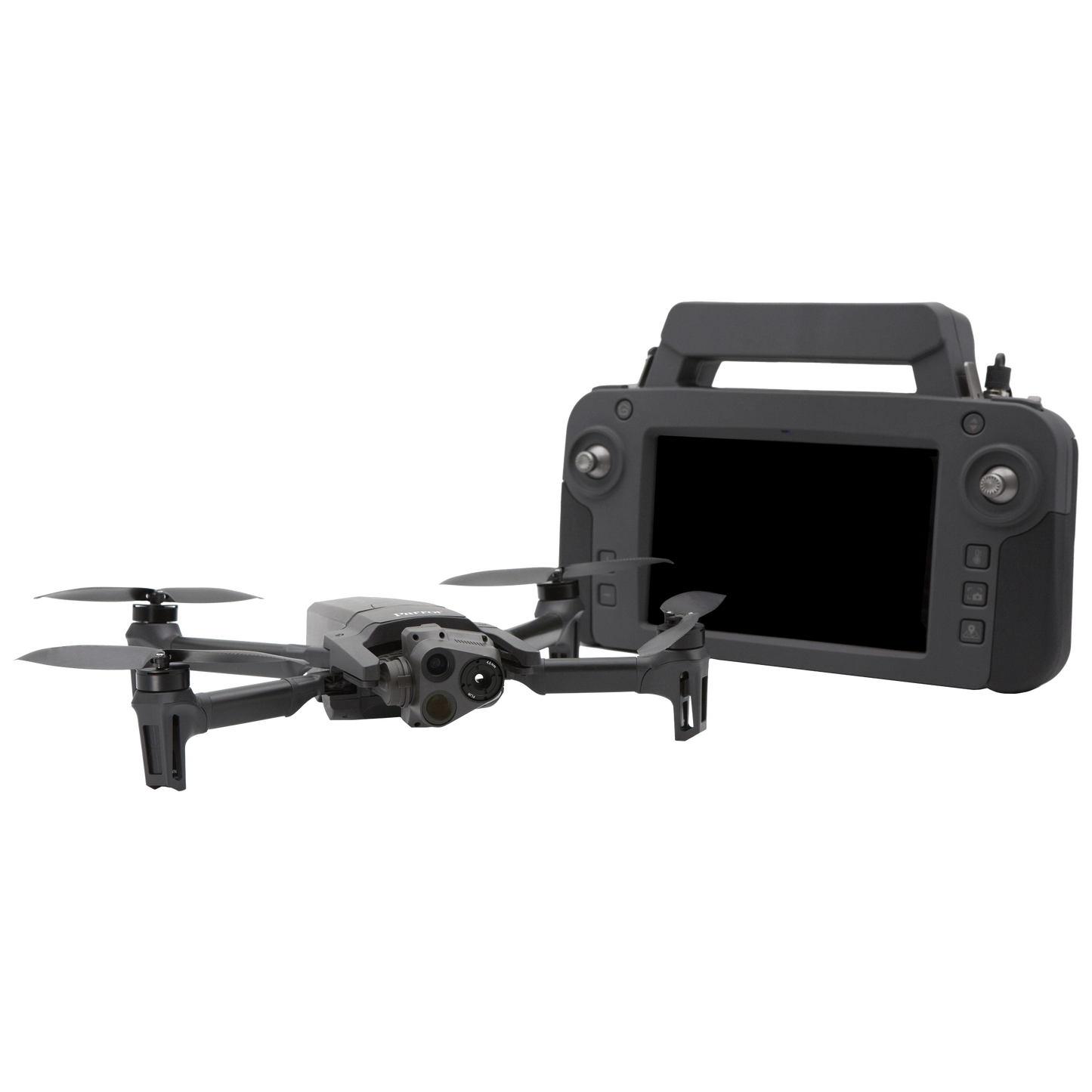

• 1 Skycontroller USA with its 8-inch display
• 1 multi-port fast USB charger
• 1 Skycontroller USA charger
• 1 additional set of propeller blades
• 3 USB-A/USB-C cables
• 1 Hard Case



Specs

DRONE

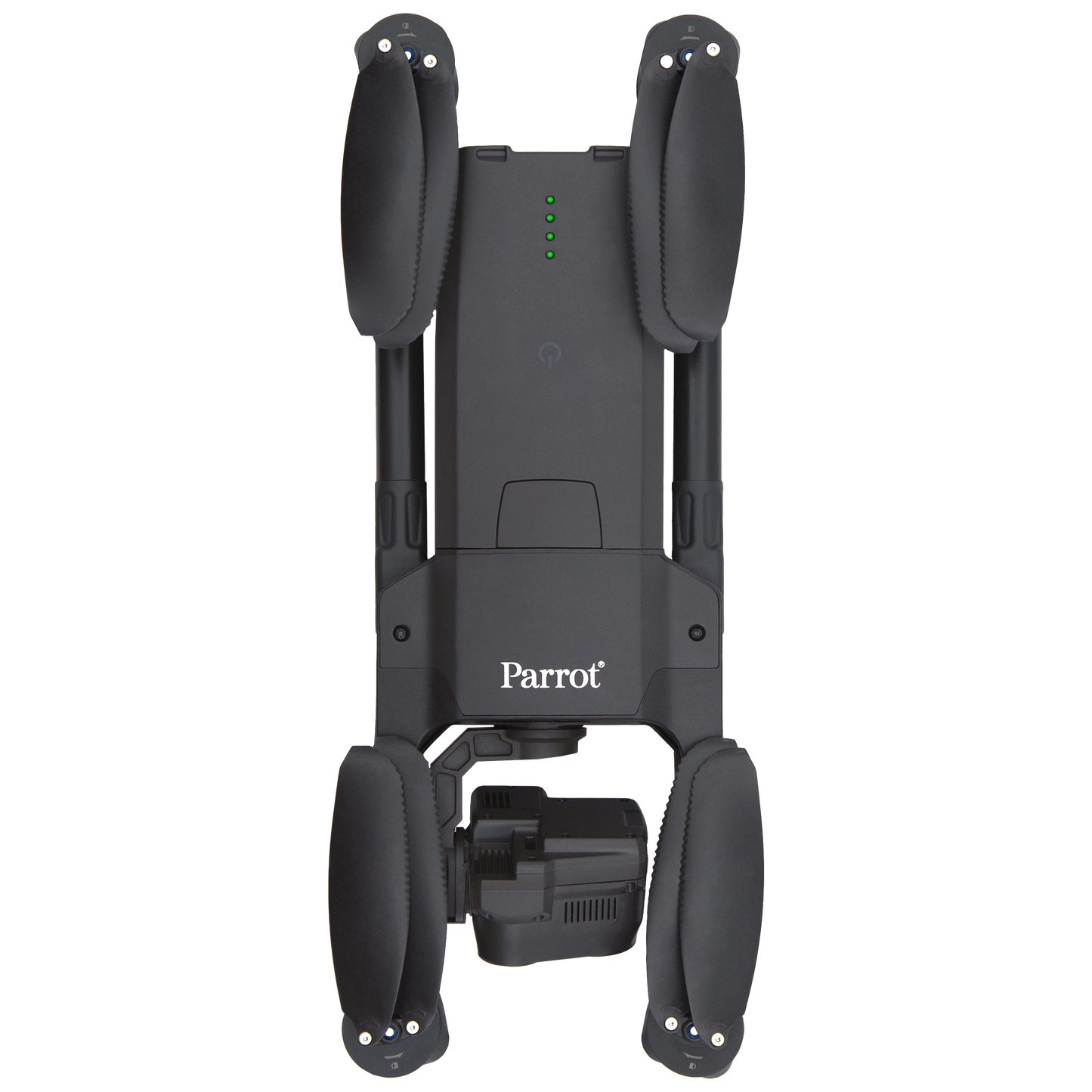

• Size folded: 252 x 104 x 84 mm
• Size unfolded: 282 x 373 x 82 mm
• Size unfolded on MIL version: 282 x 373 x 192 mm
• Mass: 500 g / 1.10 lb
• Maximum take-off mass (MTOM): 644 g / 1.42 lb.
• Maximum flight time: 32 minutes (30 minutes on MIL version)
• Maximum horizontal speed: 14.7 m/s
• Maximum ascent speed: 4 m/s (6 m/s on unlocked SE, GOV and MIL versions)
• Maximum descent speed: 3 m/s
• Maximum wind resistance: 14.7 m/s
• Maximum propeller speed: 11,000 rpm
• Sound power level at 1 m (3 ft): 84 dB
• Service ceiling: 5,000 m above MSL (Mean Sea Level)
• User defined geofencing
• IP53 certified: dust and rain resistant
• Operating temperature: -33 °F (-36 °C) to +122 °F (+50 °C)
• No take-off temperature limitations

SECURITY

• Zero data shared by default
• SD card AES-XTS encryption with a 512 bits key
• WPA2 AES CCMP encrypted network connections
• Digitally signed firmware

SENSORS

• Satellite navigation: GPS, GLONASS & GALILEO
• Barometer and magnetometer
• Vertical camera and ultra-sonar
• 2 x 6-axis IMU
• 2 x 3-axis accelerometers
• 2 x 3-axis gyroscopes

EO IMAGE CHAIN

• 2 sensors: 1/2.4’’
• Digital zoom: 32x
• Electronic shutter speed: 1 s to 1/10,000 s
• ISO range: 100 – 3200
• Video resolution: 4K/FHD/HD
• Video format: MP4 (H.264)
• Photo resolutions: Wide: 21 MP (84° FOV) / Rectilinear: up to 16 MP (up to 75.5° FOV)
• Photo formats: JPEG, DNG (Digital NeGative RAW)

IR IMAGE CHAIN

• Sensor: FLIR BOSON
• Digital zoom: 32x -40 °C to +150 °C temperature range
• Thermal sensitivity: ≤60 mK
• Measured IR wavelength range: 7.5 to 13 micrometers
• Video resolution: 1280 x 720 px
• Video format: MP4 (H.264)
• Framerate: 9 fps
• Photo resolution: 320 x 256 px
• Photo format: JPEG IMAGE STABILIZATION
• 3-camera IR/EO stabilized gimbal: Hybrid: 3-axis / Mechanical: 2-axis roll / pitch / Electronics (EIS): 3-axis pitch / roll / yaw Controllable gimbal tilt range: -90° to +90°



Please note, prices are susceptible to variations. The sales team at RMUS Canada can be contacted through email sales@rmus.ca or you can call us (416) 303-3575.
