MicaSense - RedEdge-P (REP) Red Multispectral Kit + DJI Skyport
MicaSense - RedEdge-P (REP) Red Multispectral Kit + DJI Skyport
RedEdge-P uses purpose-built optics and industry-leading industrial image sensors coupled with narrowband, scientific-grade filters. In addition, it undergoes a rigorous factory calibration process, creating a high-quality, calibrated, rugged tool for pan-sharpened multispectral outputs you can trust.
Features
- High-resolution panchromatic band for pan-sharpened output resolutions of 2cm (0.8in) at 60m.
- Five spectral bands for multiple vegetation indices and composites.
- New professional removable storage standard in CFexpress, enabling up to three captures per second for faster flight speeds, cutting down on time required to map an area.
- Electrical and mechanical interfaces compatible with existing RedEdge installations with just a connector upgrade.
What's in the box?

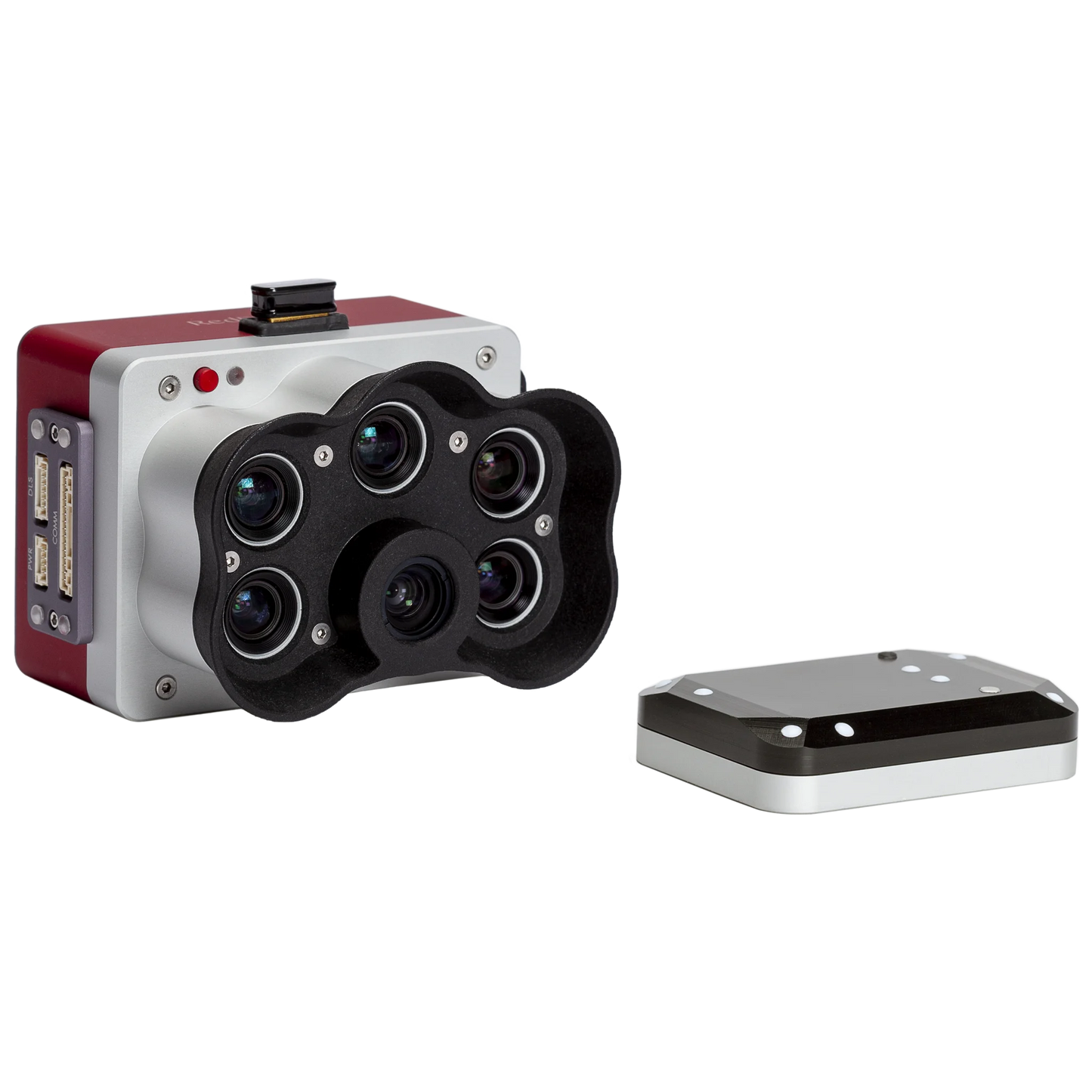

- RedEdge-P sensor
- Lens cover
- Calibrated reflectance panel
- DLS 2 light sensor with integrated GPS
- RedEdge-P and DLS 2 cables
- Mounting screws
- Hard carrying case
- CFexpress card reader
Specs
- Weight: 350 g (12.3 oz.) RedEdge-P + DLS 2
- Dimensions: 8.9 x 7.0 x 6.7 cm (3.5in x 2.8in x 2.6in)
- RGB output: 5.1 MP (global shutter, aligned with all bands)
- Sensor resolution: 1456 x 1088 (1.6MP per MS band) / 2464 x 2056 (5.1MP panchromatic band)
- Ground sample distance: 7.7 cm per pixel (per MS band) at 120m (~400 ft) AGL / 3.98 cm per pixel (panchromatic band) at 120m (~400 ft) AGL
- Field of view: 50° HFOV x 38° VFOV (MS) / 44° HFOV x 38° VFOV (PAN)
External power: 7.0 V - 25.2 V - Power input: 5.5/7.0/10W (standby, average, peak)
- IP rating: IP4X
- Capture rate: Up to three captures per second raw DNG
- Storage: CFexpress card
- Interfaces: Three configurable GPIO: select from trigger input, PPS input, PPS output, and top of frame signals. Host virtual button. USB 2.0 port for WiFi. Serial. 10/100/1000 Ethernet. CF Express for storage
- Spectral bands: Blue (475 nm center, 32 nm bandwidth) / Green (560 nm center, 27 nm bandwidth) / Red (668 nm center, 14 nm bandwidth) / Red Edge (717 nm center, 12 nm bandwidth) / Near-IR (842 nm center, 57 nm bandwidth)
*With appropriate post-processing
**Note: Specifications are subject to change without notice
