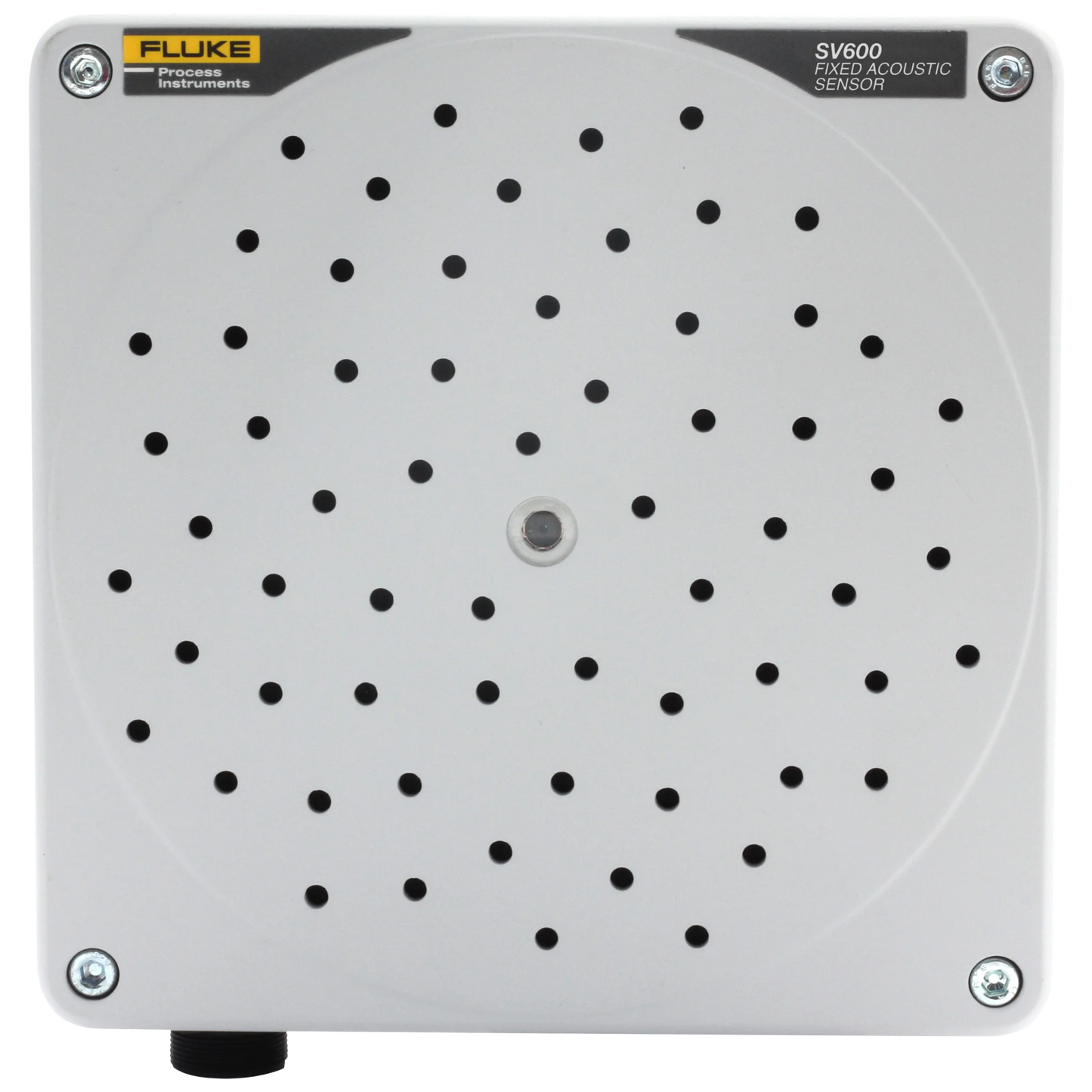

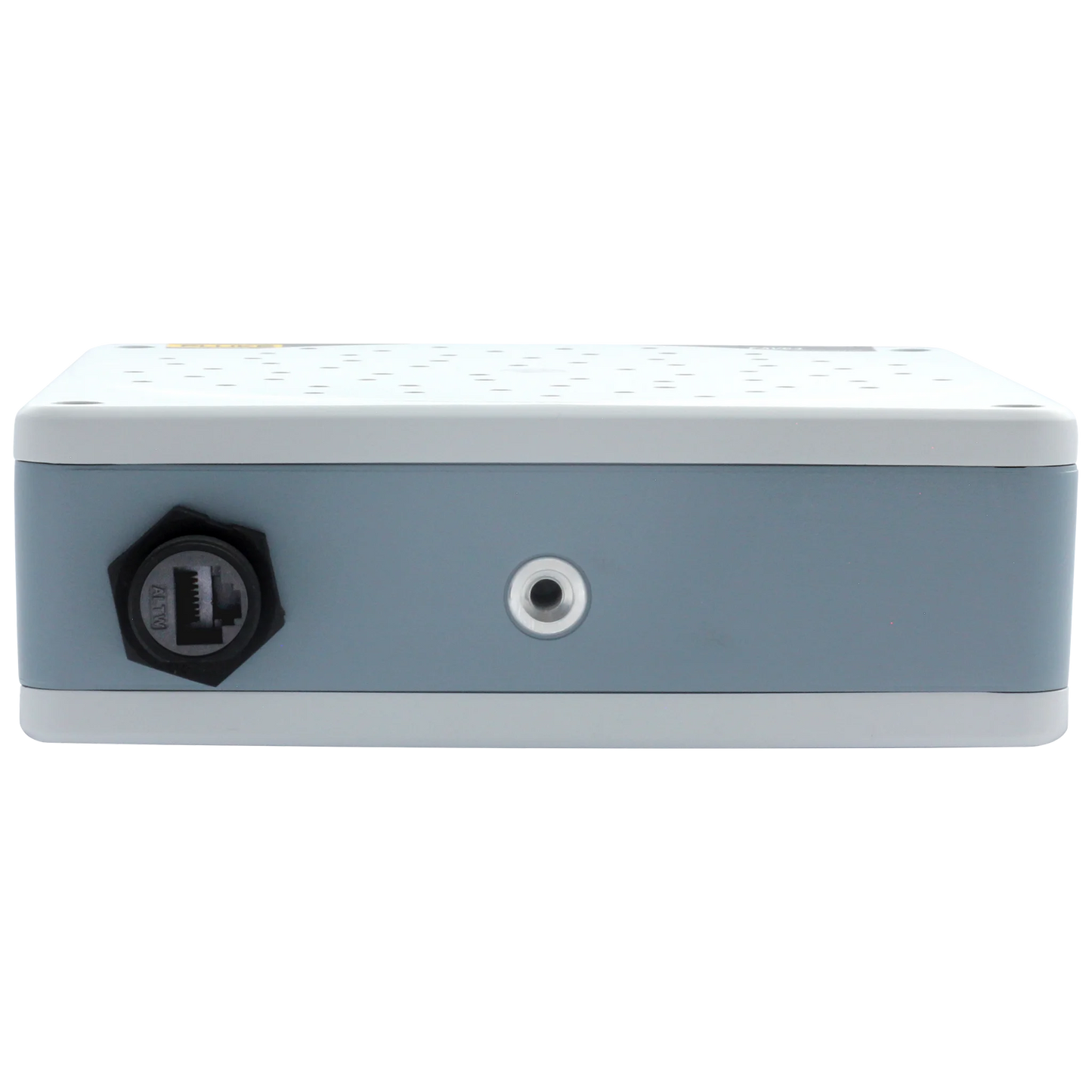

SV600 - Fixed Accoustic Imager for Spot

The SV600 Fixed Acoustic Imager enables users to continuously detect, locate and visualize air and gas leaks or changes in sound signatures before they become costly problems. Discover the power of autonomous robotics and industrial maintenance working together. The SV600 can be mounted for various continuous acoustic imaging applications – including as a Boston Dynamics Spot® payload. And with the firmware 3.3 release for Spot®, the SV600 is fully integrated into the robotic system, making it the perfect partnership of convenience and functionality.



Features

• High-end 24/7 acoustic monitoring
• 64-Digital MEMS microphones placed in a Sunflower Array
• Integrated visual light camera
• Powerful processor for onboard real time processing: Sound classification / Frequency filtering / dB values and sound intensity mapping / Event triggering
• Ethernet network communications interface with installed 8-wire M12 fieldbus or RJ45 connector
• Power over Ethernet (POE)
• Ingress Protection IP54
• Option for IO support through fieldbus coupler



What's in the box?

• 1x SV600 payload (SW600-0 model includes special mounting to SPOT)
• 1x Frame with roll cage to mount on SPOT
• 1x BD cable interface to connect to SPOT



Specs

Physical Properties

• Dimensions (L x W x D): 170 x 170 x 65 mm / 6.69 x 6.69 x 2.56 inch
• Weight : 0.85 kg / 1.7 lbs
• Communication + Power: POE IEEE 802.3af SV600-1 / Connected via RJ45 or M12 8-Pin; IEEE 802.3 / Status LED

System Integration

• Event Triggering: Set alarm levels for sound level (dB) and frequency (kHz) range
• Event Actions: Recording to external PC as .csv or .txt file

Camera

• Integrated Visible Light: Included with fixed lens
• Resolution Video: 640 x 480
• Camera Field of View: 65° ±3°
• Camera Resolution: 720 p at 30 fps

Microphones

• Type: MEMS, Digital Bottom Port
• SNR (A-weighted, at 1 kHz): 64 dB for 94 dB SPL @ 1kHz
• Sensitivity: -26 dB FS +/-1.5 dB at 1 kHz, 94 dB SPL
• Acoustic Overload Point: 120 dB SPL at 1 kHz, <10 % THD

General

• Ingress Protection: IP54
• Operating Temperatures: -20 °C to 50 °C (4 °F to 122 °F)

Compliance

• FCC: Title47.Part 15
• EMC: EN55032:2015 / EN61000-4-2:2009 / EN61000-4-3:2006 / EN61000-4-4:2012 / EN61000-4-5:2006 / EN61000-4-6:2009 / EN61010-1:2010
• KCC: Electromagnetic Compatibility. Applies to use in Korea only. Class A Equipment (Industrial Broadcasting & Communication Equipment)

Data Formats

• Audio: .wav (audio verification)
• Pictures: .jpg, .png
• Video (V/V+ models): .mjpeg, .mp4
• Data Messages: .json
