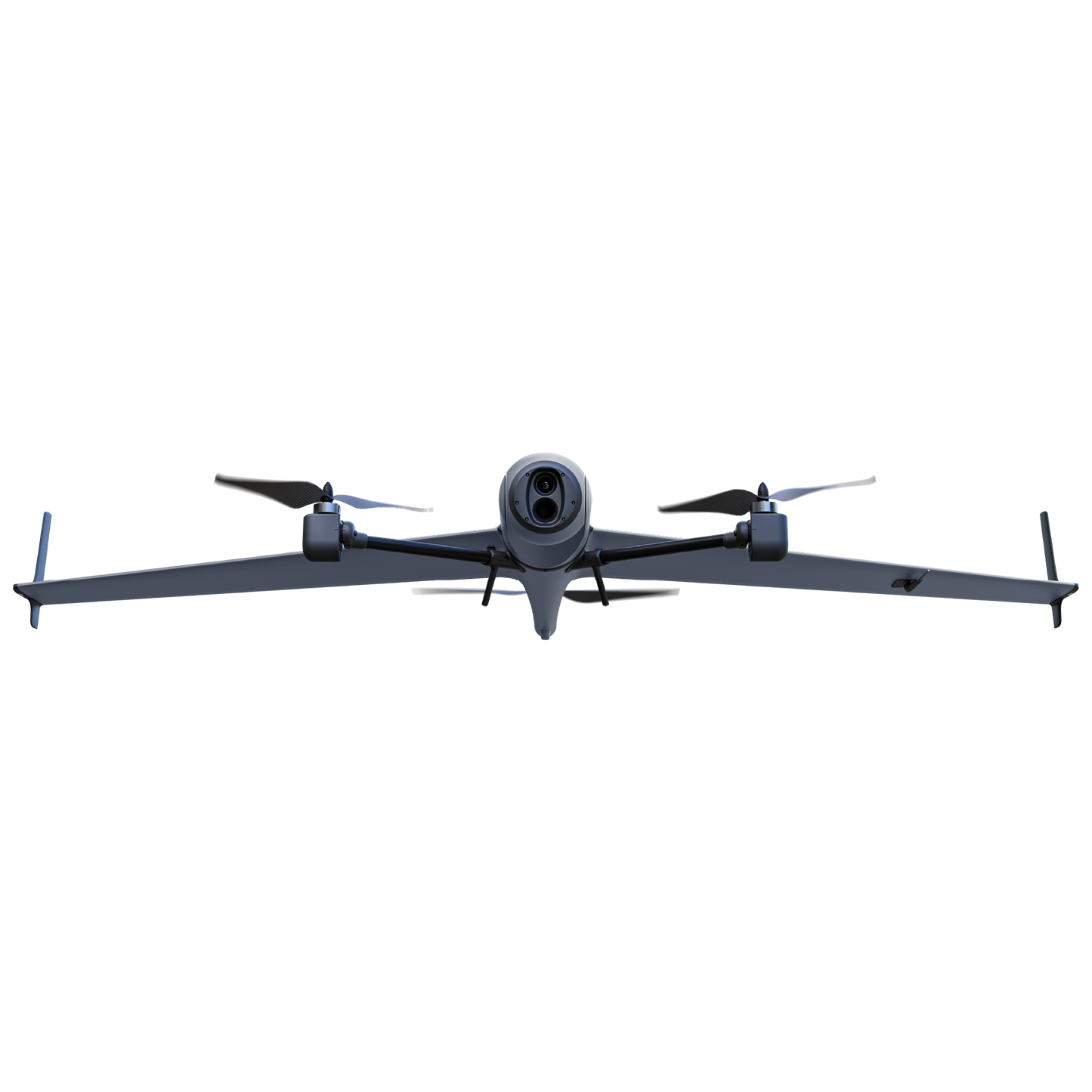

FlightWave - Edge 130 Blue

The Edge 130 Blue is a military-grade tricopter providing medium-range mapping, inspection, intelligence, surveillance, and reconnaissance.

With its innovative vertical take-off and landing capabilities, hover and forward flight modes, and tool-free payload swapping, the Edge 130 can operate in the most challenging environments.

Features

Forward Flight and Hover

Independent tilt-pod technology enables smooth transitions between forward flight and hover.

Vertical Take-off and Landing

Take-off and land anywhere without the need for cumbersome ground equipment.

Blue Approved Payloads

Swapped in seconds with no tools or special equipment - no need to buy an aircraft for every camera or sensor.

Cyber Hardened

Encrypted AES 128/256 radios provide tighter security between operator and aircraft when it matters.

Navigation Beacons

User controlled visual and infrared navigation beacons enable safe recovery of aircraft.

Non-ISM Frequencies

Regulated radio frequencies operating beyond public ISM bands are available on demand.

Specs

Vehicle Mass: 1,200g / 2.65lb

Energy Storage: Lithium-ion

Comm Frequencies: 900MHz Telemetry / 2.4GHz Data

Encryption: 128 / 256 AES

Range: 10-20km / 6.2-12.4mi

Nominal Cruise Speed: 15m/s / 33mph / 55kph

Max. Cruise Speed: 27m/s / 65mph / 100kph

Min. Cruise Speed: 11m/s / 24mph / 40kph

Max. Altitude: 3,650m / 12,000ft

Max. Payload Mass: 345g / 0.76lb

Cruise Endurance: 60+ minutes*

Hover Only Endurance: 30 minutes*

Battery Nominal Capacity: 86.4 wh, 6.0ah, 14.8v

Max. Wind Speed: 17m/s / 40mph / 64kph

Max. Wind Gust: 27m/s / 65mph / 100kph

*standard atmospheric pressure
