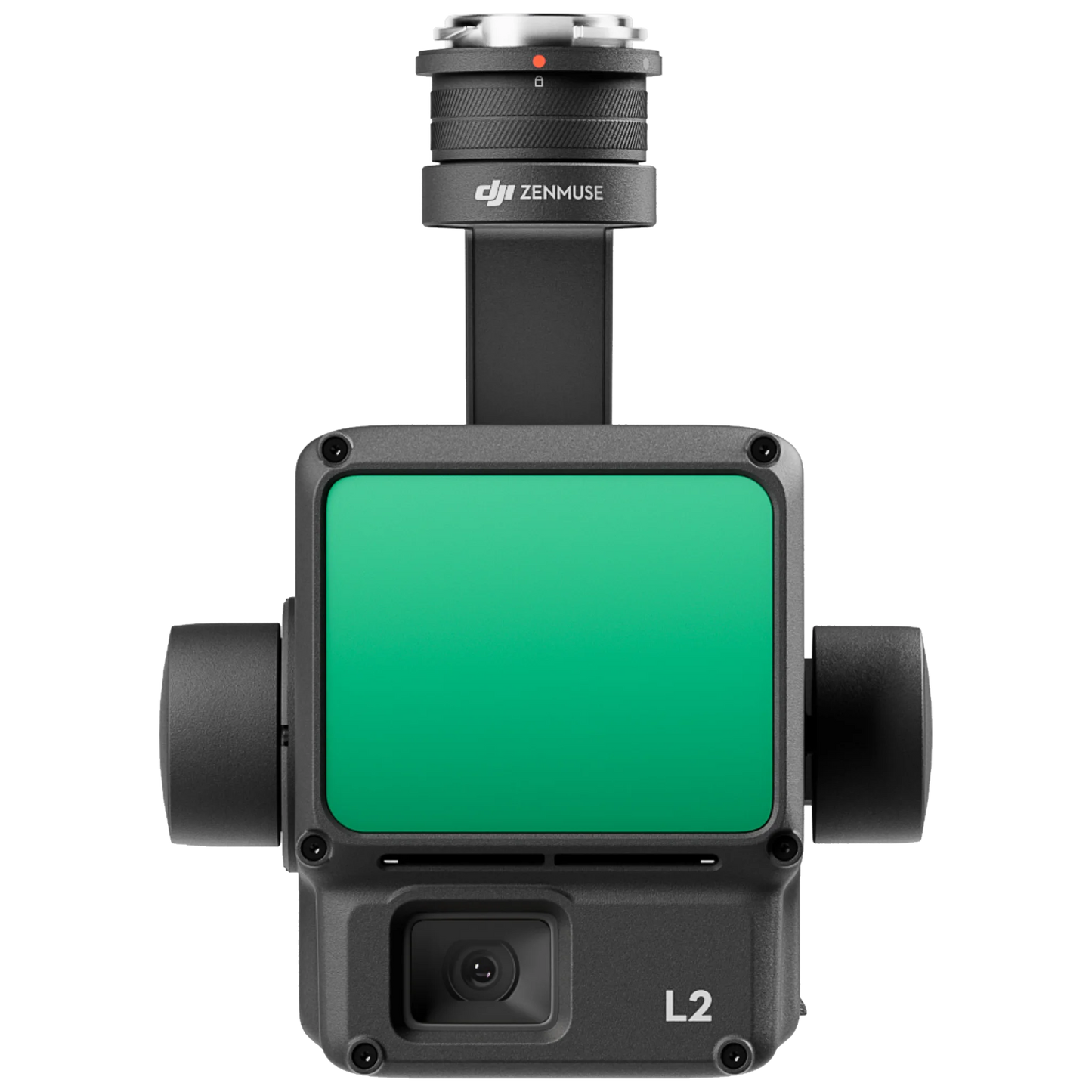

Zenmuse L2 - Basic

Zenmuse L2 is a high-precision aerial LiDAR system that empowers drones with more accurate and efficient 3D data collection. With 4cm vertical accuracy, 5cm horizontal accuracy, and the ability to cover an area of 2.5 km2 during a single flight, this IP54-rated system allows users to effortlessly handle a wide range of operational scenarios.



Features

Compatibility:

• Matrice 300 RTK (requires DJI RC Plus)
• Matrice 350 RTK



High Precision

• By combining GNSS and a self-developed high-accuracy IMU system, this solution achieves 4cm vertical accuracy and 5cm horizontal accuracy.



Exceptional Efficiency

• It’s ready for work as soon as it’s powered on and can collect point cloud data from a 2.5km² area in a single flight.



30% Detection Range Increase

• L2 reaches a detection range of up to 250 m (10% reflectivity, 100 klx) and 450 m (50% reflectivity, 0 klx). [3] The standard operational altitude now extends up to 120 meters.



Superior Penetration

• With a spot size of 4×12 cm at 100m, only a fifth of that of L1, L2 not only detects smaller objects and delivers more detailed models, but can generate DEM.



Point Cloud LiveView

• Supports three display modes - RGB, point cloud, and point cloud/RGB side-by-side display. Quickly preview the recorded 3D point cloud model [4] to get real-time progress monitoring.

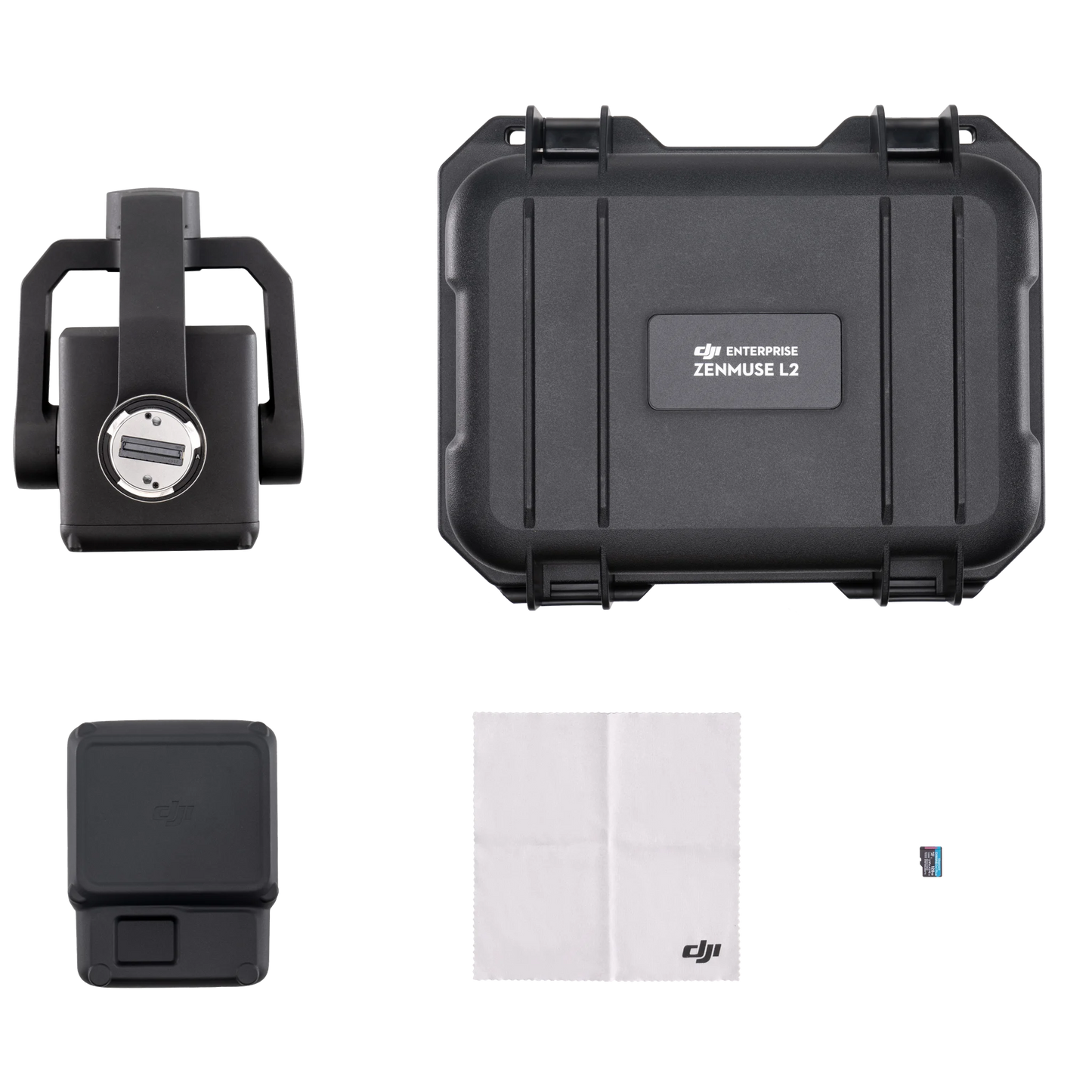

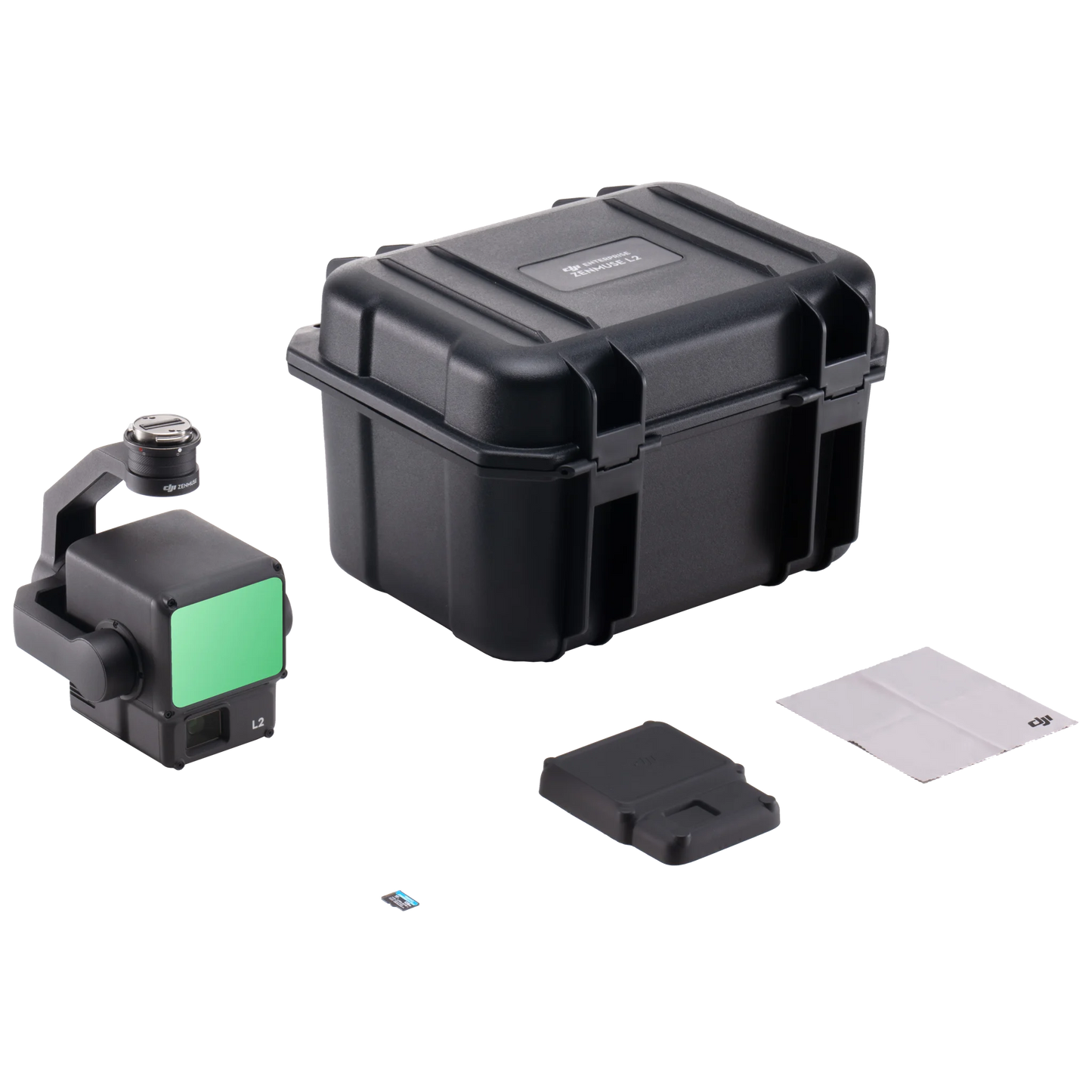

What's in the box?

• 1x Zenmuse L2
• 1x microSD Card (128GB)
• 1x Lens Cap
• 1x Lens Cleaning Cloth
• 1x Storage Case



Specs

• Dimensions: 155×128×176 mm (L×W×H)
• Weight: 905±5 g
• Power: 28 W (typical) / 58 W (max.)
• IP Rating: IP54
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• General Operating Temperature: -20° to 50° C (-4° to 122° F)
• Detection Range: 450m @50% reflectivity, 0 klx / 250m @10% reflectivity, 100 klx
• Point Cloud Rate: Single return: max. 240,000 pts/s / Multiple returns: max. 1,200,000 pts/s
• System Accuracy: Horizontal: 5 cm @ 150 m / Vertical: 4 cm @ 150 m Real-Time
• Point Cloud Coloring Coding: Reflectivity, Height, Distance, RGB



LiDAR

• Ranging Accuracy (RMS 1σ): 2 cm @ 150 m
• Maximum Returns Supported: 5
• Scanning Modes: Non-repetitive scanning pattern, Repetitive scanning pattern
• FOV: Repetitive scanning pattern: Horizontal 70°, Vertical 3° / Non-repetitive scanning pattern: Horizontal 70°, Vertical 75° Minimum Detection Range: 3 m
• Laser Beam Divergence: Horizontal 0.2 mrad, Vertical 0.6 mrad



RGB Mapping Camera

• Sensor: 4/3 CMOS, Effective Pixels: 20 MP
• Lens: FOV: 84° / Format Equivalent: 24 mm / Aperture: f/2.8-f/11 / Focus Points: 1 m to ∞ (with autofocus)
• Shutter Speed: Mechanical Shutter: 2-1/2000 s / Electronic Shutter: 2-1/8000 s
• Photo Size: 5280×3956 (4:3)
• Still Photography Modes: Single shot: 20 MP / Timed: 20 MP / JPEG Timed Interval: 0.7/1/2/3/5/7/10/15/20/30/60 s / RAW/JPEG + RAW Timed Interval: 2/3/5/7/10/15/20/30/60 s
• Video Codec and Resolution: H.264, H.265 / 4K: 3840×2160 @30fps / FHD: 1920×1080 @30fps
