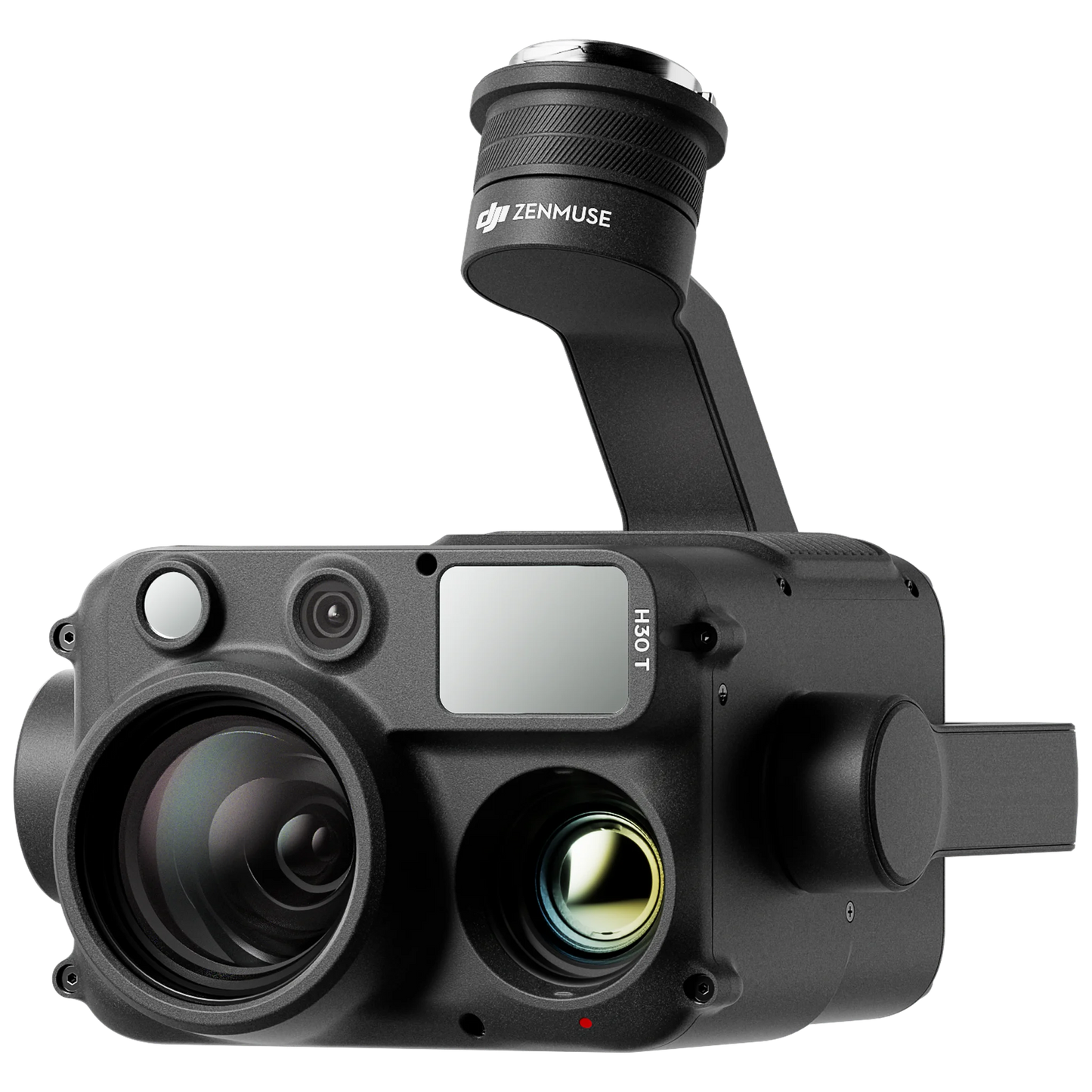

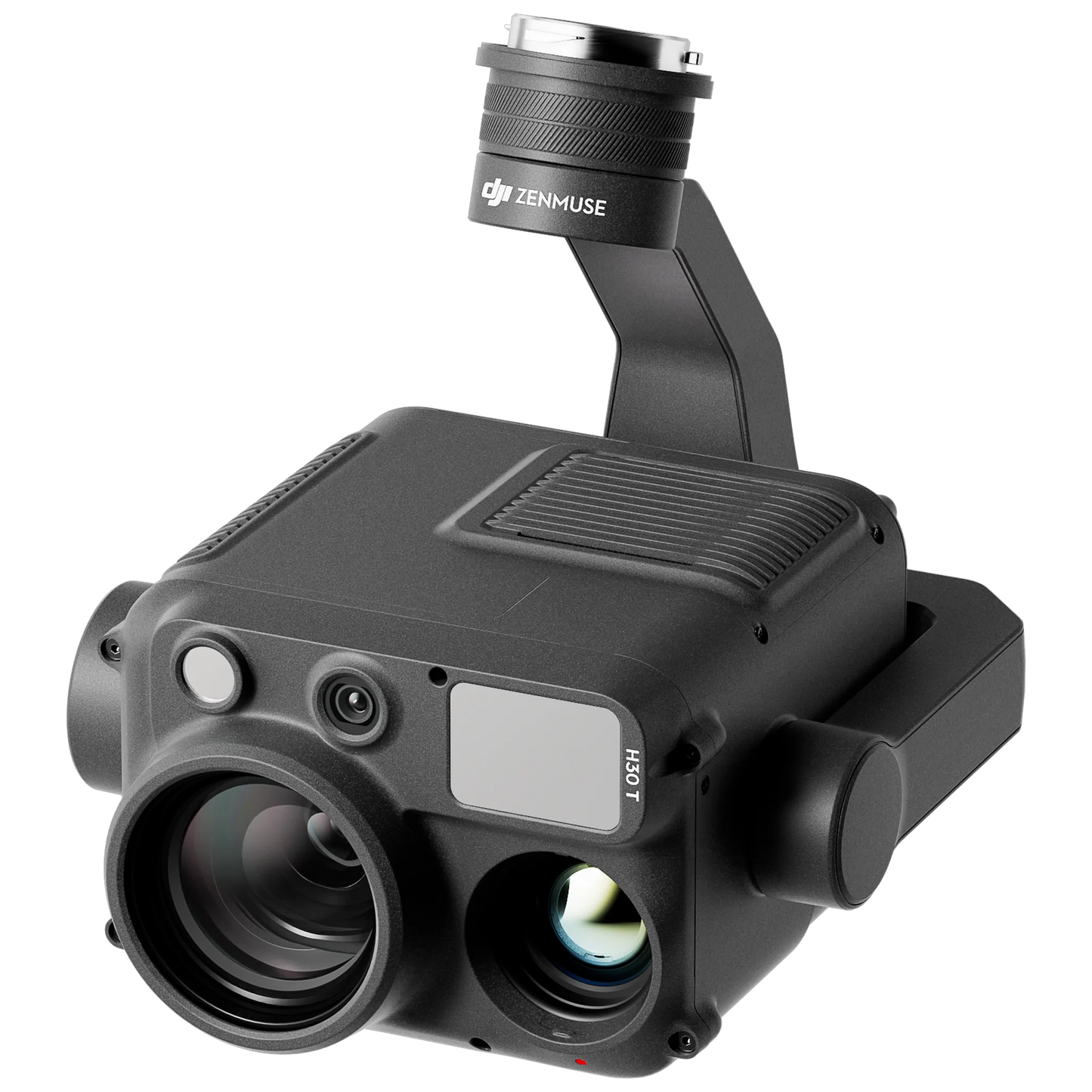

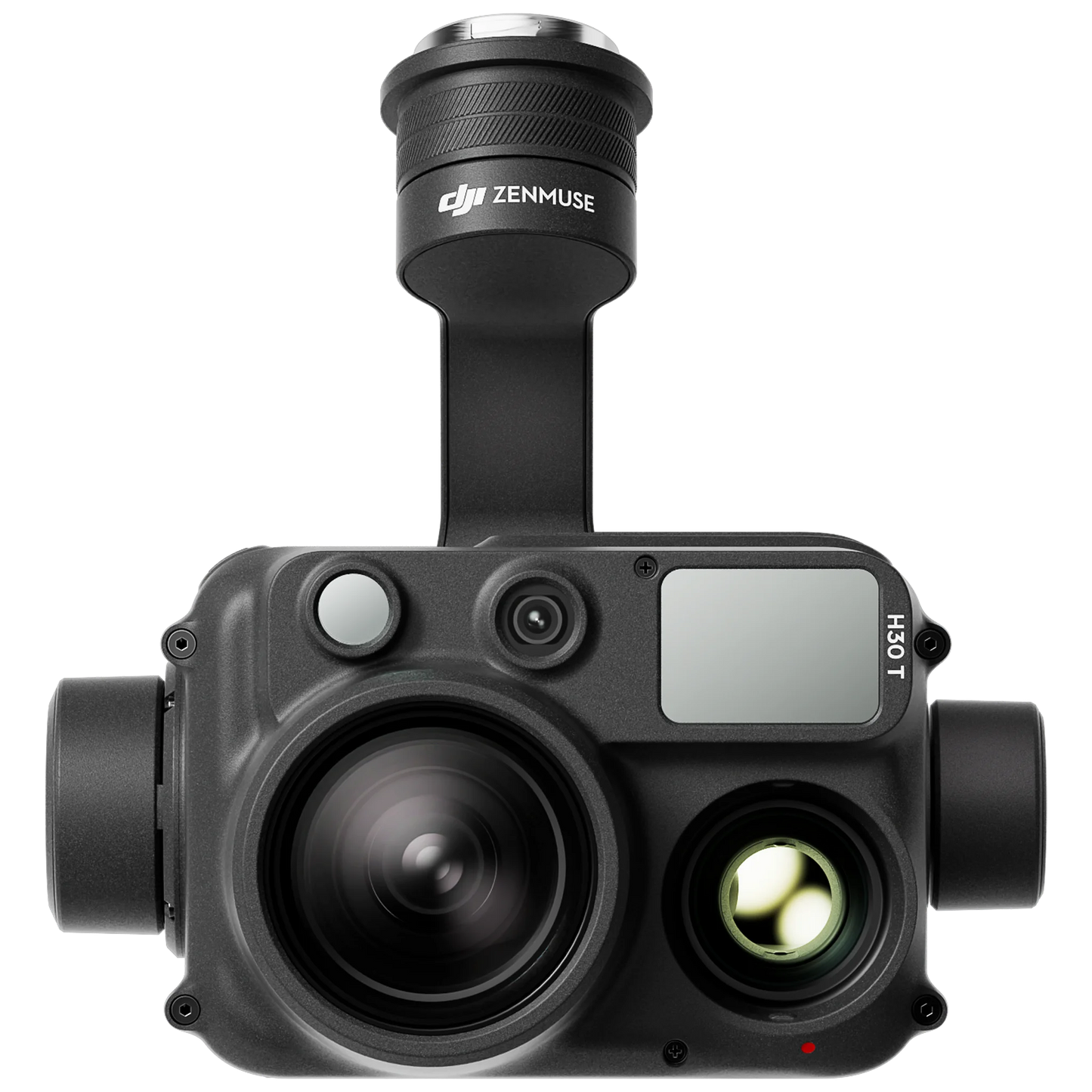

Zenmuse H30T (NA) SP

The all-weather, multi-sensor flagship Zenmuse H30 Series integrates five major modules —a wide-angle camera, a zoom camera, an infrared thermal camera, a laser range finder, and an NIR auxiliary light. Employing cutting-edge intelligent algorithms, it revolutionizes perception and imaging standards, transcending the limitations of day and night vision. This makes it ef- fortlessly suitable for a variety of operations including public safety, energy inspection, water conservation, and forestry.



Features

Compatibility:

• Matrice 300 RTK (requires DJI RC Plus)
• Matrice 350 RTK



Further and Clearer Vision

- Up to 34× Optical Zoom and 400× Digital Zoom
- More Stable Telephoto Imagery
- Max 3000m Laser Range Finder



Enhanced Night Vision

- Supports Full-Color Night Vision
- Supports Black and White Night Vision and NIR Illumination



More Powerful Infrared Performance

- 1280×1024 Resolutio
- High-Res Mode for Precise Observation
- Simultaneous Zoom for Visual and IR Cameras
- Temperature Measurement Range from -20° to 1600° C (-4° to 2912° F) [1]



Smarter Multi-Scenario Operations

- Smart Capture for Improved Imaging
- Electronic Dehazing



More Reliable Information Sync and Retention

- Supports Pre-Recording
- Media and Transmission Encryption with One-click Log Clearance
- Information Sync on the Cloud for Air and Ground-Based Collaborative Operation



Superior Environmental Adaptability

- IP54 Ingress Protection
- -20° to 50° C (-4° to 122° F) Operating Temperature

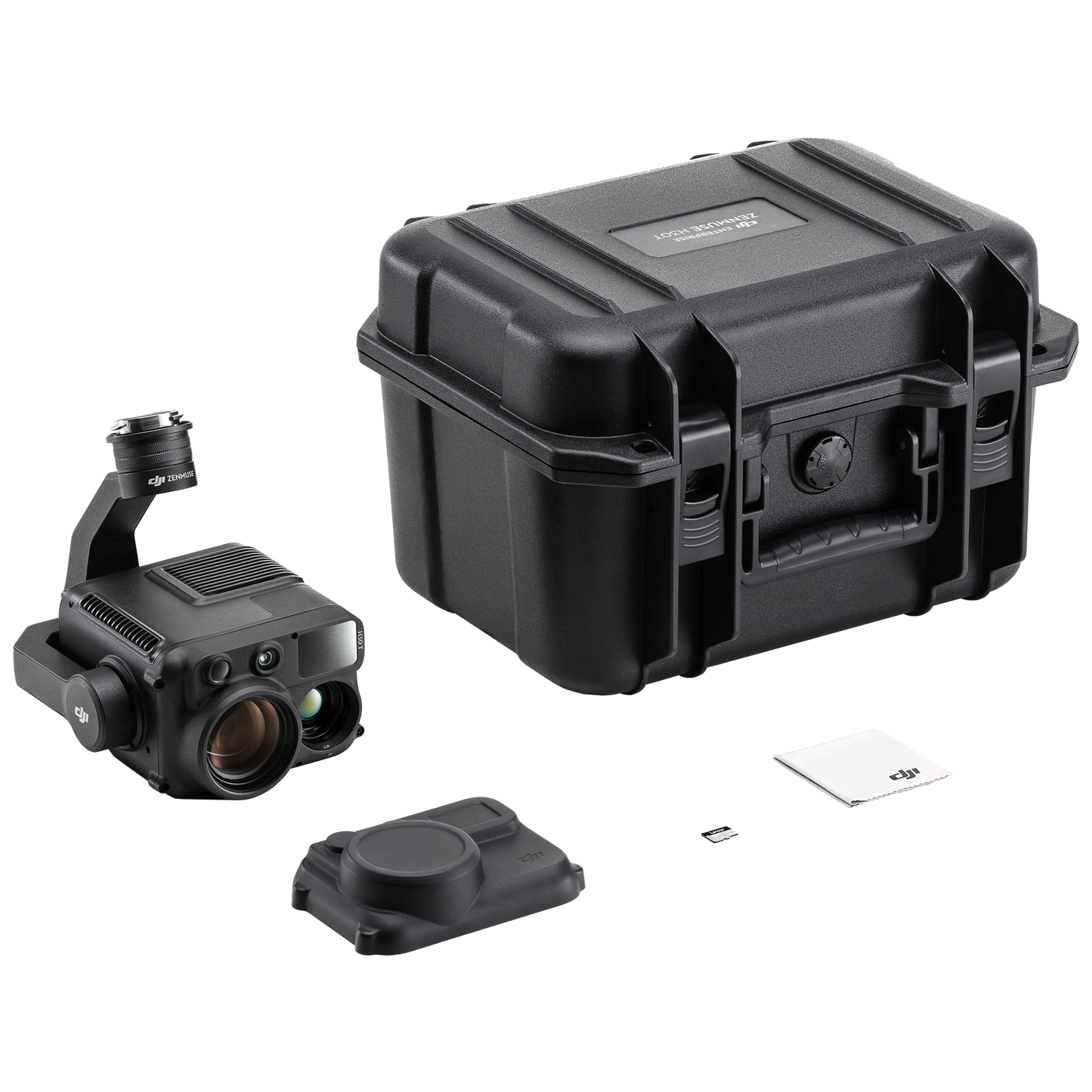

What's in the box?

• Zenmuse H30T × 1
• Lens Cap × 1
• microSD Card (64GB) × 1
• Storage Case × 1
• Lens Cleaning Cloth × 1



Specs

General

• Dimensions: 170×145×165 mm (L×W×H)
• Weight: 920±5 g
• Power: H30T: 28 W
• Ingress Protection Rating: IP54



Supported Aircraft

• Matrice 300 RTK (requires DJI RC Plus)
• Matrice 350 RTK



Environment

• Operating Temperature: -20° to 50° C (-4° to 122° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)



Gimbal

• Stabilization System: 3-axis (tilt, roll, pan)
• Angular Vibration Range: Hover: ±0.002° / Flight: ±0.004°
• Mounting: Detachable DJI SKYPORT
• Mechanical Range: Tilt: -132.5° to +73° / Roll: ±60° / Pan: ±328° (Structural limit, not controllable range)
• Controllable Range: Tilt: -120° to +60° Pan: ±320°
• Operation Mode: Follow/Free/Re-center



Zoom Camera

• Sensor: 1/1.8-inch CMOS, Effective Pixels: 40 MP
• Lens: Actual Focal Length: 7.1-172 mm (Equivalent focal length: 33.4-809.3 mm) / Aperture: f/1.6-f/5.2 / DFOV: 66.7°-2.9°
• Electronic Shutter Speed: 1/8000-2 s
• ISO Range: Single Shot: 100-25600 / Night Scene: 100-819200
• Video Resolution: Single Shot: 3840×2160@30fps, 1920×1080@30fps / Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
• Video Format: MP4
• Video Codec and Bit Rate Strategy: H.264, H.265 / CBR, VBR
• Max Photo Size: 7328×5496, 3664×2748
• Photo Format: JPG



Wide-Angle Camera

• Sensor: 1/1.3-inch CMOS, Effective Pixels: 48 MP
• Lens: Actual Focal Length: 6.72 mm (Equivalent focal length: 24 mm) / Aperture: f/1.7 / DFOV: 82.1°
• Electronic Shutter Speed: 1/8000-2 s
• ISO Range: Single Shot: 100-25600 / Night Scene: 100-409600
• Video Resolution: Single Shot: 3840×2160@30fps, 1920×1080@30fps / Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
• Video Format: MP4
• Video Codec and Bit Rate Strategy: H.264, H.265 / CBR, VBR
• Max Photo Size: 8064×6048, 4032×3024
• Photo Format: JPG



Infrared Thermal Camera (H30T)

• Thermal Imager: Uncooled VOx Microbolometer
• Lens: Focal Length: 24 mm (equivalent focal length: 52 mm) / Aperture: f/0.95 / DFOV: 45.2°
• Digital Zoom Equivalent: 32×
• Video Resolution: 1280×1024@30fps
• Video Format: MP4 Video Codec and Bit Rate Strategy: H264, H265 / CBR, VBR
• Photo Resolution: 1280×1024
• Photo Format: R-JPEG
• Pixel Pitch: 12 μm
• Spectral Band: 8-14 μm
• Noise Equivalent Temperature Difference (NETD): ≤ 50 mk@f/1.0
• Temperature Measurement Method: Spot Measurement, Area Measurement, Center Point Temperature Measurement Temperature Measurement Range: High Gain: -20° to 150° C (-4° to 302° F), -20° to 450° C (-4° to 842° F) (With Infrared Density Filter) / Low Gain: 0° to 600° C (32° to 1112° F), 0° to 1600° C (32° to 2912° F) (With Infrared Density Filter)
• Temperature Alert: Supported
• Sun Burn Protection: Supported
• FFC: Auto, Manual Palette: White Hot, Black Hot, Tint, Iron Red, Rainbow 1, Rainbow 2, Medical, Arctic, Fulgurite, Hot Iron



Laser Range Finder

• Wavelength: 905 nm
• Measurement Range: 3-3000 m
• Range for Common Objects: Grasslands 2000 m, woodlands 1900 m, road surfaces 1700 m‌*
• Measurement Accuracy: ≤ 500 m: ±(0.2 m+measurement distance×0.15%) / ‌> 500 m: ±1.0 m Laser Spot Size: @100 m: approx. 50×450 mm / @1000 m: approx. 450×4500 mm
• Safety Regulation Level: Class 1
• Accessible Emission Limit (AEL): 260 nJ
• Reference Aperture: 18 mm
• Max Laser Pulse Emission Power Within 5 Nanoseconds: 52 W



NIR Auxiliary Light

• Wavelength: 850 nm
• FOV: 4.6±0.6° (Round)
• Safety Regulation Level: Class 10
• Illumination Range: @100 m: Approx. 8m diameter circle
