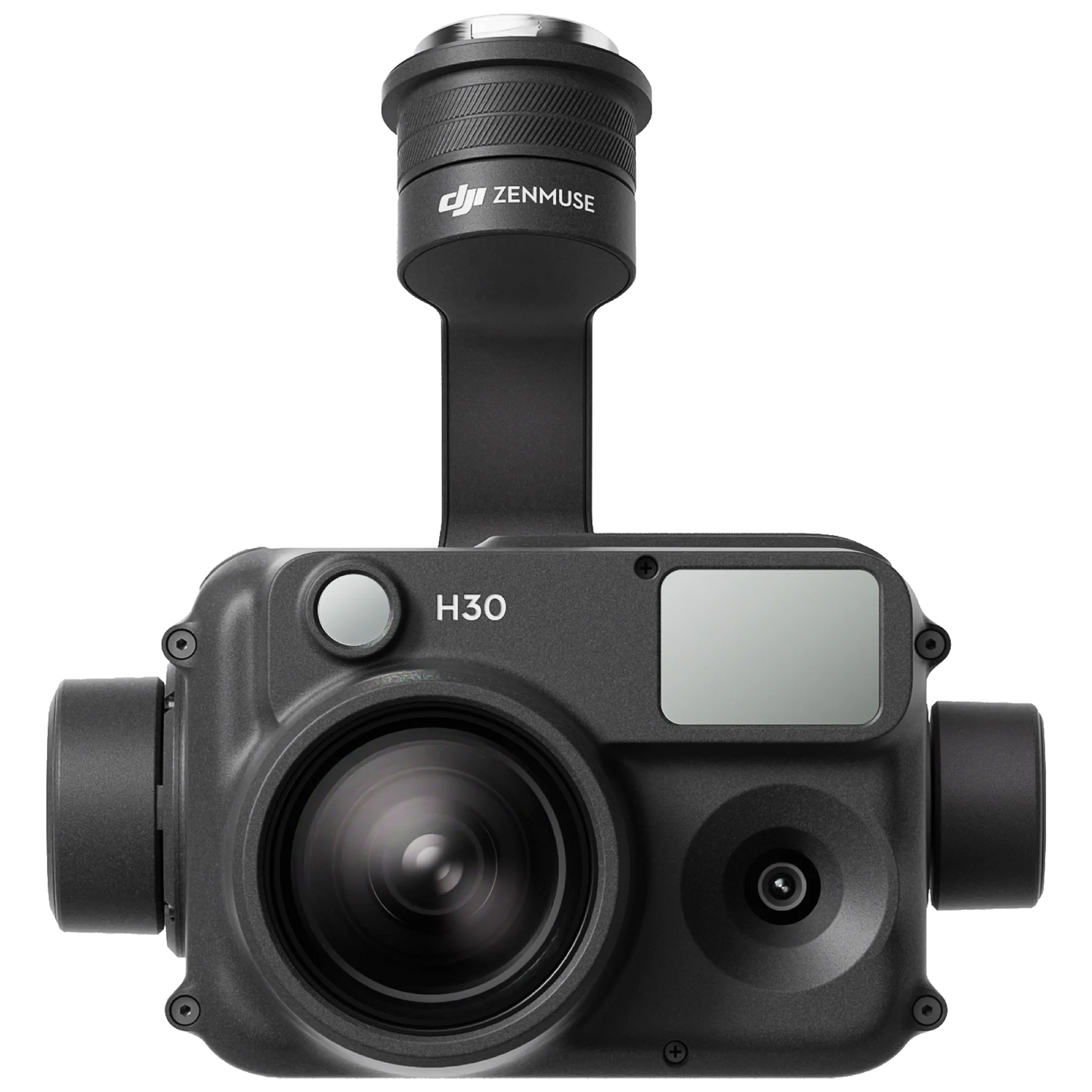

Zenmuse H30 (NA) SP

The all-weather, multi-sensor flagship Zenmuse H30 Series integrates major modules —a wide-angle camera, a zoom camera, a laser range finder, and an NIR auxiliary light. Employing cutting-edge intelligent algorithms, it revolutionizes perception and imaging standards, transcending the limitations of day and night vision. This makes it effortlessly suitable for a variety of operations including public safety, energy inspection, water conservation, and forestry.



Features

Compatibility:

• Matrice 300 RTK (requires DJI RC Plus)
• Matrice 350 RTK
• Further and Clearer ‌Vision
• 40MP zoom camera supports up to 34× optical zoom and 400× digital. 3000m max laser range finding distance is an approx. 2.5-times increase.



Enhanced Night Vision

• Zoom and wide camera support Night Scene mode to improve performance in low light. Zoom camera supports IR Light and NIR Illumination.



Powerful Infrared Performance

• 1280×1024 resolution is a 4x improvement. [3] UHR Infrared Image function [4] allows clear imaging at higher zoom. Max measurable temperature is 1600° C (2192° F), three times that of the previous generation.



Smart Multi-Scenario Operation

• Supports Smart Capture for detailed photos in dramatic lighting conditions. Electronic dehazing [6] improves imaging clarity in haze/fog etc.



Environmental Adaptability

• Dust and water resistance rated at IP54,[7] and operational from -20° to 50° C (-4° to 122° F), meeting all-weather operational demands.



What's in the box?

• Zenmuse H30 × 1
• Lens Cap × 1
• microSD Card (64GB) × 1
• Storage Case × 1
• Lens Cleaning Cloth × 1



Specs

General

• Dimensions: 170×145×165 mm (L×W×H)
• Weight: 920±5 g
• Power: H30: 26 W
• Ingress Protection Rating: IP54



Supported Aircraft

• Matrice 300 RTK (requires DJI RC Plus)
• Matrice 350 RTK



Environment

• Operating Temperature: -20° to 50° C (-4° to 122° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)



Gimbal

• Stabilization System: 3-axis (tilt, roll, pan)
• Angular Vibration Range: Hover: ±0.002° / Flight: ±0.004°
• Mounting: Detachable DJI SKYPORT
• Mechanical Range: Tilt: -132.5° to +73° / Roll: ±60° / Pan: ±328° (Structural limit, not controllable range)
• Controllable Range: Tilt: -120° to +60° Pan: ±320°
• Operation Mode: Follow/Free/Re-center



Zoom Camera

• Sensor: 1/1.8-inch CMOS, Effective Pixels: 40 MP Lens: Actual Focal Length: 7.1-172 mm (Equivalent focal length: 33.4-809.3 mm) / Aperture: f/1.6-f/5.2 / DFOV: 66.7°-2.9°
• Electronic Shutter Speed: 1/8000-2 s
• ISO Range: Single Shot: 100-25600 / Night Scene: 100-819200
• Video Resolution: Single Shot: 3840×2160@30fps, 1920×1080@30fps / Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
• Video Format: MP4
• Video Codec and Bit Rate Strategy: H.264, H.265 / CBR, VBR
• Max Photo Size: 7328×5496, 3664×2748
• Photo Format: JPG



Wide-Angle Camera

• Sensor: 1/1.3-inch CMOS, Effective Pixels: 48 MP
• Lens: Actual Focal Length: 6.72 mm (Equivalent focal length: 24 mm) / Aperture: f/1.7 / DFOV: 82.1°
• Electronic Shutter Speed: 1/8000-2 s
• ISO Range: Single Shot: 100-25600 / Night Scene: 100-409600
• Video Resolution: Single Shot: 3840×2160@30fps, 1920×1080@30fps / Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
• Video Format: MP4
• Video Codec and Bit Rate Strategy: H.264, H.265 / CBR, VBR
• Max Photo Size: 8064×6048, 4032×3024
• Photo Format: JPG



Laser Range Finder

• Wavelength: 905 nm
• Measurement Range: 3-3000 m
• Range for Common Objects: Grasslands 2000 m, woodlands 1900 m, road surfaces 1700 m‌*
• Measurement Accuracy: ≤ 500 m: ±(0.2 m+measurement distance×0.15%) / ‌> 500 m: ±1.0 m
• Laser Spot Size: @100 m: approx. 50×450 mm / @1000 m: approx. 450×4500 mm
• Safety Regulation Level: Class 1
• Accessible Emission Limit (AEL): 260 nJ
• Reference Aperture: 18 mm
• Max Laser Pulse Emission Power Within 5 Nanoseconds: 52 W



NIR Auxiliary Light

• Wavelength: 850 nm
• FOV: 4.6±0.6° (Round)
• Safety Regulation Level: Class 1
• Illumination Range: @100 m: Approx. 8m diameter circle
