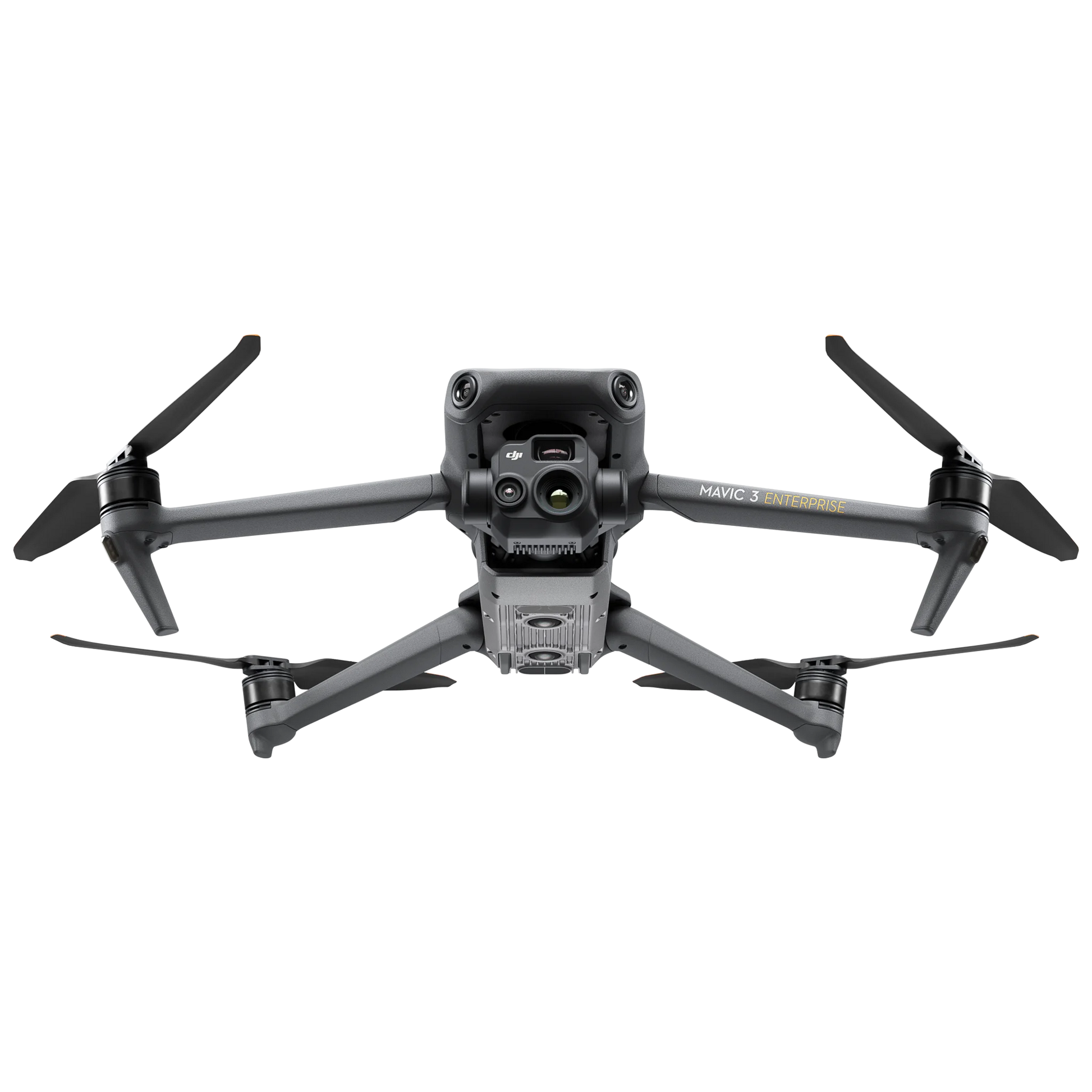

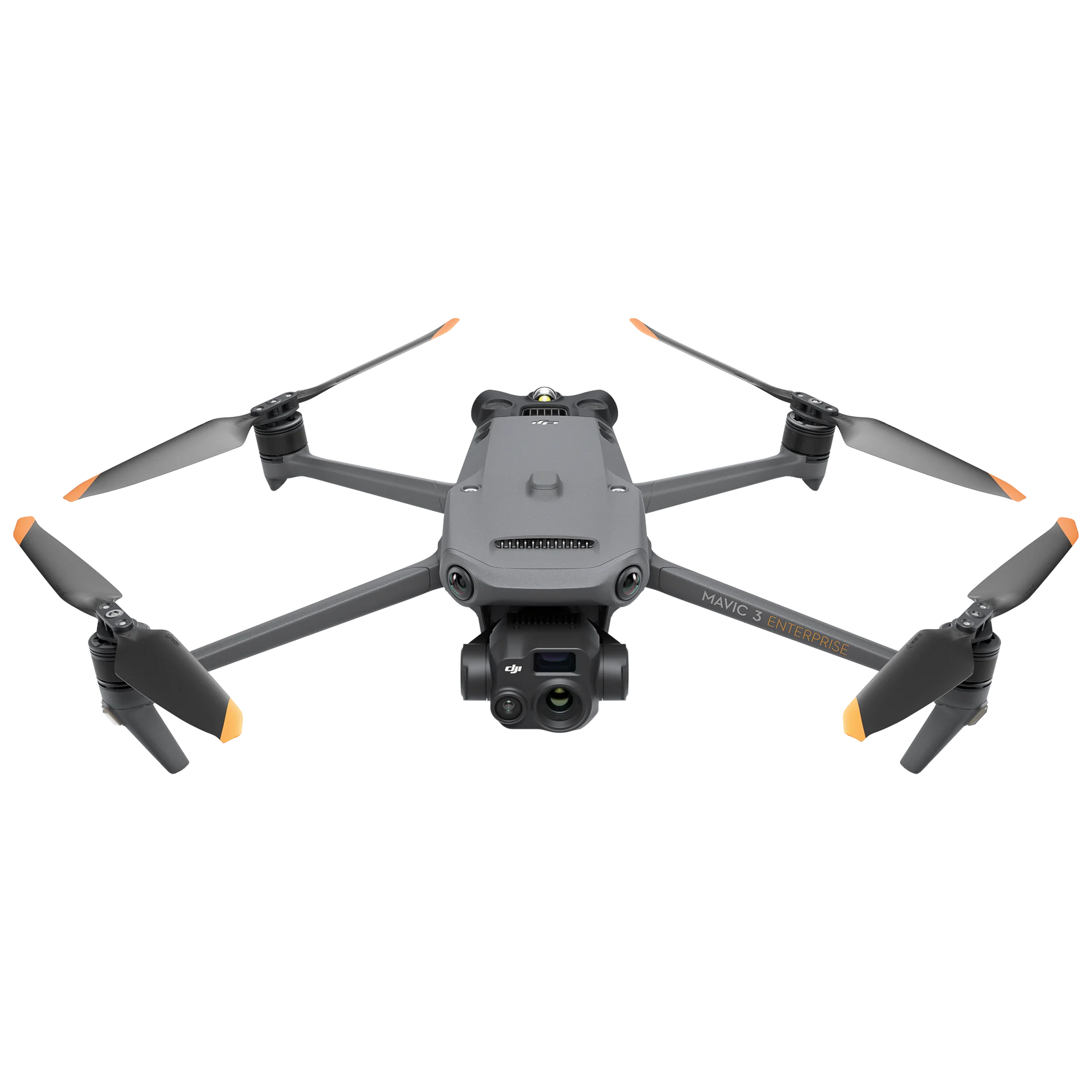

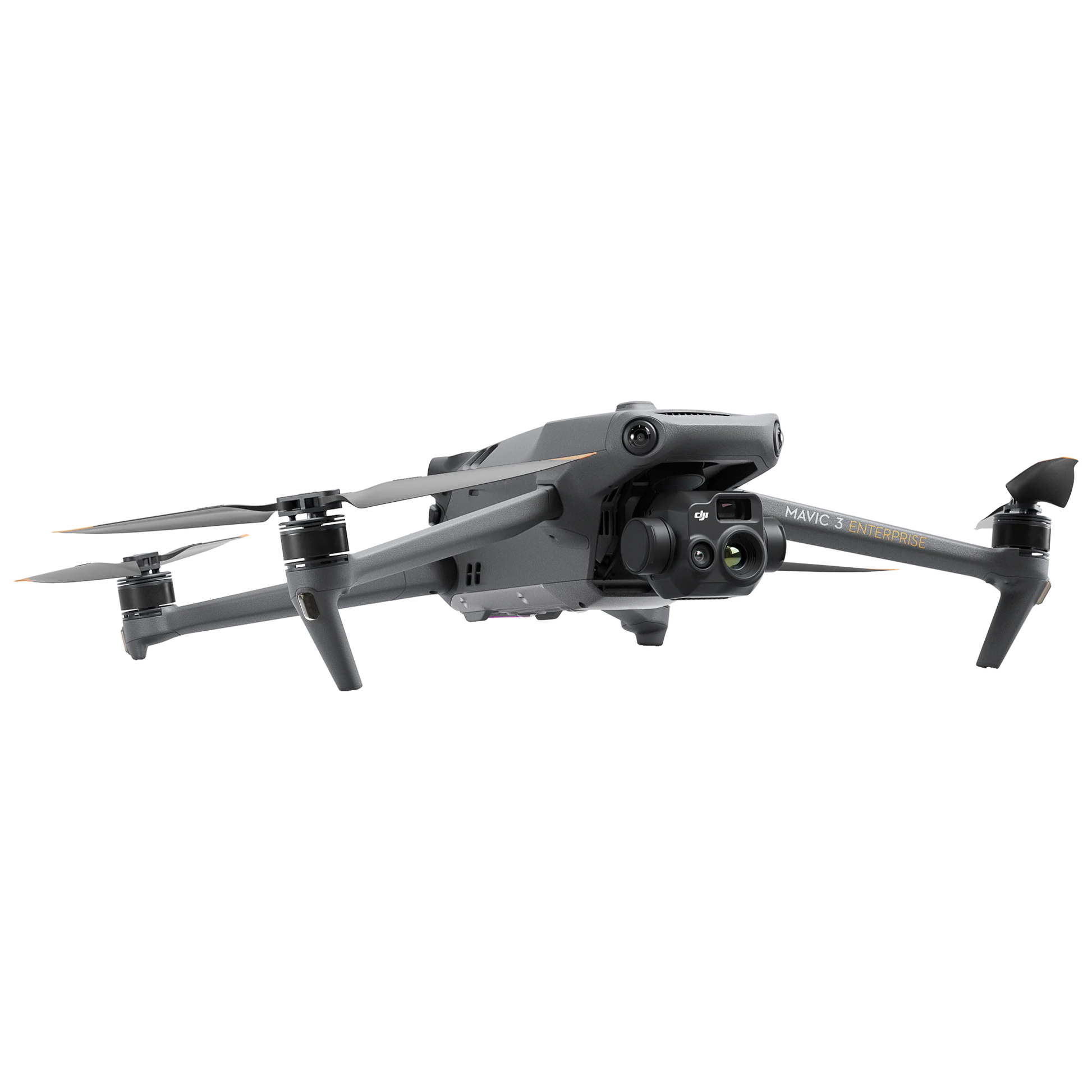

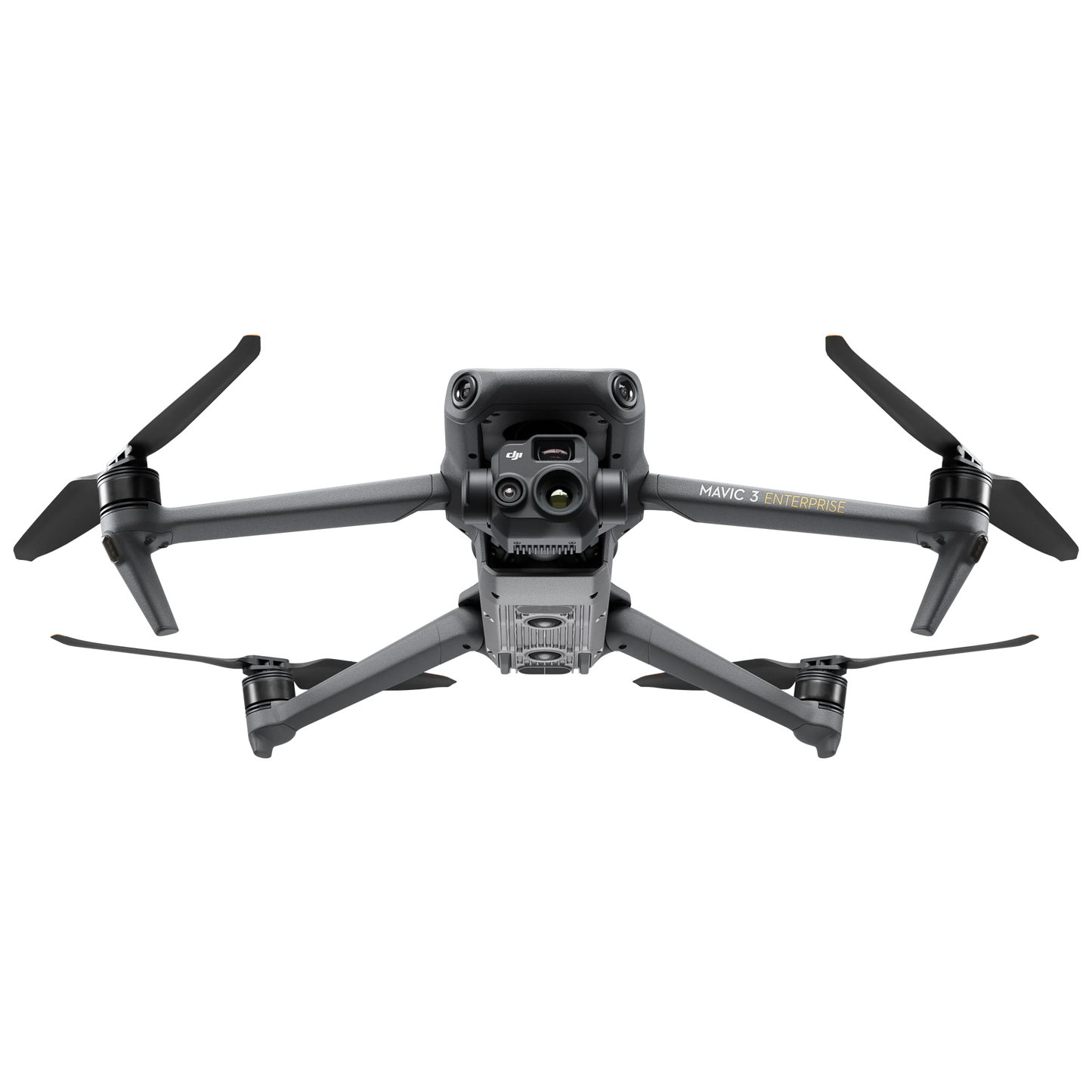

DJI Mavic 3T (thermal) - Shield Basic

The Mavic 3 Enterprise Series redefines industry standards for small commercial drones. With a mechanical shutter, a 56× zoom camera, and an RTK module for centimeter-level precision, the Mavic 3T brings mapping and mission efficiency to new heights with a thermal version for firefighting, search and rescue, inspection, and night operations.



Features

Premium Camera Performance Mavic 3T's thermal camera has 640 × 512 resolution and supports point and area temperature measurement, high temperature alerts, color palettes, and isotherms to help you find your targets and make quick decisions Exceptional Operational Efficiency Open Developer Ecosystem Simultaneous Split-Screen Zoom



What's in the box?

• 1x Mavic 3 Thermal Aircraft
• 1x Mavic 3 Intelligent Flight Battery
• 1x 64GB microSD Card
• 1x Gimbal Protector
• 3x Mavic 3 Enterprise Series Propellers (Pair)
• 1x DJI RC Pro Enterprise
• 1x Screwdriver
• 1x USB-C Power Adapter (100W)
• 1x 100W Power Adapter AC Cable
• 1x USB-C to USB-C Cable
• 1x Protector Case Shield Basic



Specs

• Weight (with propellers, without accessories): 920 g
• Dimensions: Folded (without propellers): 221×96.3×90.3 mm (L×W×H) / Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
• Diagonal Distance: 380.1 mm
• Max Ascent Speed: 6 m/s (Normal Mode) / 8 m/s (Sport Mode)
• Max Descent Speed: 6 m/s (Normal Mode) / 6 m/s (Sport Mode)
• Max Flight Speed (at sea level, no wind): 15 m/s (Normal Mode) / Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode)
• Max Wind Speed Resistance: 12 m/s [3]
• Max Take-off Altitude Above Sea Level: 6000 m (without payload)
• Max Flight Time (no wind): 45 mins [4] Max Hover Time (no wind): 38 mins
• Max Flight Distance: 32 km GNSS: GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled)
• Hovering Accuracy: Vertical: ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK) / Horizontal: ±0.3 m (with Vision System); ±0.5 m (with High-Precision Positioning System); ±0.1 m (with RTK)
• Operating Temperature Range: -10° to 40° C (14° to 104° F)



Wide Camera

• Sensor: 1/2-inch CMOS, Effective pixels: 48 MP
• Lens:FOV: 84° / Format Equivalent: 24 mm / Aperture: f/2.8 / Focus: 1 m to ∞
• ISO Range: 100-25600
• Shutter Speed: Electronic Shutter: 8-1/8000 s
• Max Image Size: 8000×6000
• Video Resolution: H.264 / 4K: 3840×2160@30fps / FHD: 1920×1080@30fps Bitrate: 4K: 85 Mbps / FHD: 30 Mbps
• Photo Format: JPEG
• Video Format: MP4 (MPEG-4 AVC/H.264)



Tele Camera

• Sensor: 1/2-inch CMOS, Effective pixels: 12 MP
• Lens: FOV: 15° / Format Equivalent: 162 mm / Aperture: f/4.4 /
• Focus: 3 m to ∞ ISO Range: 100-25600
• Shutter Speed: Electronic Shutter: 8-1/8000 s
• Max Image Size: 4000×3000
• Photo Format: JPEG Video Format: MP4 (MPEG-4 AVC/H.264)
• Video Resolution: H.264 / 4K: 3840×2160@30fps / FHD: 1920×1080@30fps Bitrate: 4K: 85 Mbps / FHD: 30 Mbps Digital Zoom: 8x (56x hybrid zoom)



Thermal Camera

• Thermal Imager: Uncooled VOx Microbolometer
• Pixel Pitch: 12 μm
• Frame Rate: 30 Hz
• Lens: DFOV: 61° / Format Equivalent: 40 mm / Aperture: f/1.0 / Focus: 5 m to ∞
• Noise Equivalent Temperature Difference (NETD): ≤50 mK@F1.0 Temperature Measurement Method: Spot Meter, Area Measurement
• Temperature Measurement Range: -20° to 150° C (-4° to 302° F, High Gain Mode) / 0° to 500° C (32° to 932° F, Low Gain Mode)
• Palette: White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
• Photo Format: JPEG (8-bit) / R-JPEG (16-bit)
• Video Resolution: 640×512@30fps Bitrate: 6 Mbps Video Format: MP4 (MPEG-4 AVC/H.264)
• Digital Zoom: 28x
• Infrared Wavelength: 8-14 μm
• Infrared Temperature Measurement Accuracy: ±2° C or ±2% (using the larger value)



Gimbal

• Stabilization: 3-axis (tilt, roll, pan)
• Mechanical Range: Tilt: -135° to 100° / Roll: -45° to 45° / Pan: -27° to 27°
• Controllable Range: Tilt: -90° to 35° / Pan: Not controllable



Battery

• Capacity: 5000 mAh
• Standard Voltage: 15.4 V
• Max Charging Voltage: 17.6 V
• Type: LiPo 4S
• Chemical System: LiCoO2
• Energy: 77 Wh
• Weight: 335.5 g
• Charging Temperature: 5° to 40° C (41° to 104° F)
