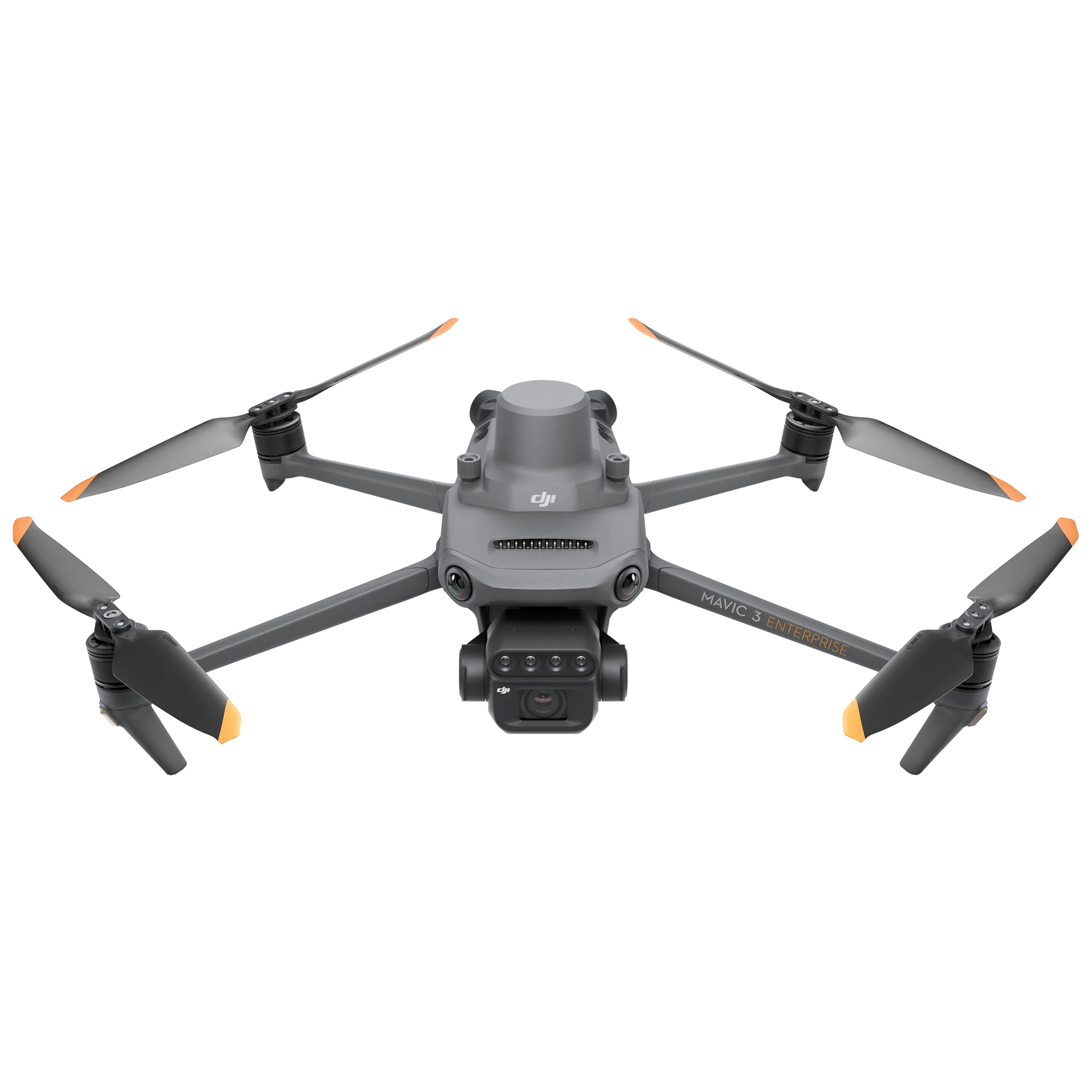

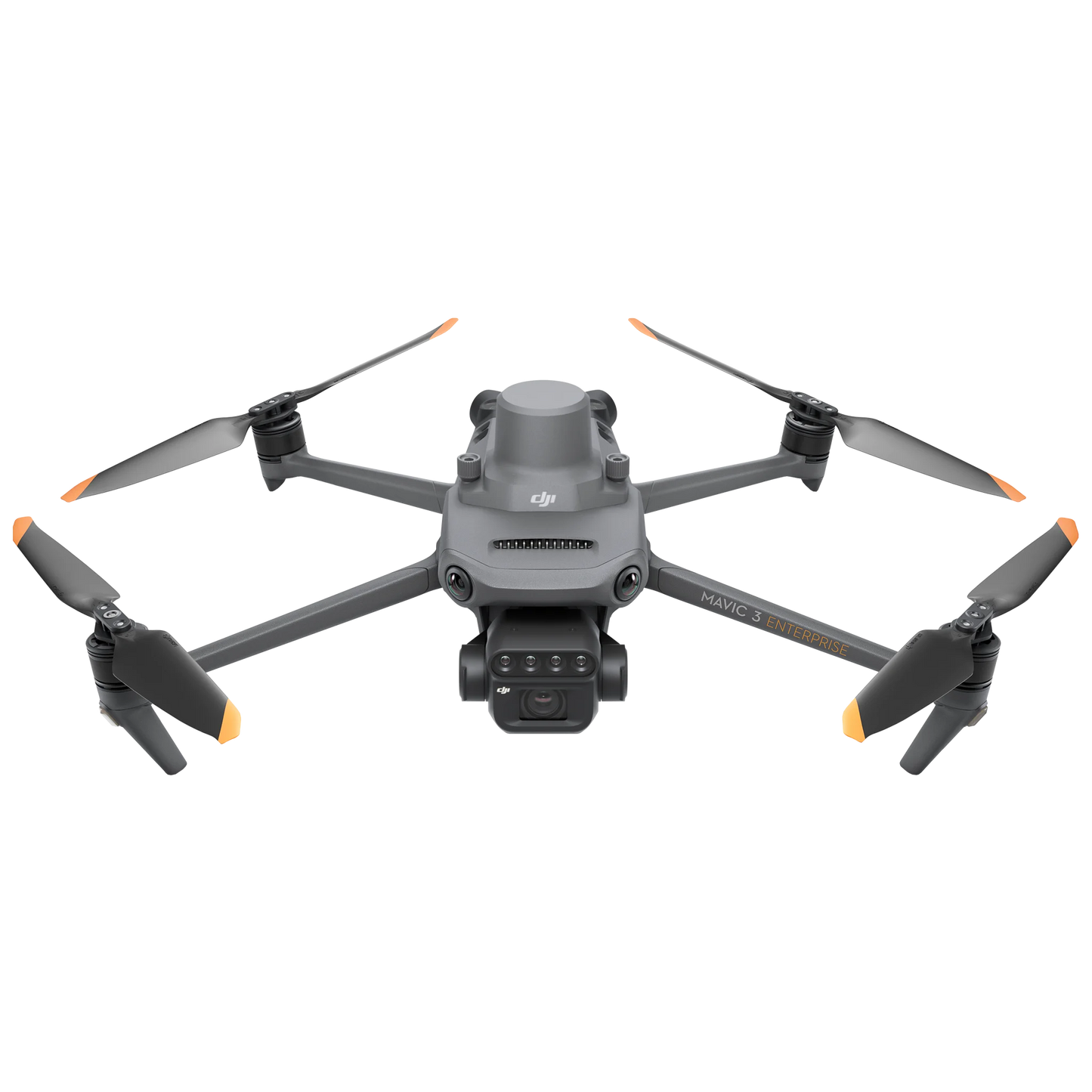

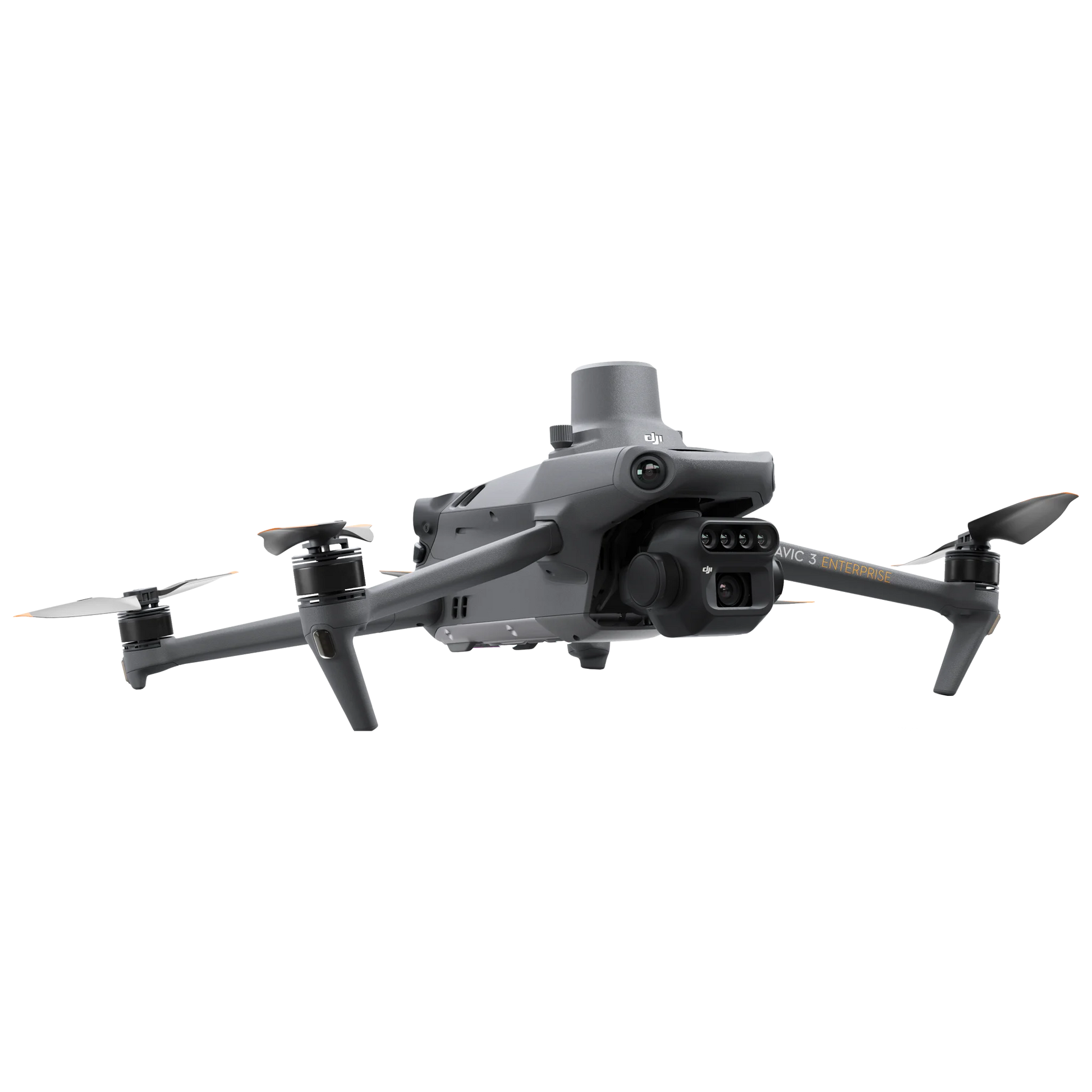

DJI Mavic 3M (muiltispectral) - Shield Basic

Effective aerial surveying needs to see the invisible. That's why Mavic 3 Multispectral has two forms of sight. It combines an RGB camera with a multispectral camera to scan and analyze crop growth with total clarity. Agricultural production management requires precision and data, and Mavic 3M delivers both.



Features

• Multispectral Camera
• RGB Camera
• Precise Positioning
• Safe and Stable
• Efficient Aerial Surveying
• Compact and Portable



What's in the box?

• 1 x DJI Mavic 3 Multispectral Aircraft with RTK Module
• 1 x Remote Controller
• 3 x Propeller Pair
• 1 x Charger
• 1 x Carrying Case
• 1 x USB-C to USB-C Cable
• 1 x Power Cable
• 1 x USB-C Cable
• 1 x Screwdriver Manuals Shield Basic



Specs

• Weight (with propellers, without accessories): 915 g

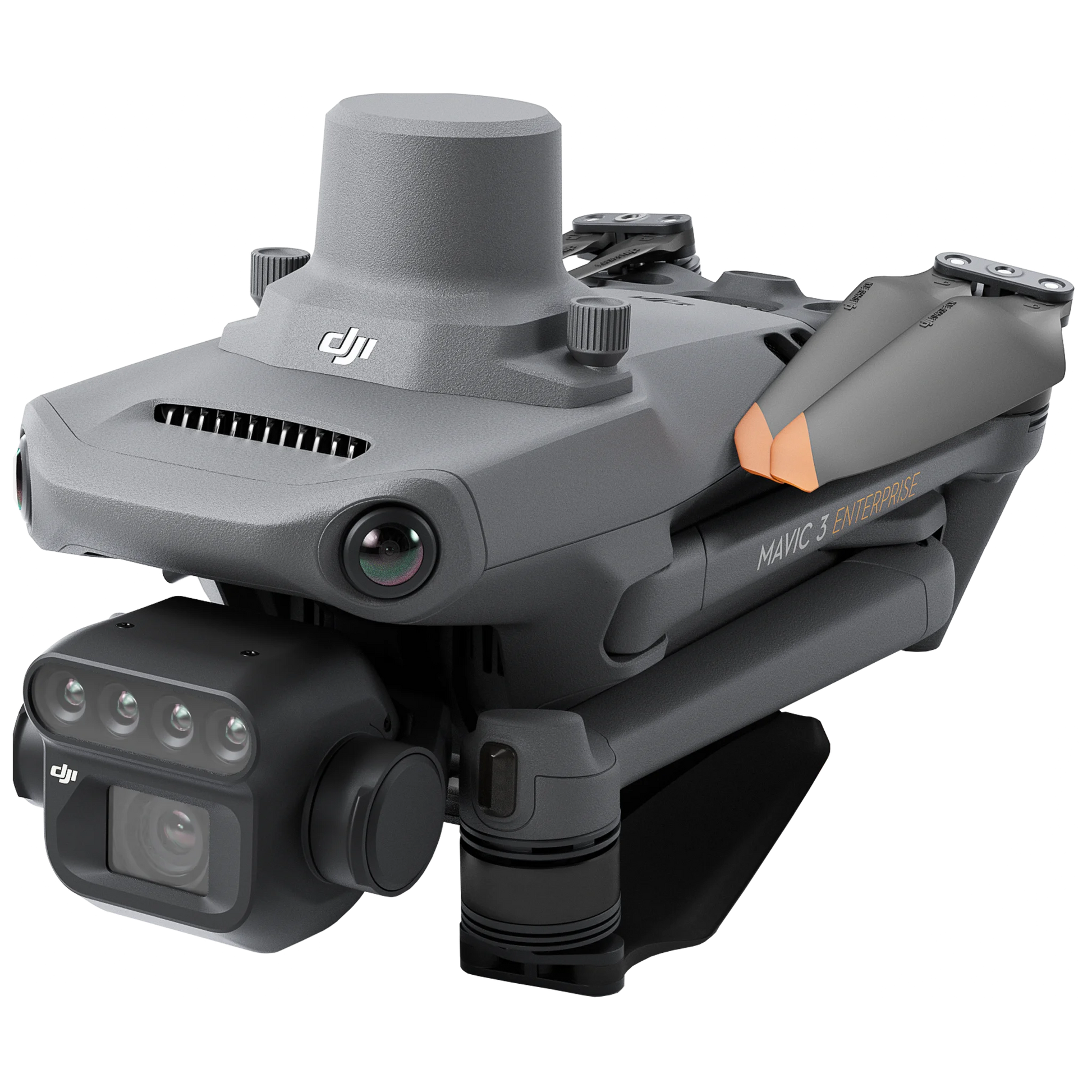

• Dimensions: Folded (without propellers): 221×96.3×90.3 mm (L×W×H) / Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
• Diagonal Distance: 380.1 mm
• Max Ascent Speed: 6 m/s (Normal Mode) / 8 m/s (Sport Mode)
• Max Descent Speed: 6 m/s (Normal Mode) / 6 m/s (Sport Mode)
• Max Flight Speed (at sea level, no wind): 15 m/s (Normal Mode) / Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode)
• Max Wind Speed Resistance: 12 m/s [3]
• Max Take-off Altitude Above Sea Level: 6000 m (without payload)
• Max Flight Time (no wind): 45 mins [4]
• Max Hover Time (no wind): 38 mins
• Max Flight Distance: 32 km
• GNSS: GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled)
• Hovering Accuracy: Vertical: ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK) / Horizontal: ±0.3 m (with Vision System); ±0.5 m (with High-Precision Positioning System); ±0.1 m (with RTK)
• Operating Temperature Range: -10° to 40° C (14° to 104° F)



Wide Camera

• Sensor: 4/3 CMOS, Effective pixels: 20 MP
• Lens: FOV: 84° / Format Equivalent: 24 mm / Aperture: f/2.8-f/11 / Focus: 1 m to ∞
• ISO Range: DJI Mavic 3E: 100-6400
• Shutter Speed: Electronic Shutter: 8-1/8000 s / Mechanical Shutter: 8-1/2000 s
• Video Resolution: H.264 / 4K: 3840×2160@30fps / FHD: 1920×1080@30fps



Tele Camera

• Sensor: 1/2-inch CMOS, Effective pixels: 12 MP
• Lens: FOV: 15° / Format Equivalent: 162 mm / Aperture: f/4.4 / Focus: 3 m to ∞
• ISO Range: 100-6400
• Shutter Speed: Electronic Shutter: 8-1/8000 s
• Max Image Size: 4000×3000
• Photo Format: JPEG
• Video Format: MP4 (MPEG-4 AVC/H.264)
• Video Resolution: H.264 / 4K: 3840×2160@30fps / FHD: 1920×1080@30fps
• Digital Zoom: 8x (56x hybrid zoom)



Gimbal

• Stabilization: 3-axis (tilt, roll, pan)
• Mechanical Range: Tilt: -135° to 100° / Roll: -45° to 45° / Pan: -27° to 27°
• Controllable Range: Tilt: -90° to 35° / Pan: Not controllable



Battery

• Capacity: 5000 mAh
• Standard Voltage: 15.4 V
• Max Charging Voltage: 17.6 V
• Type: LiPo 4S
• Chemical System: LiCoO2
• Energy: 77 Wh
• Weight: 335.5 g
• Charging Temperature: 5° to 40° C (41° to 104° F)
