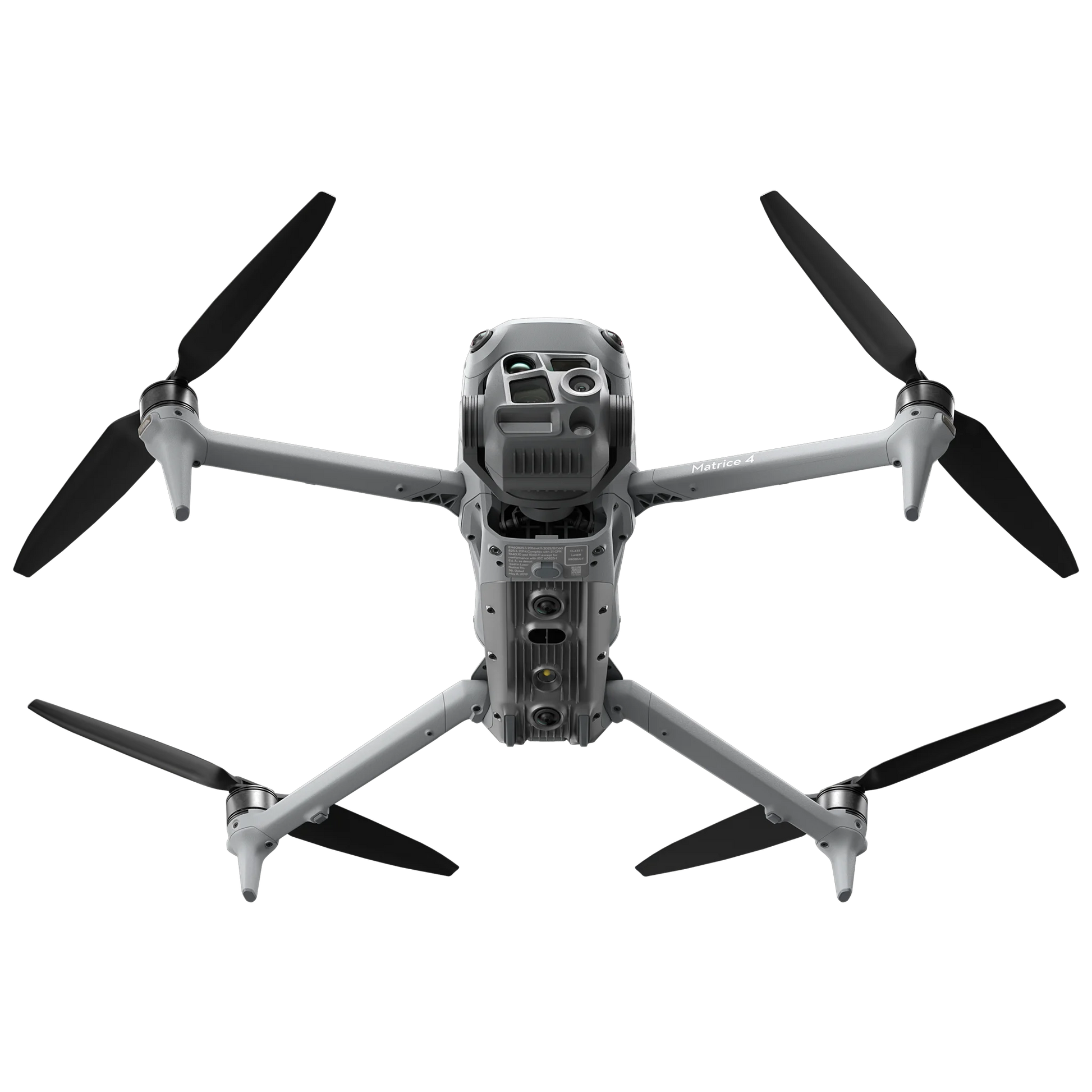

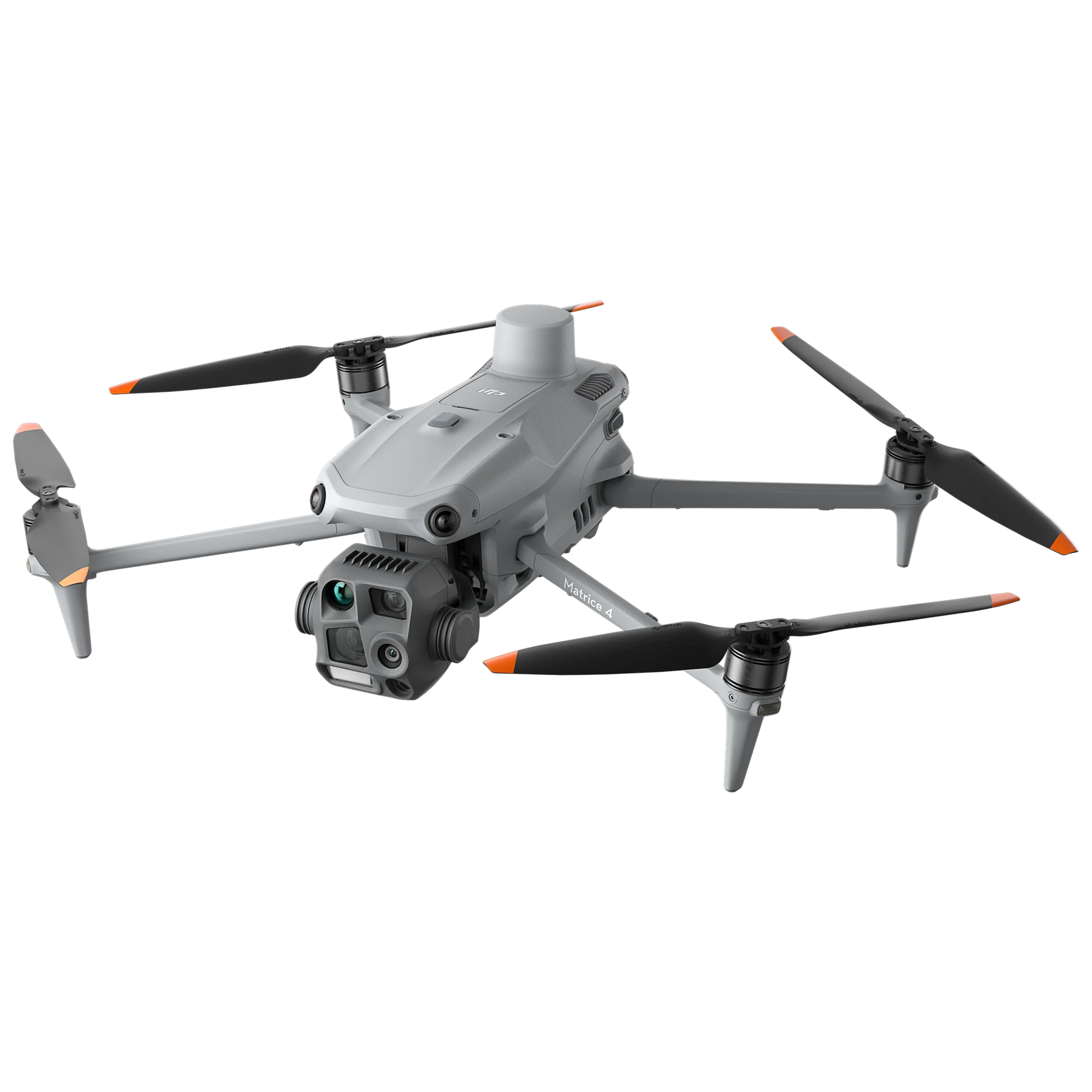

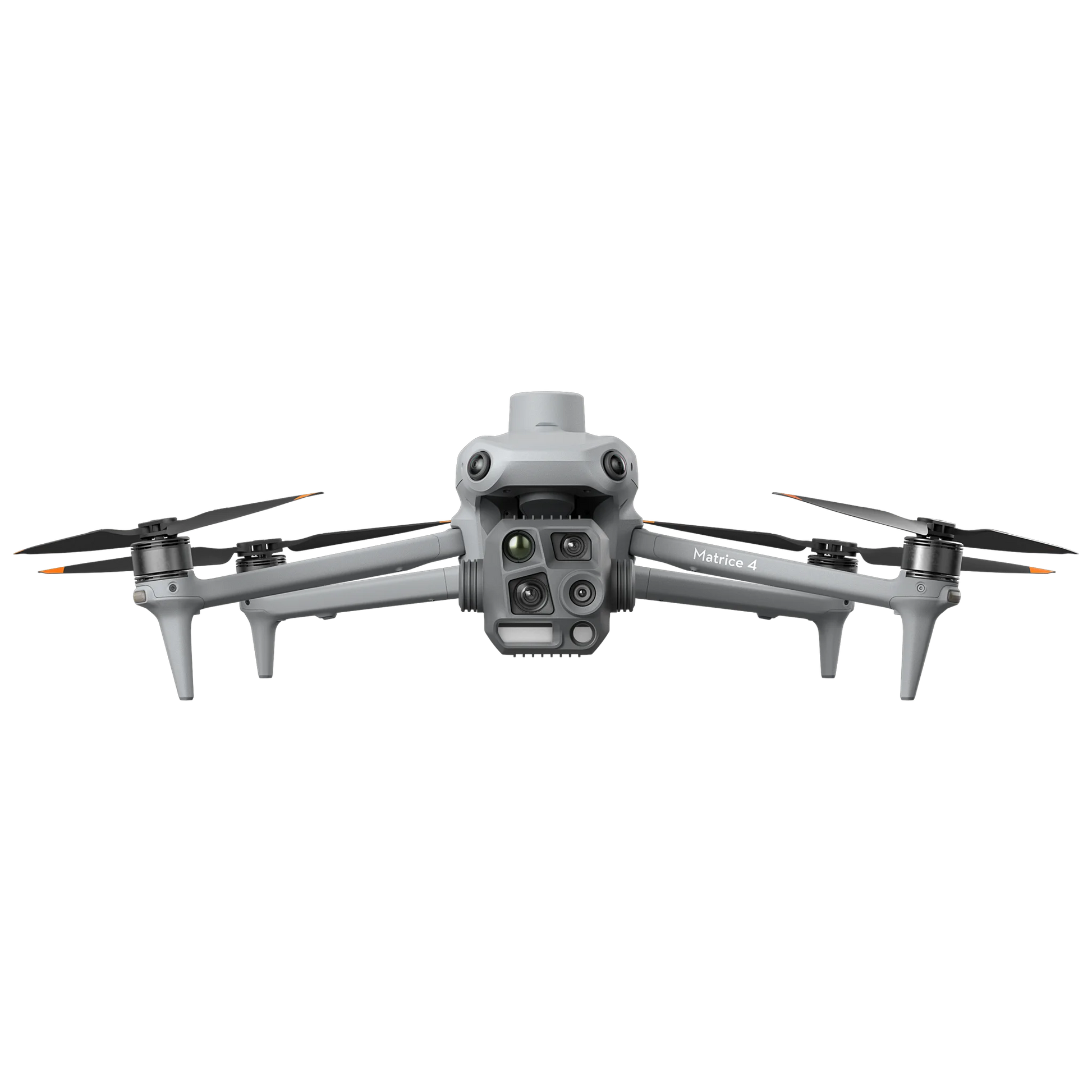

DJI - Matrice 4T

The DJI Matrice 4T can serve various industries, from emergency response and public safety to energy management. The infrared thermal camera supports High-Res Mode up to 1280x1024 pixels, while the NIR auxiliary light can illuminate distances 100 meters away. Other notable modules include a 24mm wide-angle lens (1/1.3 CMOS, 48MP, f/1.7) and an IR-Cut Filter for clear visuals day and night.

Features

AI Empowered: Built-in AI model can detect human, vehicles, cars during drone

operation, AI computing capability is also open for 3rd party industry application platform development. Laser ranger finder supports precise measurement, including distance range detection and target coordinate measurement, pinpoint, line drawing, area calculation. Observed view to highlight ground area observe.

Multi-sensors: 6 sensors in 1 compact aircraft. including wide camera, medium tele camera, tele camera, laser ranger finder, Infrared Thermal Camera, NIR Auxiliary Light. 112x maximum zoom can see the car plate from 250m away. UHR Infrared Image provides superior thermal image quality. Full-color view and black-and-white view improve the live view quality and clarity in low light environments. Foreground Stabilization and electronic dehazing make inspection image more stable and clearer.

Safer Flight: Anti - GNSS - Interference and vision positioning enable M4T to operate safely in low - GNSS and low light environment. 25km FCC transmission range.

Bigger and Smarter RC:7.02-inch and 1400 nits RC Plus 2 make it easier for pilot to operate and control aircraft. RC Plus 2 support Pilot 2 APP and FlightHub2 cloud synchronization.

What's in the box?

• DJI Matrice 4T Enterprise Drone


Specs

Aircraft

Takeoff Weight (with propellers): 1219 g

Takeoff Weight (with Low-Noise propellers):1229 g

Max Takeoff Weight: Standard Propellers: 1420 g / Low-Noise Propellers: 1430 g

Dimensions: Folded: 260.6×113.7×138.4 mm (L×W×H) / Unfolded: 307.0×387.5×149.5 mm (L×W×H)

Max Payload: 200 g

Propeller Size: 10.8 in

Diagonal Wheelbase: 438.8 mm

Max Ascent Speed: 10 m/s

Maximum Ascent Speed with Accessories: 6 m/s

Max Descent Speed: 8 m/s

Max Descent Speed with Accessories: 6 m/s

Max Horizontal Speed (at sea level, no wind): 21 m/s / 21 m/s flying forward, 18 m/s flying backward, 19 m/s flying sideways

Max Altitude: 6000 m

Max Operating Altitude with Payload: 4000 m

Max Flight Time (without wind): 49 min (standard propellers) / 46 min (low-noise propellers)

Max Hover Time (without wind): 42 min (standard propellers) / 39 min (low-noise propellers)

Max Flight Distance (no wind): 35 km (standard propellers) / 32 km (low-noise propellers)

Max Wind Speed Resistance: 12 m/s*

Max Pitch Angle: 35°

Operating Temperature: -10℃ to 40℃ (14°F to 104°F)

GNSS: GPS + Galileo + BeiDou + GLONASS*

Hovering Accuracy Range (windless or breezy): ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)

RTK GNSS Accuracy: RTK Fix: 1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)

Propeller Model: 1157F (standard propellers) / 1154F (low noise propeller)

Beacon: Built into the aircraft



Camera



Image Sensor: Wide: 1/1.3-inch CMOS, Effective Pixels: 48 MP / Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP / Telephoto: 1/1.5-inch CMOS, Effective Pixels: 48 MP
Lens: FOV: 82° / Equivalent Focal Length: 24 mm / Aperture: f/1.7 / Focus: 1 m to ∞
Medium Tele Camera: FOV: 35° / Equivalent Focal Length: 70 mm / Aperture: f/2.8
Focus: 3 m to ∞
Tele camera: FOV: 15° / Equivalent Focal Length: 168 mm / Aperture: f/2.8 / Focus: 3 m to ∞

ISO Range: Normal Mode: ISO 100 to ISO 25600 / Night Scene Mode: Wide Camera: ISO 100 to ISO 409600 / Medium Tele Camera: ISO 100 to ISO 409600 / Tele Camera: ISO 100 to ISO 819200

Shutter Speed: 2-1/8000 s
Max Photo Size: Wide: 8064 × 6048 / Medium Telephoto: 8064 × 6048 / Telephoto: 8192 × 6144

Minimum Photo Interval: 0.7 s

Still Photography Modes:

Wide: / Single: 12 MP/48 MP / Interval: 12 MP/48 MP / JPEG：0.7/1/2/3/5/7/10/15/20/30/60 s / Smart Shooting:12MP / Panorama: 12 MP (raw image);100 MP (stitched image)
Medium Tele Camera: Single: 12 MP and 48 MP / Interval: 12 MP/48 MP / JPEG：0.7/1/2/3/5/7/10/15/20/30/60 s / Smart Shooting: 12MP
Telephoto: Single: 12 MP and 48 MP / Interval: 12 MP/48 MP / JPEG：0.7/1/2/3/5/7/10/15/20/30/60 s / Smart Shooting：12MP
Video Codec and Resolution: Video Coding Format: H.264/H.265 / Coding Strategy: CBR, VBR / Resolution: 4K: 3840 × 2160@30fps FHD: 1920 × 1080@30fps

Max Video Bitrate: H.264: 60Mbps / H.265: 40Mbps

Supported File System: exFAT

Photo Format: JPEG
Video Format: MP4 (MPEG-4 AVC/H.264)

Digital Zoom: Telephoto: 16x (112x hybrid zoom)



NIR Auxiliary Light:

Infrared Illumination: FOV: 5.7°±0.3°



Laser Module

Laser Range finding:

Measurement Range: 1800 m (1 Hz) @20% reflectivity target* / Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz) / Blind Zone: 1 m
Distance Measurement Accuracy: 1-3 m: System Error <0.3 m, Random Error <0.1 meters @1σ / Other Distances: ±(0.2+0.0015D) (D represents the measurement distance in meters)



Infrared Thermal Camera

Thermal Imager: Uncooled vanadium oxide (VOx)

Resolution: 640 × 512

Pixel Pitch: 12 μm

Frame Rate: 30 Hz

Lens: DFOV: 45°±0.3° / equivalent focal length: 53 mm / Aperture: f/1.0  / Focus: 5 m to ∞

Sensitivity: ≤50mk@F1.0

Temperature Measurement Method: Spot Meter, Area Measurement

Temperature Measurement Range: High Gain Mode: -20℃ to 150℃ (-4°F to 302°F) () / Low Gain Mode: 0℃ to 550℃ (32°F to 1022°F)

Palette: White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2

Photo Format: JPEG (8bit), R-JPEG (16bit)

Video Resolution: 1280 × 1024@30fps (Super Resolution enabled, Night Mode not activated) / Other conditions: 640 × 512@30fps

Video Bitrate: 6.5Mbps (H.264 640 × 512@30fps) / 5Mbps (H.265 640 × 512@30fps) / 12Mbps (H.264 1280 × 1024@30fps) / 8Mbps (H.265 1280 × 1024@30fps)

Video Format: MP4

Photo Resolution: Infrared: 1280 × 1024 (Super Resolution on) / 640 × 512 (Super Resolution off)

Digital Zoom: 28x

Infrared Wavelength: 8um to 14um

Infrared Temperature Measurement Accuracy: High Gain: ±2℃ or ±2%, whichever is greater / Low Gain: ±5℃ or ±3%, whichever is greater



Gimbal

Stabilization System: 3-axis (tilt, roll, pan)
Mechanical Range:

Gimbal Mechanical Limits: Tilt: -140° to 113° / Roll: -52° to 52° / Pan: -65° to 65°

Soft Limits: Tilt: -90° to 35° / Roll: -47° to 47° / Pan: -60° to 60°

Controllable Rotation Range: Pan: ±-90° to 35° / Pan: Not controllable

Ingress Protection Rating: No Standard Protection Level

Operating Temperature: Standard: -10°C to 40°C (14°F to 104°F)



Video Transmission

Video Transmission System: O4 Enterprise

Live View Quality: Remote Controller: 1080p/30fps

Operating Frequency: 2.400-2.4835 GHz / 2.400-2.4835 GHz / 5.725-5.850 GHz / 5.150-5.250 GHz (CE)

Transmitter Power (EIRP): 2.4 GHz: ≤33 dBm (FCC), ≤20 dBm (CE/SRRC/MIC) / 5.8 GHz: <33 dBm (FCC), <30 dB (SRRC) , <14 dBm (CE) / 5.15-5.25: < 23 dBm (FCC/CE)

Max Transmission Distance (unobstructed, free of interference): 25 km (FCC) / 12 km (CE) / 12 km (SRRC) / 12 km (MIC)

Max Transmission Distance (with interference): Strong Interference - City Centers (approx. 1.5-5 km) / Medium Interference - Suburban Areas (approx. 5-15 km) / Micro interference：Suburbs/Seasides (approx. 15-25 km)

Max Download Speed: 20 MB/s
Latency (depending on environmental conditions and mobile device): 130 ms
Antenna: 8 antennas, 2T4R

Others: Cellular Dongle Compartment



Memory Card

Supported SD Cards: U3/Class10/V30 or above is required, or use a memory card from the recommended list.

Recommended microSD Cards: Lexar 1066x 64GB U3 A2 V30 microSDXC / Lexar 1066x 128GB U3 A2 V30 microSDXC / Lexar 1066x 256GB U3 A2 V30 microSDXC / Lexar 1066x 512GB U3 A2 V30 microSDXC / Kingston Canvas GO! Plus 64GB U3 A2 V30 microSDXC / Kingston Canvas GO! Plus 128GB U3 A2 V30 microSDXC / Kingston Canvas GO! Plus 256GB U3 A2 V30 microSDXC / Kingston Canvas GO! Plus 512GB U3 A2 V30 microSDXC



Intelligent Flight Battery

Capacity: 6741 mAh

Standard Voltage: 14.76 V

Max Charging Voltage: 17.0 V

Cell Type: Li-ion 4S

Energy: 99.5 Wh

Weight: 401 g

Recharging Temperature: 5°C to 40°C (41°F to 104°F)

Discharge Rate: 4C

Max Charging Power: 1.8C

Supports low-temperature charging: Not supported

Cycle Count: 200



Power Adapter (100W)

Input: 100-240 V (AC), 50-60 Hz, 2.5 A

Output: Max. 100 W (total)

Rated Power: 100 W



Charging Hub

Input: USB-C：5-20 V, max 5 A

Output: Battery Interface: 11.2 V to 17 V

Rated Power: 100 W

Recharging Type: 4 batteries charging in sequence / Support Standard Mode (100% SOC) and Standby Mode (90% SOC)

Compatible Battery: DJI Matrice 4E/T Series Intelligent Flight Battery

Charging Temperature: 5° to 40° C (41°F to 104°F)



DJI RC Plus 2 Enterprise

Video Transmission System: O4 Enterprise

Max Transmission Distance (unobstructed, free of interference): 25 km (FCC) / 12 km (CE) / 12 km (SRRC) / 12 km (MIC)

Operating Band of Image Transmission: 2.4000-2.4835 GHz / 5.725 - 5.850 GHz / 5.1GHz (receive only)

Antenna: 2T4R, built-in multi-beam high-gain antenna

Video Transmission Transmitter Power (EIRP): 2.4 GHz: ＜33 dBm (FCC), ＜20 dBm (CE/SRRC/MIC) / 5.1 GHz: <23 dBm (CE) / 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)

4G Transmission: DJI Cellular Dongle 2

Screen Resolution: 1920 × 1200

Screen Size: 7.02 inches

Screen Frame Rate: 60 fps

Brightness: 1400 nits

Touchscreen Control: 10 Points Multi-touch

Built-in Battery: 2S2P High Energy Density 18650 Lithium-ion Battery (6500 mAh @ 7.2 V) 46.8 Wh

External Battery: Optional, WB37 (4920 mAh @ 7.6 V) 37 Wh

Recharging Type: Supports PD fast charging, with a maximum specification of 20 V/3.25 A USB Type-C charger.

Storage Capacity: ROM 128 G + expandable storage via microSD card

Charging Time: 2 hrs for internal battery or internal and external battery.

Internal Battery Runtime: 3.8 hrs

External Battery Runtime: 3.2 hrs

Output Port: HDMI 1.4

Indicators: Status light & power light & permission light, three-color light, brightness can be adjusted according to ambient brightness.

Speaker: Supports buzzer

Audio: Array MIC

Operating Temperature: -20° to 50° C (D228 (-4°F to 122°F)

Storage Temperature: Within one month: -30° to 45° C (-22°F to 113°F) / One to three months: -30° to 35° C (-22°F to 95°F) / Three months to one year: -30° to 30° C (-22°F to 86°F)

Recharging Temperature: 5° to 40° C (41°F to 104°F)

Supported Aircraft Models: Support for Matrice 4T/4E

GNSS: GPS, Galileo, and BeiDou triple-mode, supports dynamic Home Point refresh.

Dimensions: 268×163×94.5 mm (L×W×H)

Weight: 1.15 kg (without external battery)

Model: TKPL 2

System Version: Android 11

External Interfaces: HDMI 1.4, SD3.0, Type-C supports OTG, supports PD charging, maximum power 65W, USB-A supports USB 2.0 interface.

Accessory: Optional strap/waist support
