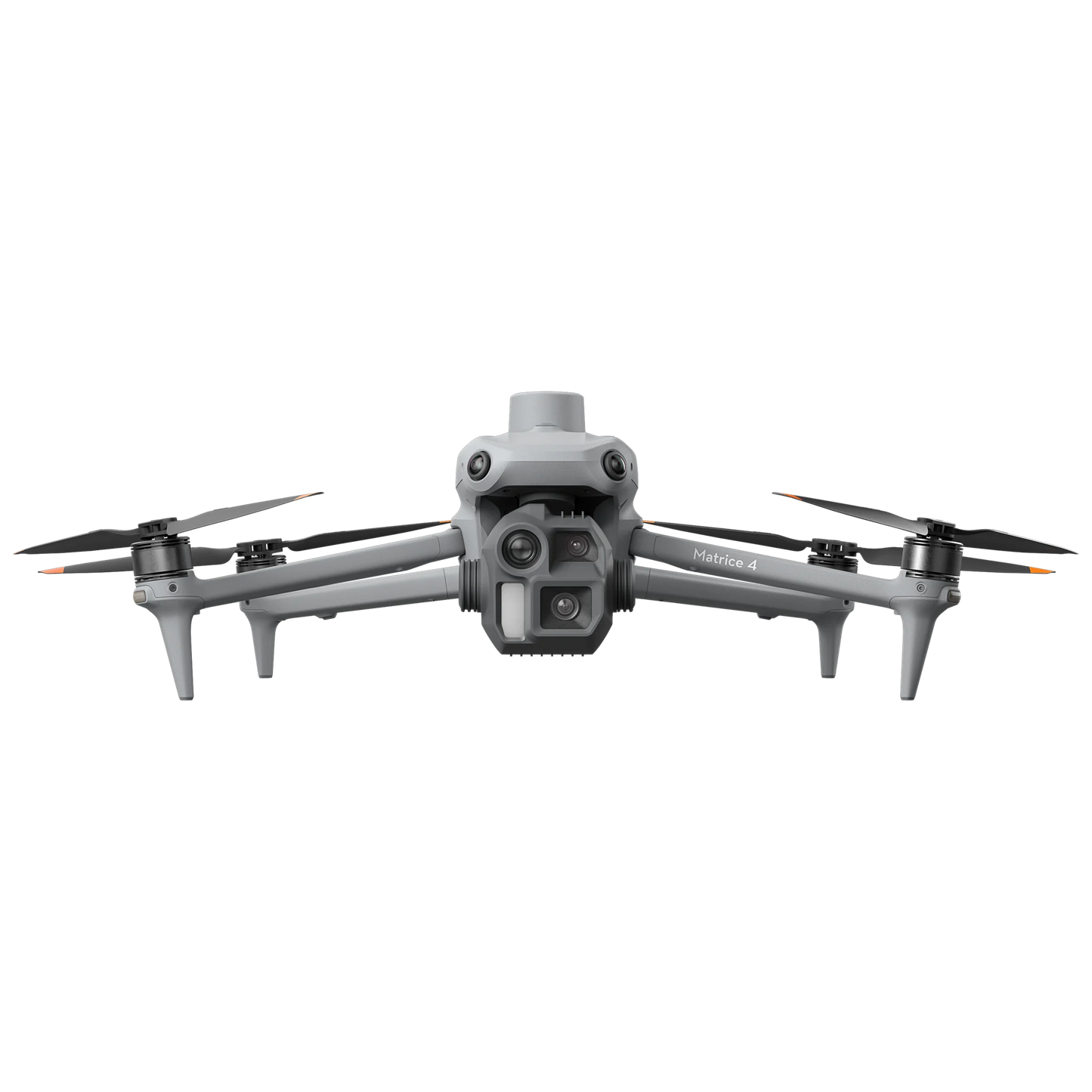

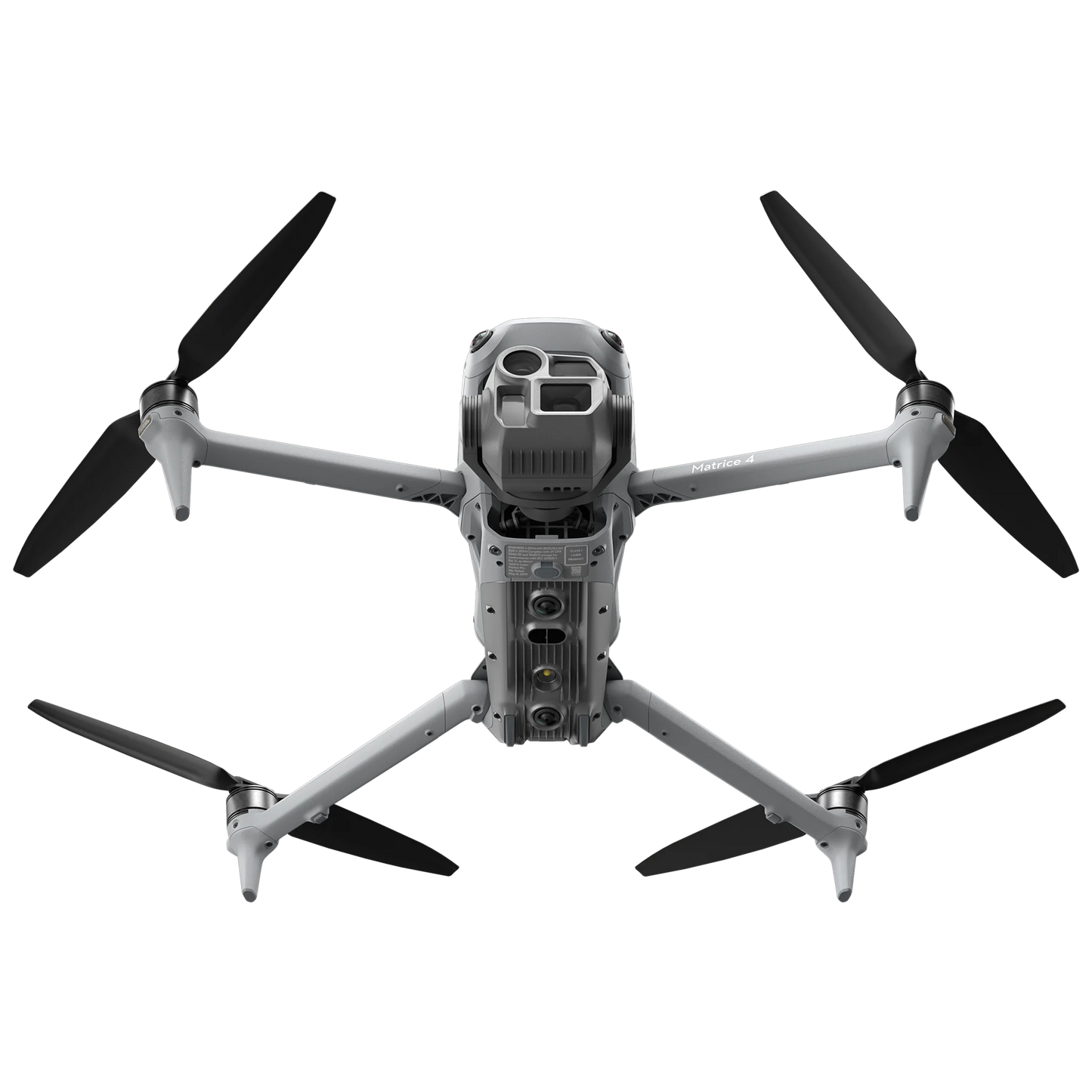

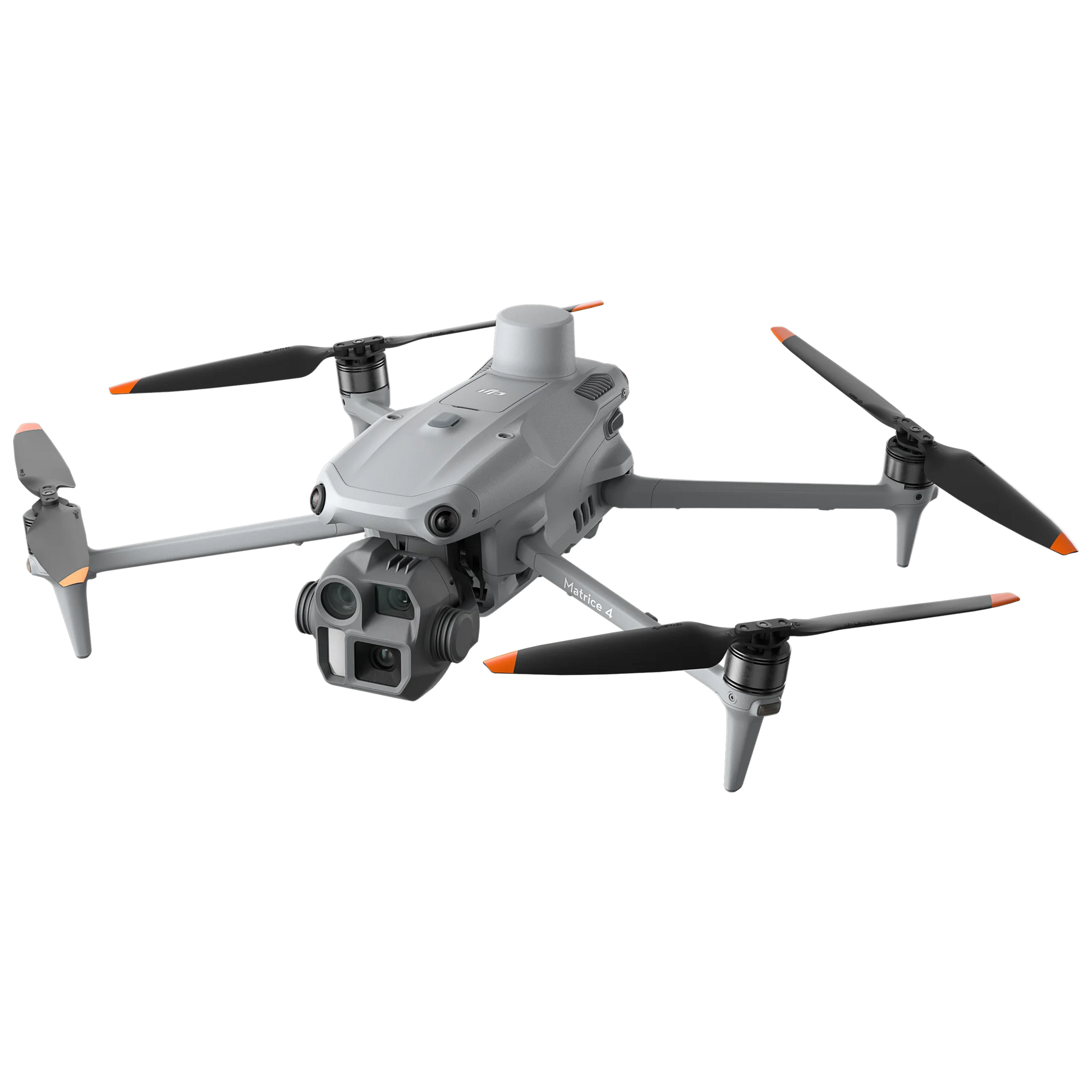

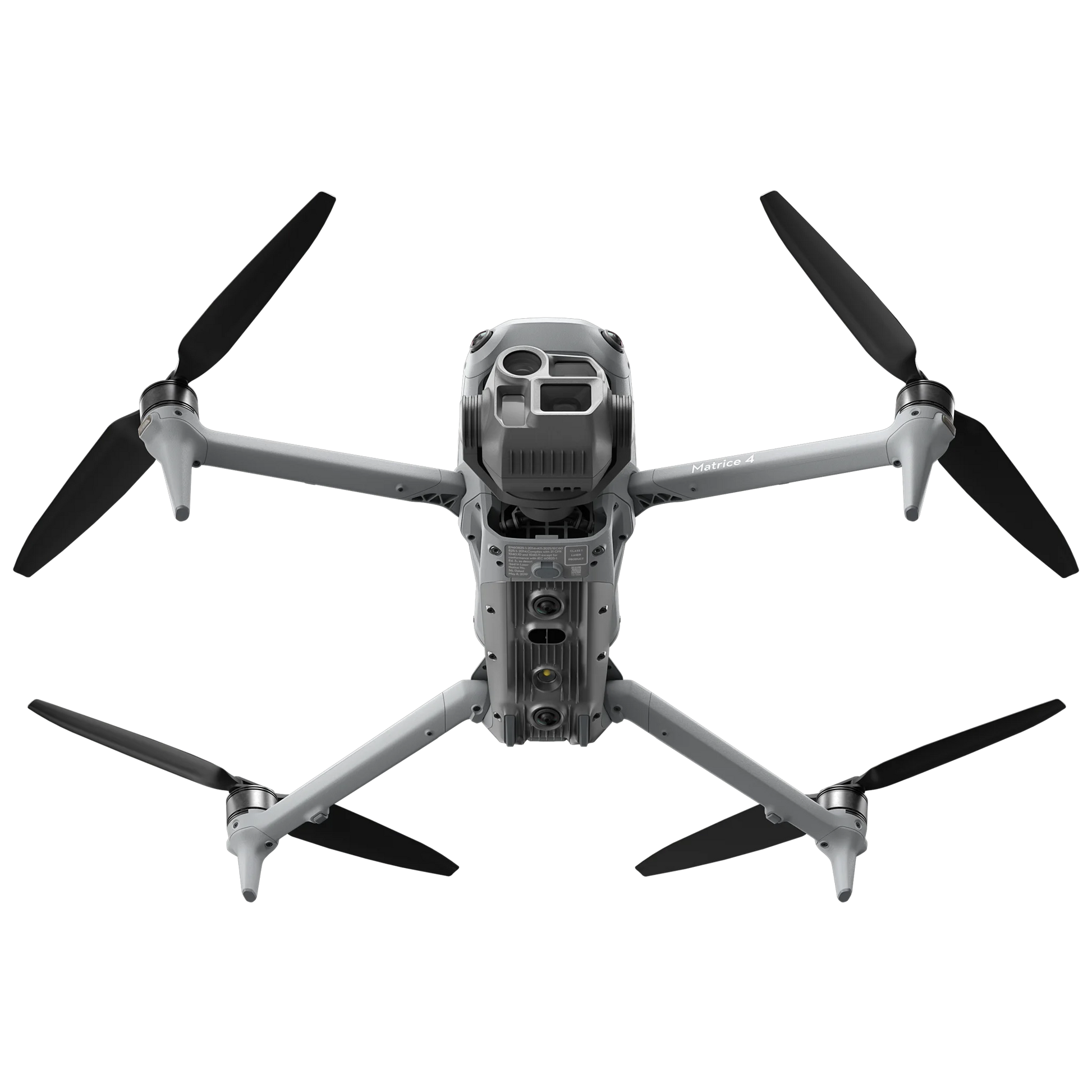

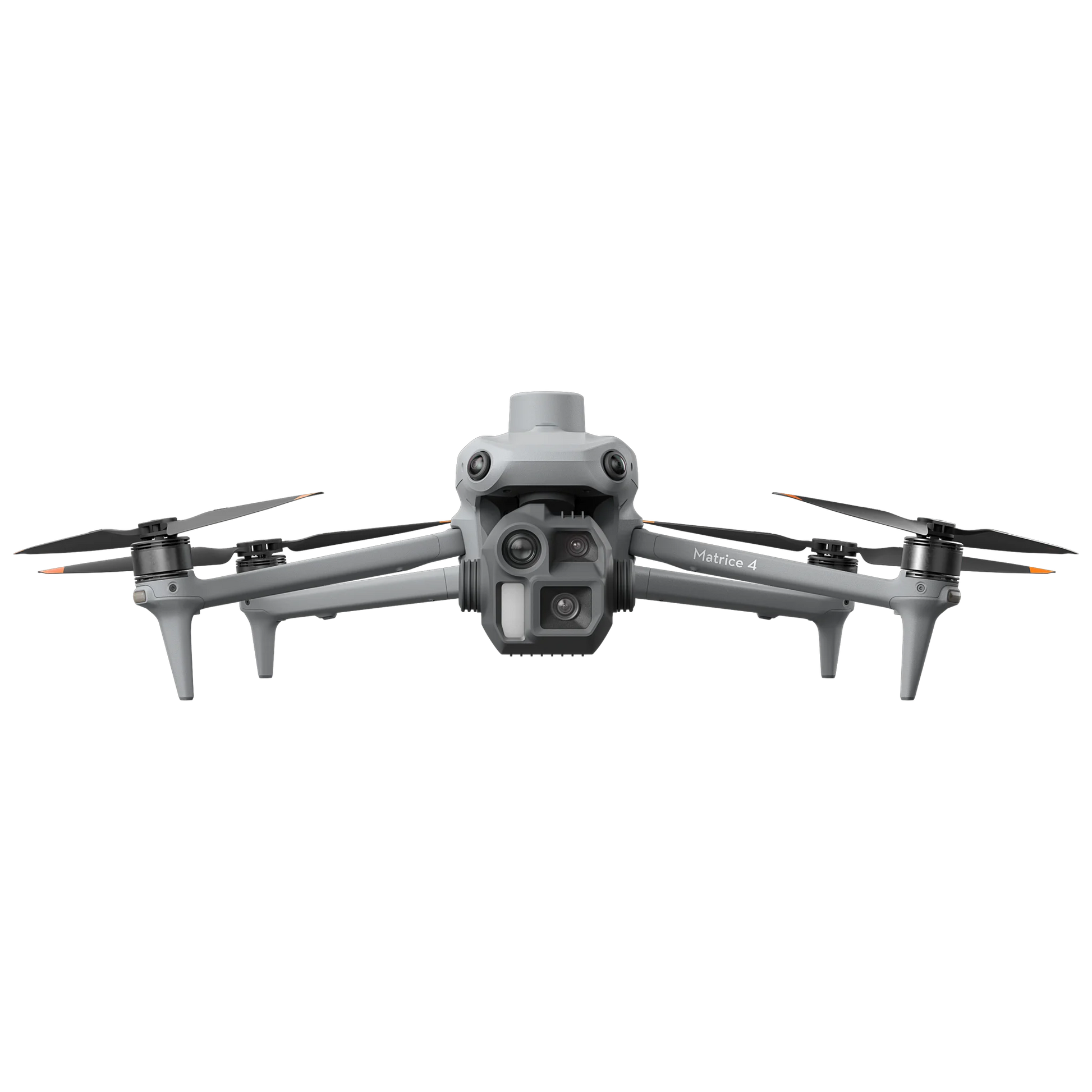

DJI - Matrice 4E

The DJI Matrice 4E is designed for surveying, mapping, construction, and inspections. High-speed aerial surveying from multiple angles can be done with the 24mm wide-angle lens (4/3 CMOS, 20MP, f/2.8-f/11) with a mechanical shutter. It supports rapid 0.5-second interval shooting in orthophoto and oblique photography modes with mapping flight speeds reaching up to 21 meters per second. With Smart 3D Capture, rough models and precise mapping routes can be generated on the remote controller, allowing for detailed measurements of irregular buildings. It can also display virtual space routes and waypoint photos, enhancing flight safety assessment and coverage area analysis.

Features

Intelligent Recognition With AI, Intelligent Operation

Built-in AI identifies vehicles, vessels, and subjects during search and rescue or routine flights. Offers Cruise, FlyTo, Smart Track, and POI functions.

Excellent for Low-Light Environments

The Matrice 4 series cameras have larger apertures, new Night Scene Mode and Low-Light Fisheye Omnidirectional Sensing, the Matrice 4T additionally features new hardware for NIR illumination, supports infrared super-resolution for SAR.

Crystal Clear Vision

The medium tele camera identifies screws from 10 meters and reads instrument data at substations, while the tele camera captures details from signs up to 250 meters away with improved clarity.

Precision Mapping

Supports 5-Directional Oblique Capture, 3-Directional Ortho Capture, and Smart 3D Capture. The Matrice 4E also supports 0.5-Second interval shooting and combine with DJI Pilot 2 to automatically generate mapping reports.

Enhanced Flight Safety

Features GNSS and Vision Integrated Positioning and Navigation System. O4 Enterprise video transmission range over 20 km and can be equipped with DJI Cellular Dongle 2.

What's in the box?

• DJI Matrice 4T Enterprise Drone


Specs

Aircraft

Takeoff Weight (with propellers): 1219 g

Takeoff Weight (with Low-Noise propellers):1229 g

Max Takeoff Weight: Standard Propellers: 1420 g / Low-Noise Propellers: 1430 g

Dimensions: Folded: 260.6×113.7×138.4 mm (L×W×H) / Unfolded: 307.0×387.5×149.5 mm (L×W×H)

Max Payload: 200 g

Propeller Size: 10.8 in

Diagonal Wheelbase: 438.8 mm

Max Ascent Speed: 10 m/s

Maximum Ascent Speed with Accessories: 6 m/s

Max Descent Speed: 8 m/s

Max Descent Speed with Accessories: 6 m/s

Max Horizontal Speed (at sea level, no wind): 21 m/s / 21 m/s flying forward, 18 m/s flying backward, 19 m/s flying sideways

Max Altitude: 6000 m

Max Operating Altitude with Payload: 4000 m

Max Flight Time (without wind): 49 min (standard propellers) / 46 min (low-noise propellers)

Max Hover Time (without wind): 42 min (standard propellers) / 39 min (low-noise propellers)

Max Flight Distance (no wind): 35 km (standard propellers) / 32 km (low-noise propellers)

Max Wind Speed Resistance: 12 m/s

Max Pitch Angle: 35°

Operating Temperature: -10℃ to 40℃ (14°F to 104°F)

GNSS: GPS + Galileo + BeiDou + GLONASS*

Hovering Accuracy Range (windless or breezy): ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)

RTK GNSS Accuracy: RTK Fix: 1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)

Propeller Model: 1157F (standard propellers) / 1154F (low noise propeller)

Beacon: Built into the aircraft

Camera

Image Sensor: Wide: 4/3-inch CMOS Effective Pixels: 20 MP / Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP / Telephoto: 1/1.5-inch CMOS, Effective Pixels: 48 MP

Lens: FOV: 84° / Equivalent Focal Length: 24 mm / Aperture: f/2.8-f/11 / Focus: 1 m to ∞
Medium Tele Camera: FOV: 35° / Equivalent Focal Length: 70 mm / Aperture: f/2.8 / Focus: 3 m to ∞
Tele camera: FOV: 15° / Equivalent Focal Length: 168 mm / Aperture: f/2.8 / Focus: 3 m to ∞

ISO Range: Normal Mode: ISO 100 to ISO 25600
Night Scene Mode: Wide Camera: ISO 100 to ISO 204800 / Medium Tele Camera: ISO 100 to ISO 409600 / Tele Camera: ISO 100 to ISO 409600

Shutter Speed:

Wide: Electronic Shutter: 2-1/8000 s / Mechanical Shutter: 2-1/2000 s / Medium Telephoto: 2-1/8000 s / Telephoto: 2-1/8000 s

Max Photo Size: Wide: 5280 × 3956 / Medium Telephoto: 8064 × 6048 / Telephoto: 8192 × 6144

Minimum Photo Interval: 0.5 s

Still Photography Modes:

Single: 20 MP / Interval: 20 MP / JPEG：0.5/0.7/1/2/3/5/7/10/15/20/30/60 s / JPEG + RAW：2/3/5/7/10/15/20/30/60 s / Smart Shooting: 20 MP / Panorama: 20 MP (raw image);100 MP (stitched image)
Medium Tele Camera: Single: 12 MP and 48 MP / Interval: 12 MP/48 MP / JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s / Smart Shooting: 12 MP
Telephoto: Single: 12 MP and 48 MP / Interval: 12 MP/48 MP / JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s / Smart Shooting: 12 MP

Video Codec and Resolution

Video Coding Format: H.264/H.265 / Coding Strategy: CBR, VBR
Resolution: 4K: 3840 × 2160@30fps / FHD: 1920 × 1080@30fps

Max Video Bitrate: H.264: 60Mbps / H.265: 40Mbps

Supported File System: exFAT

Photo Format: Wide: JPEG/DNG (RAW) / Medium Tele Camera: JPEG / Telephoto: JPEG

Video Format: MP4 (MPEG-4 AVC/H.264)

Digital Zoom: Telephoto: 16x (112x hybrid zoom)

Laser Module

Laser Range finding: Measurement Range: 1800 m (1 Hz) @20% reflectivity target / Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz) / Blind Zone: 1 m / Distance Measurement Accuracy: 1-3 m: System Error <0.3 m, Random Error <0.1 meters @1σ
Other Distances: ±(0.2+0.0015D) (D represents the measurement distance in meters)

Gimbal

Stabilization System: 3-axis (tilt, roll, pan)

Mechanical Range

Gimbal Mechanical Limits: Tilt: -140° to 50° / Roll: -52° to 52° / Pan: -65° to 65°
Soft Limits: Tilt: -90° to 35° / Roll: -47° to 47° / Pan: -60° to 60°

Controllable Rotation Range: Tilt: -90° to 35° / Pan: Not controllable

Max Control Speed (tilt): 100°/s

Angular Vibration Range: ±0.007°

Yaw Axis: Manual operation is uncontrollable / The MSDK interface program is controllable.

Ingress Protection Rating: No Standard Protection Level

Operating Temperature: Standard: -10°C to 40°C (14°F to 104°F)

Video Transmission

Video Transmission System: O4 Enterprise

Live View Quality: Remote Controller: 1080p/30fps

Operating Frequency: 2.400-2.4835 GHz / 2.400-2.4835 GHz / 5.725-5.850 GHz / 5.150-5.250 GHz (CE)

Transmitter Power (EIRP): 2.4 GHz: ≤33 dBm (FCC), ≤20 dBm (CE/SRRC/MIC) / 5.8 GHz: <33 dBm (FCC), <30 dB (SRRC) , <14 dBm (CE) / 5.15-5.25: < 23 dBm (FCC/CE)

Max Transmission Distance (unobstructed, free of interference): 25 km (FCC) / 12 km (CE) / 12 km (SRRC) / 12 km (MIC)

Max Transmission Distance (with interference): Strong Interference - City Centers (approx. 1.5-5 km) / Medium Interference - Suburban Areas (approx. 5-15 km) / Micro interference：Suburbs/Seasides (approx. 15-25 km)
Max Download Speed: 20 MB/s
Latency (depending on environmental conditions and mobile device): 130 ms
Antenna: 8 antennas, 2T4R

Others: Cellular Dongle Compartment

Memory Card

Supported SD Cards: U3/Class10/V30 or above is required, or use a memory card from the recommended list.

Recommended microSD Cards: Lexar 1066x 64GB U3 A2 V30 microSDXC / Lexar 1066x 128GB U3 A2 V30 microSDXC / Lexar 1066x 256GB U3 A2 V30 microSDXC / Lexar 1066x 512GB U3 A2 V30 microSDXC / Kingston Canvas GO! Plus 64GB U3 A2 V30 microSDXC / Kingston Canvas GO! Plus 128GB U3 A2 V30 microSDXC / Kingston Canvas GO! Plus 256GB U3 A2 V30 microSDXC / Kingston Canvas GO! Plus 512GB U3 A2 V30 microSDXC

Intelligent Flight Battery

Capacity: 6741 mAh

Standard Voltage: 14.76 V

Max Charging Voltage: 17.0 V

Cell Type: Li-ion 4S

Energy: 99.5 Wh

Weight: 401 g

Recharging Temperature: 5°C to 40°C (41°F to 104°F)

Discharge Rate: 4C

Max Charging Power: 1.8C

Supports low-temperature charging: Not supported

Cycle Count: 200

Power Adapter (100W)

Input: 100-240 V (AC), 50-60 Hz, 2.5 A

Output: Max. 100 W (total)
Rated Power: 100 W

Charging Hub

Input: USB-C：5-20 V, max 5 A

Output: Battery Interface: 11.2 V to 17 V

Rated Power: 100 W

Recharging Type: 4 batteries charging in sequence / Support Standard Mode (100% SOC) and Standby Mode (90% SOC)

Compatible Battery: DJI Matrice 4E/T Series Intelligent Flight Battery

Charging Temperature: 5° to 40° C (41°F to 104°F)

DJI RC Plus 2 Enterprise

Video Transmission System: O4 Enterprise

Max Transmission Distance (unobstructed, free of interference): 25 km (FCC) / 12 km (CE)
12 km (SRRC) / 12 km (MIC)

Operating Band of Image Transmission: 2.4000-2.4835 GHz / 5.725 - 5.850 GHz / 5.1GHz (receive only)
Antenna: 2T4R, built-in multi-beam high-gain antenna

Video Transmission Transmitter Power (EIRP): 2.4 GHz: ＜33 dBm (FCC), ＜20 dBm (CE/SRRC/MIC) / 5.1 GHz: <23 dBm (CE) / 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)

4G Transmission: DJI Cellular Dongle 2

Wi-Fi Protocol: Wi-Fi Direct, Wireless Display, IEEE 802.11a/b/g/n/ac/ax / Support 2 × 2 MIMO Wi-Fi, Dual Band Simultaneous (DBS) with dual MAC, up to 1774.5 Mbps data rate (2 × 2 + 2 × 2 11ax DBS)

Bluetooth Protocol: Bluetooth 5.2

Screen Resolution: 1920 × 1200

Screen Size: 7.02 inches

Screen Frame Rate: 60 fps

Brightness: 1400 nits

Touchscreen Control: 10 Points Multi-touch

Built-in Battery: 2S2P High Energy Density 18650 Lithium-ion Battery (6500 mAh @ 7.2 V) 46.8 Wh

External Battery: Optional, WB37 (4920 mAh @ 7.6 V) 37 Wh

Recharging Type: Supports PD fast charging, with a maximum specification of 20 V/3.25 A USB Type-C charger.

Storage Capacity: ROM 128 G + expandable storage via microSD card

Charging Time: 2 hrs for internal battery or internal and external battery.

Output Port: HDMI 1.4

Speaker: Supports buzzer

Audio: Array MIC

Operating Temperature: -20° to 50° C (D228 (-4°F to 122°F)

Recharging Temperature: 5° to 40° C (41°F to 104°F)

Supported Aircraft Models: Support for Matrice 4T/4E

GNSS: GPS, Galileo, and BeiDou triple-mode, supports dynamic Home Point refresh.

Dimensions: 268×163×94.5 mm (L×W×H)
Weight: 1.15 kg (without external battery)

Model: TKPL 2

System Version: Android 11

External Interfaces: HDMI 1.4, SD3.0, Type-C supports OTG, supports PD charging, maximum power 65W, USB-A supports USB 2.0 interface.

Accessory: Optional strap/waist support
