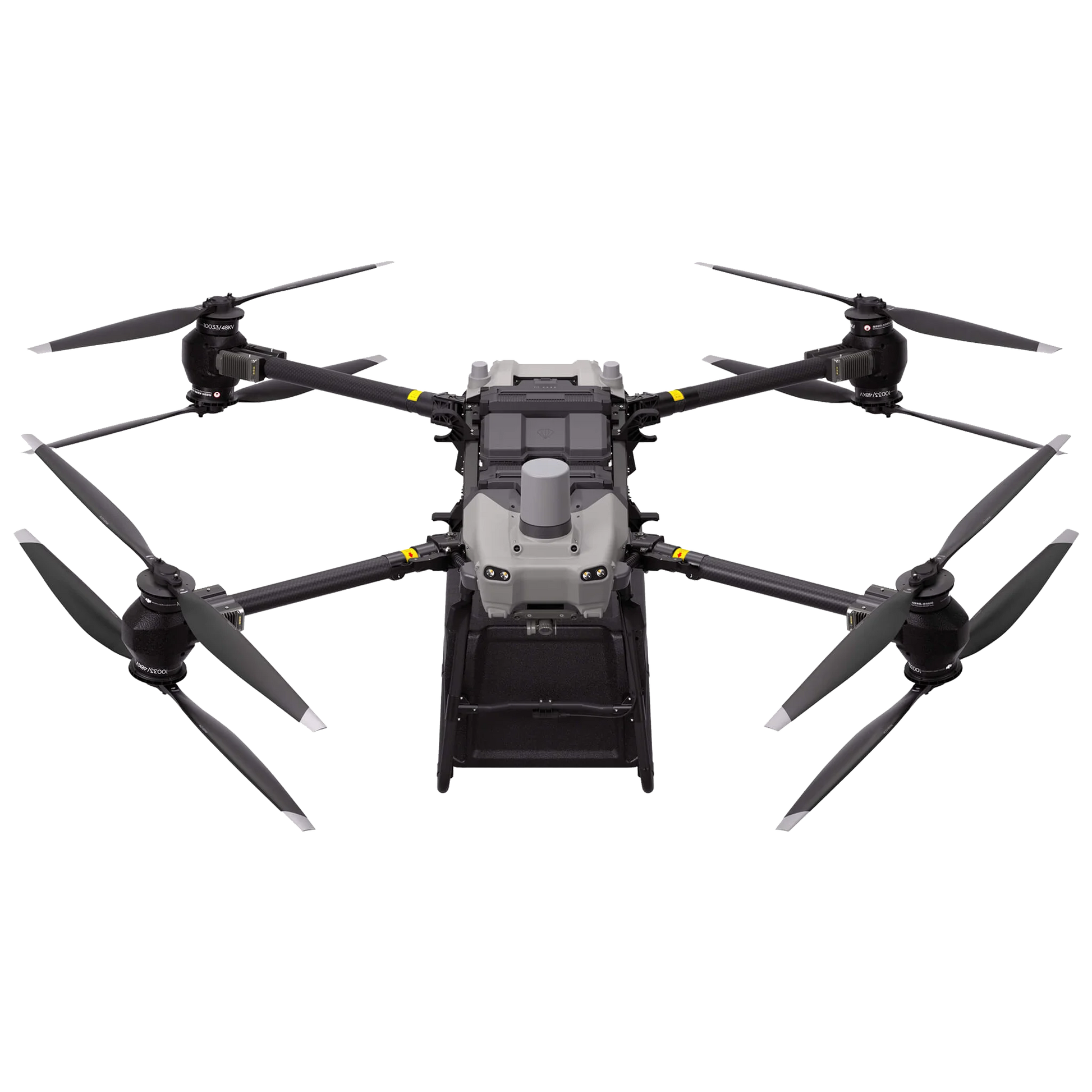

FlyCart 30

DJI FlyCart 30 is here to deliver the goods. A long-distance heavy lifter with powerful signal and intelligence, DJI FlyCart 30 supports Cargo mode and Winch mode and ascends beyond traditional logistical limits to deliver a safe, economical, and efficient air transport solution.



Features

• 30 kg Max Payload (Dual Batteries)
• 40 kg Max Payload (Single Battery)
• 28 km Max Flight Distance Without Payload (Dual Batteries) 16 km Max Flight Distance with Full Payload (Dual Batteries) 20 m/s Max Flight Speed; 15 m/s Cruising Speed (with Carbon Fiber Propellers)



      Weather Performance

• 6,000 m max flight altitude, for operations across diverse terrain types
• -20°C to 45° C operating temperature, for hot and cold environments
• 12 m/s max wind speed resistance, for stability in adverse weather conditions



      Video Transmission

• 20 km O3 transmission, with strong anti-interference ability
• Dual Operator Mode enables two pilots in different locations to transfer control of the drone with one click
• High-resolution FPV gimbal camera for real-time aerial awareness



      Safety and Reliability

• IP55 dustproof, waterproof, and corrosion-resistant
• Front and Rear Active Phased Array Radars and a dual Binocular Vision system to achieve
• Multidirectional Obstacle Sensing
• Multiple redundancy protection measures such as dual batteries and parachutes



      Payload Configuration

• Foldable design for convenient transportation and flexible transitions.
• Cargo Mode: Land and deliver payloads from a cargo box with a max payload capacity of 40 kg
• Winch Mode: Hover and deliver payloads with a descending rope that can be controlled manually or automatically.



What's in the box?

• DJI D FlyCart 30 Oversea



Specs

      Aircraft

• Weight: 2.5 kg (without battery) / 65 kg (with two DB2000 batteries)
• Max Takeoff Weight: 95 kg (with cargo at sea level）
• Max Diagonal Wheelbase: 2200 mm
• Dimensions: 1590 x 1900 x 947 mm (LxWxH) (arms unfolded, propellers folded) / 2800x3085x947 mm (LxWxH) (arms & propellers unfolded) / 1115x760x1027 mm (LxWxH) (arms & propellers folded)
• Loadable Battery Quantity: 2
• Hovering Endurance (empty weight, with max battery capacity): 29 mins (dual battery mode) / 15 mins (single battery mode)
• Hovering Endurance (max weight, with max battery capacity): 18 mins (30 kg weight load, dual battery mode) / 8 mins (40 kg weight load, single battery mode)
• Max Flight Distance (empty weight, with max battery capacity): 28 km (dual battery mode) / 12 km (single battery mode)
• Max Flight Distance (max weight, with max battery capacity): 16 km (30 kg weight load, dual battery mode) / 8 km (40 kg weight load, single battery mode)
• Max Flight Time (max weight, with max battery capacity): 18 mins (30 kg weight load, dual battery mode) / 9 mins (40 kg weight load, single battery mode)
• Operating Temperature: -20° to 45° C Ingress Protection Rating: IP55
• Hovering Accuracy (with strong GNSS signal): RTK positioning enabled: ±10 cm horizontal, ±10 cm vertical / RTK positioning disabled: ±60 cm horizontal and ±30 cm vertical (radar enabled: ±10 cm) Max Pitch Angle: 30°
• Max Ascent Speed: 5 m/s
• Max Descent Speed: 3 m/s (vertical) / 5 m/s (tilted)
• Max Horizontal Speed: 20 m/s
• Max Flight Altitude: 6000 m (without payload)
• Max Wind Speed Resistance: 12 m/s



      Propulsion System

• Stator Size: 100x33 mm
• Motor KV Value: 48 rpm/V
• Max Motor Power: 4000 W/rotor
• Propellers Material: Carbon fiber composite
• Propellers Diameter: 54 inch
• Propellers Type: Foldable double-blade propellers
• Main-rotor Diameter: 1375 mm
• Rotor Quantity: 8



      LED Light

• Effective Illumination Distance: 10 m
• Illumination Mode: 60 Hz, automatically switch on according to ambient light



      DJI O3 Image Transmission

• Model: Pigeon (with DDR)-2T4R
• Signal Effective Distance: 20 km (FCC) / 8 km (CE/SRRC/MIC)
• O3 Operating Frequency: 2.4000 to 2.4835 GHz / 5.725 to 5.850 GHz



      Forward and Backward Active Phased Array Radar

• Model Number: RD241608RF (forward) / RD241608RB (backward)
• Altitude Detection: Fixed altitude range: 1.5-200 m
• Rear Obstacle Avoidance: Sensible distance (rear): 1.5-50 m / FOV Forward: 360° horizontal, ±45° vertical，±45°upward / Backward: ±45° horizontal, 360° vertical / Operating conditions: Available during takeoff, landing, and ascending when an obstacle is more than 1.5 m away from the aircraft / Safe distance: 3.5 m (distance between the propeller tip and obstacle when the aircraft is hovering after braking) / Sensing direction: multi-direction



      FPV Camera

• Resolution: 1920x1440
• DFOV: 149°
• Frame Rate: 30fps
• Type: Full HD FPV Single Axis Gimbal Camera
• Fill Light: Supported



      Cargo Case

• Dimension: 754x472x385 mm (LxWxH)
• Inner Space: 573x416x305 mm (LxWxH)
• Material: EPP plus aluminum alloy frame
• Weighing Feature: Supported
• Weight: Approx. 3 kg
• Load Capacity: 0-40 kg



      Parachute

• Max Payload: ≤ 95 kg
• Dimension: 300x200x120 mm (LxWxH)
• Weight: Approx. 2.1 kg
• Automatic Reaction Time: Approx. 1000 ms
• Descending Speed: ≤ 6 m/s (at sea level, no wind)
• Parachute Shape: Square Material: Nylon Surface Area: Approx. 22 ㎡
• Minimum Opening Height: 60 m
• Operating Temperature: -20° to 45° C
• Ingress Protection Rating: IP55
• Mainboard Power-off Battery Life: ≥ 1 hour
• Memory Card Capacity: Real-time record for 10 flights
• Buzzar Alarm: Supported
• Lighting Alarm: Supported
• Manually Opening: Supported
• Automatic Opening: Supported
