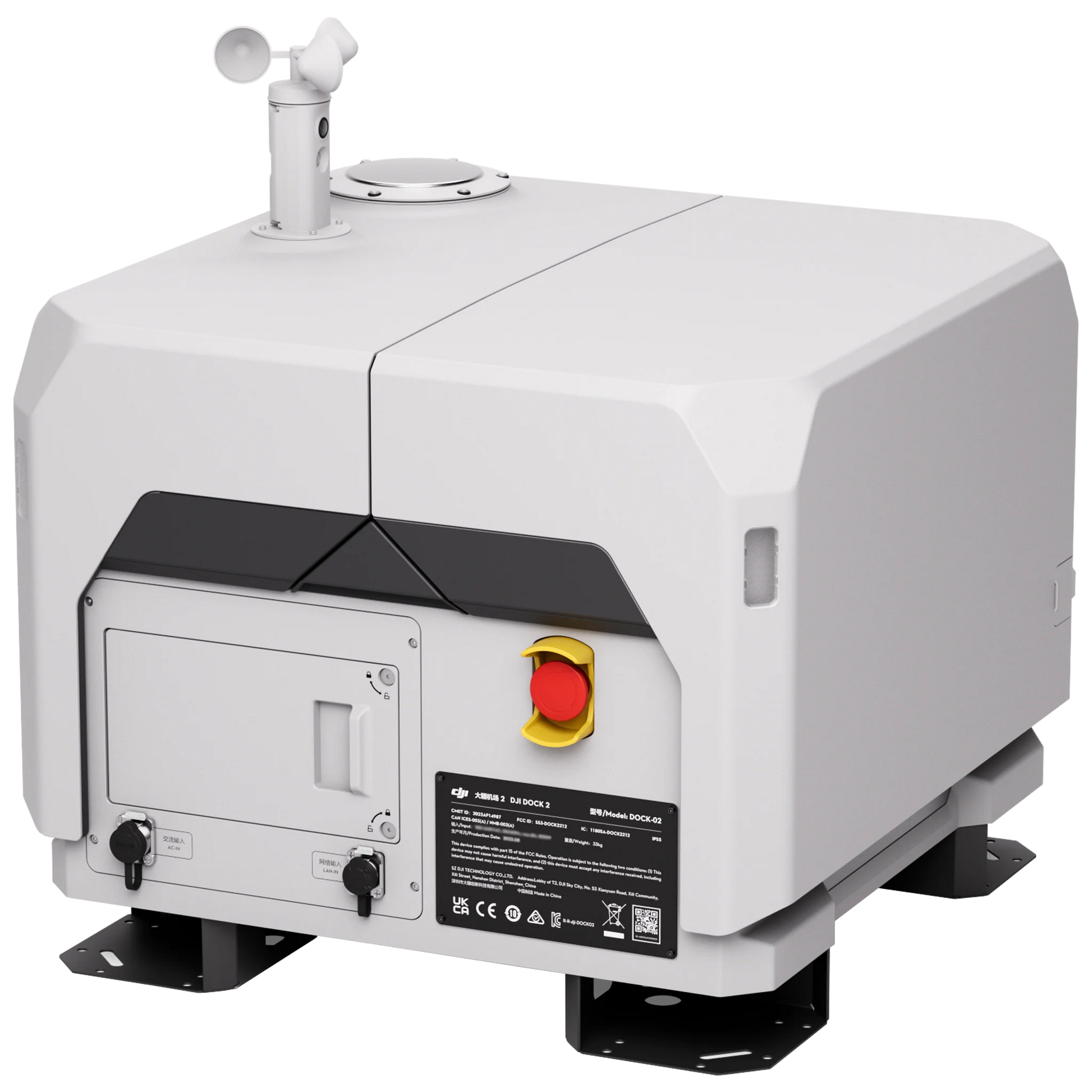

Dock 2

The more capable yet noticeably smaller DJI Dock 2 deploys Matrice 3D or 3TD drones with ease and security. Dock 2 is lightweight, offers high-level operation capabilities, and has cloud-based intelligent functions that bring efficiency and quality to unattended operations.



Features

Lightweight Design

DJI Dock 2 is 75% smaller and 68% lighter than its predecessor and is easily transportable with just two individuals, which makes for flexible installation and reduces installation costs.



Efficient Site Evaluation

Before deployment, the aircraft can detect the surrounding environment using vision sensors and quickly determine whether the area has strong GNSS signals.



IP55 Dustproof and Waterproof

With an IP55 dust and water resistance rating, Dock 2 can operate steadily for extended periods even in harsh climates and environments.



Integrated Environmental Monitoring System

DJI Dock 2 integrates multiple sensors, including rainfall, wind speed, and temperature gauges, to perceive real-time weather changes.



Improved Landing Stability

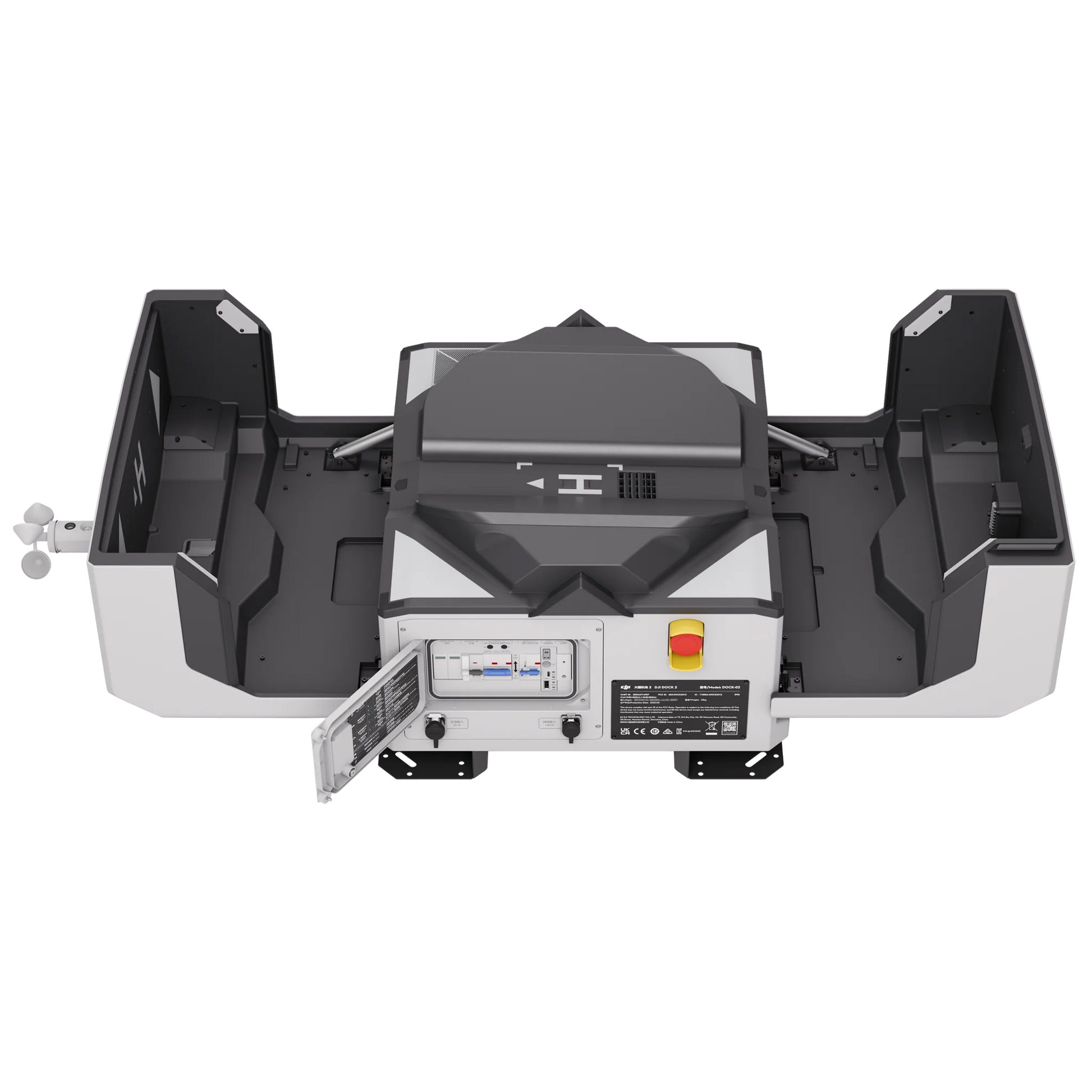

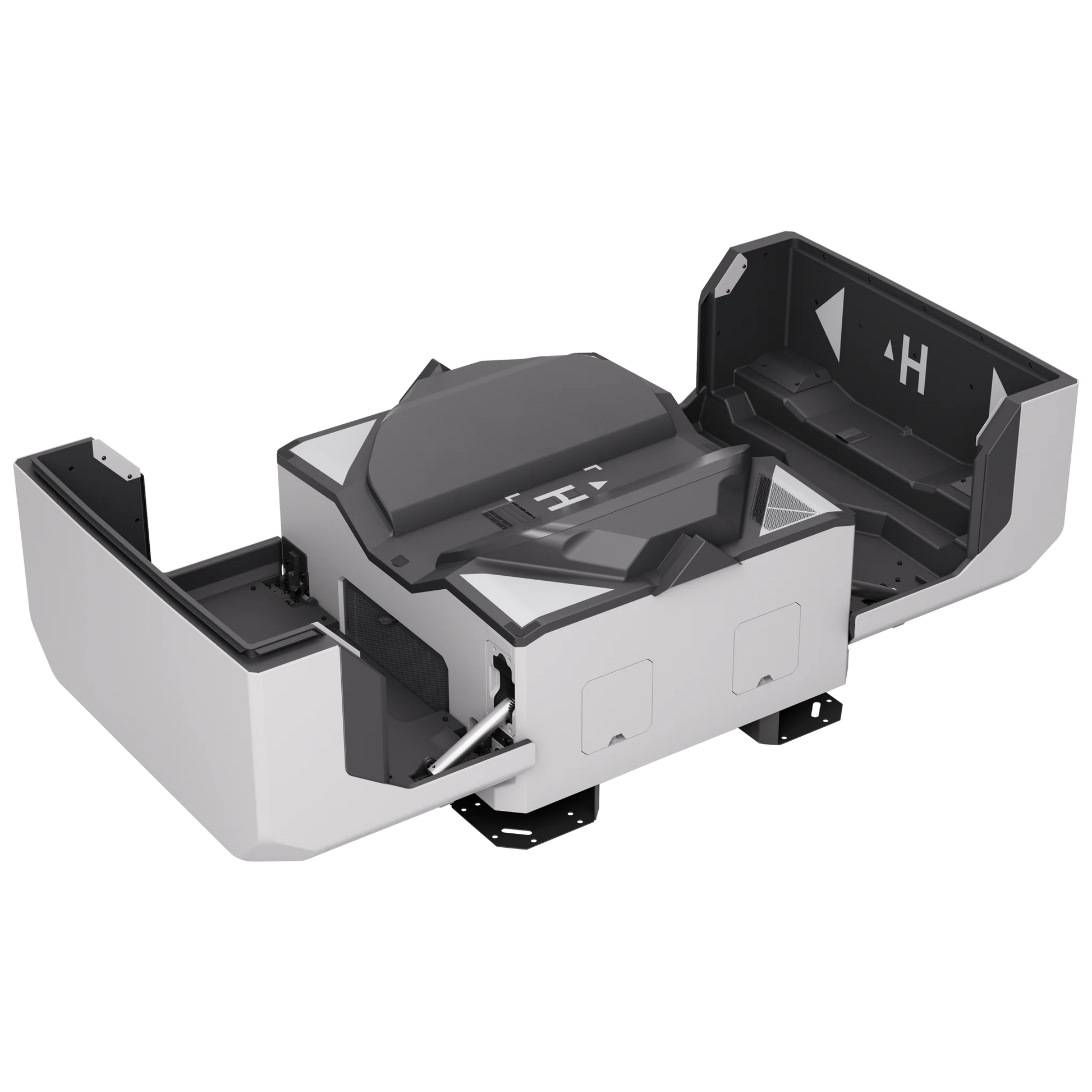

With next-gen image recognition technology, the aircraft accurately identifies positioning markers on the landing pad. Additionally, the landing pad's new slide-ramp centering design further facilitates precise landing.



Built-In Backup Battery

In the case of an unexpected power outage, DJI Dock 2 can continue to operate independently for over five hours with the built-in backup battery, leaving sufficient time for the aircraft to return and land.



What's in the box?

• DJI Dock 2



Specs

• Total Weight: 34 kg (without aircraft)
• Dimensions: Dock Cover Opened: 1228×583×412 mm (L×W×H) / Dock Cover Closed: 570×583×465 mm (L×W×H)
• Input Voltage: 100-240 V (AC), 50/60 Hz
• Input Power: Max 1000 W
• Operating Temperature: -25° to 45° C (-13° to 113° F)
• Ingress Protection Rating: IP55
• Number of Drones Accommodated: 1
• Max Allowable Landing Wind Speed: 8 m/s
• Max Operating Altitude: 4000 m
• Receiving Frequency of RTK Base Station Satellite: Simultaneously receive: GPS: L1 C/A, L2 / BeiDou2: B1l, B2l, B3l / BeiDou3: B1l, B3l / GLONASS: L1, L2 / Galileo: E1, E5B
• Positioning Accuracy of RTK Base Station: Horizontal: 1 cm + 1 ppm (RMS) / Vertical: 2 cm + 1 ppm (RMS)



Dock - Charging Performance

• Output Voltage: 28 V DC
• Charging Time: 32 minutes



Dock - Video Transmission

• Video Transmission System: O3 Enterprise
• Operating Frequency: 2.4000-2.4835 GHz / 5.725-5.850 GHz
• Antenna: Built-in 4 antennas, 2T4R, supports intelligent switching Transmitter Power (EIRP): 2.4 GHz: < 33 dBm (FCC); < 20 dBm (CE/SRRC/MIC) / 5.8 GHz: < 33 dBm (FCC); < 14 dBm (CE); < 23 dBm (SRRC)



Dock - Backup Battery

• Battery Capacity: 12 Ah
• Output Voltage: 12 V
• Battery Type: Lead-acid battery
• Battery Life: > 5 hours



Dock- Network Access

• Ethernet Access: 10/100/1000Mbps adaptive Ethernet port



Dock - Sensor

• Wind Speed Sensor: Supported
• Rainfall Sensor: Supported
• Ambient Temperature Sensor: Supported
• Water Immersion Sensor: Supported
• In-Cabin Temperature Sensor: Supported
• In-Cabin Humidity Sensor: Supported



Dock- Lightning Protection

• AC Power Port: 20 kA (rated value), meets EN 61643-11 Type 2 and IEC 61643-1 Class Ⅱ protection level requirements Ethernet Port: 10 kA (Itotal )，meets EN/IEC 61643-21 Category C protection level requirements
