DeltaQuad

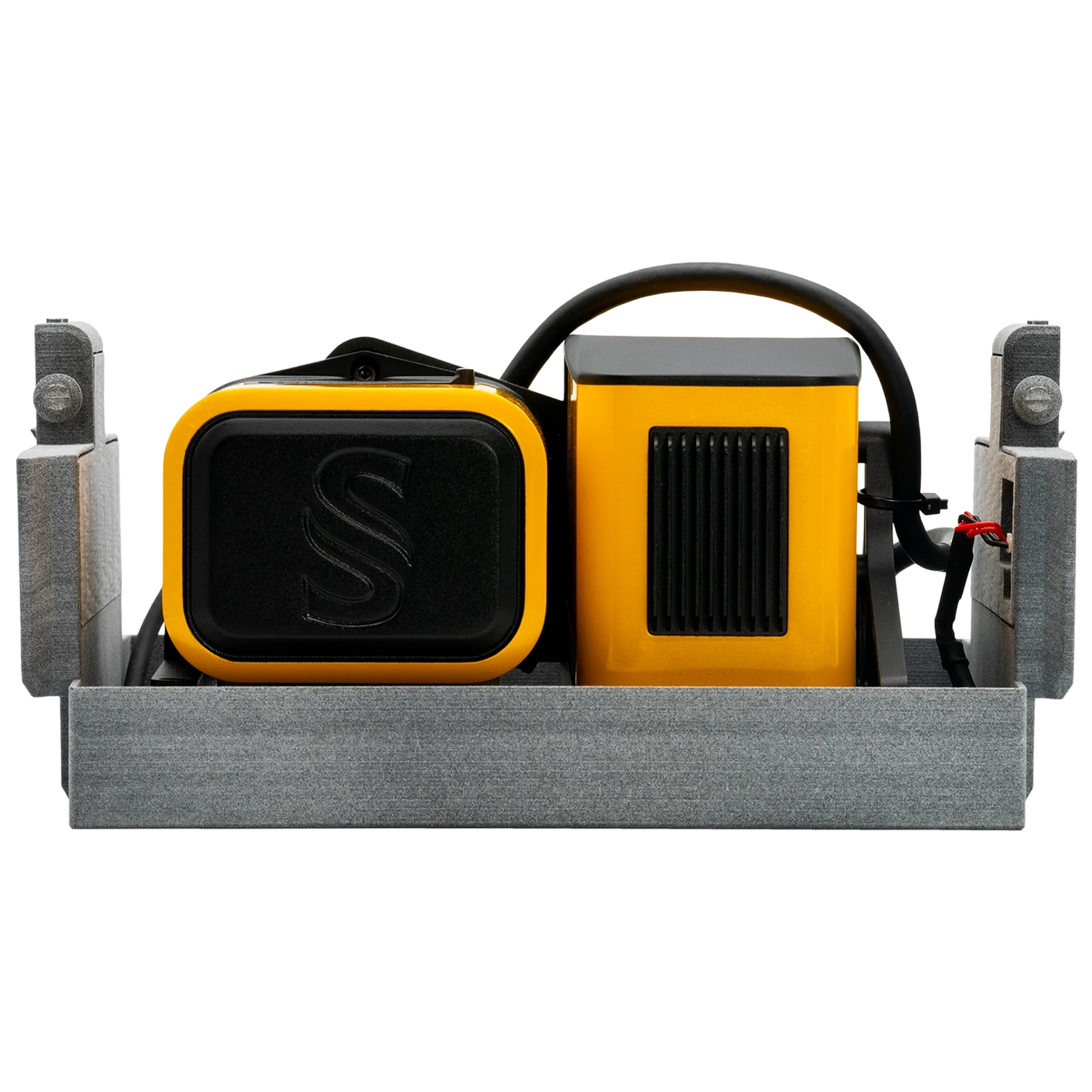

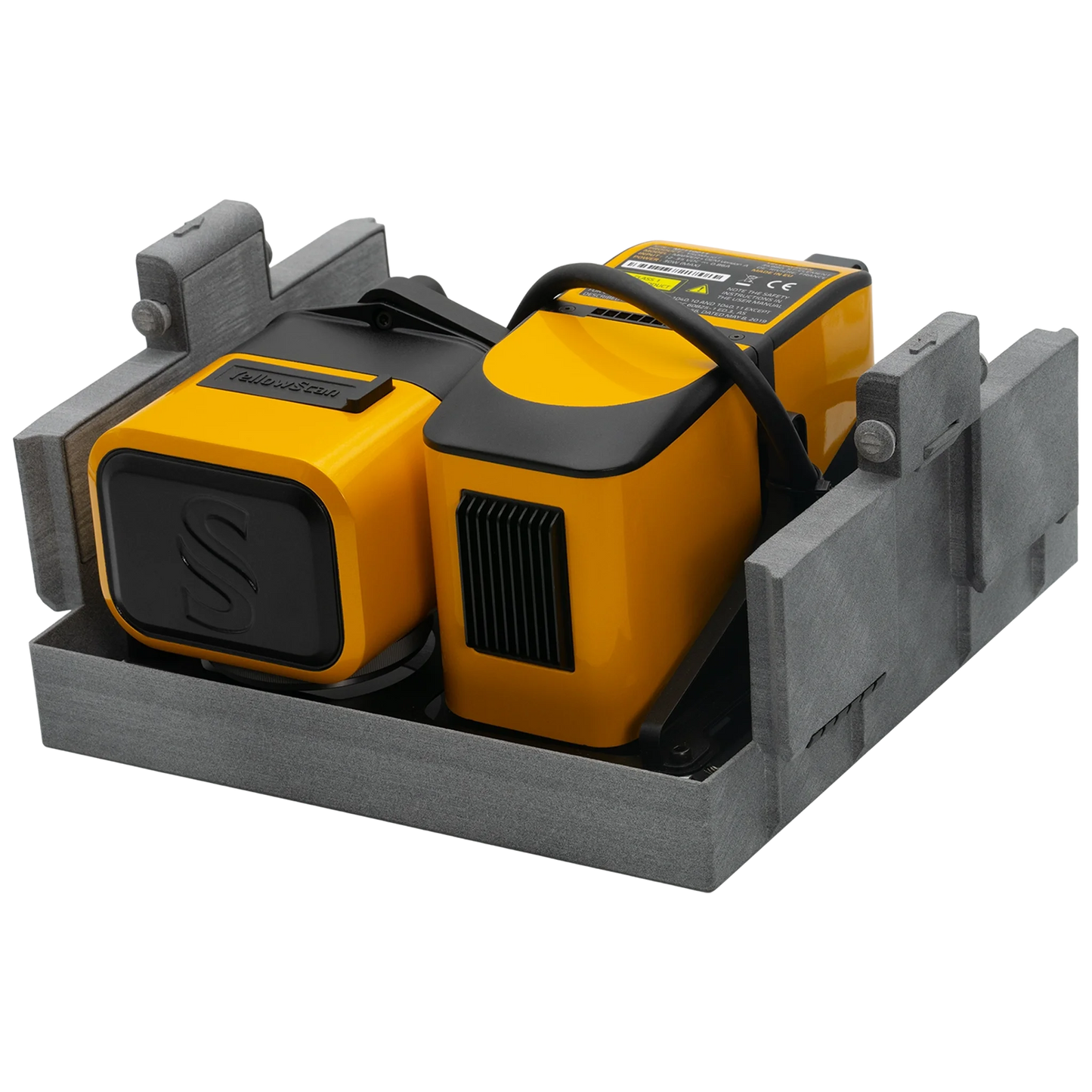

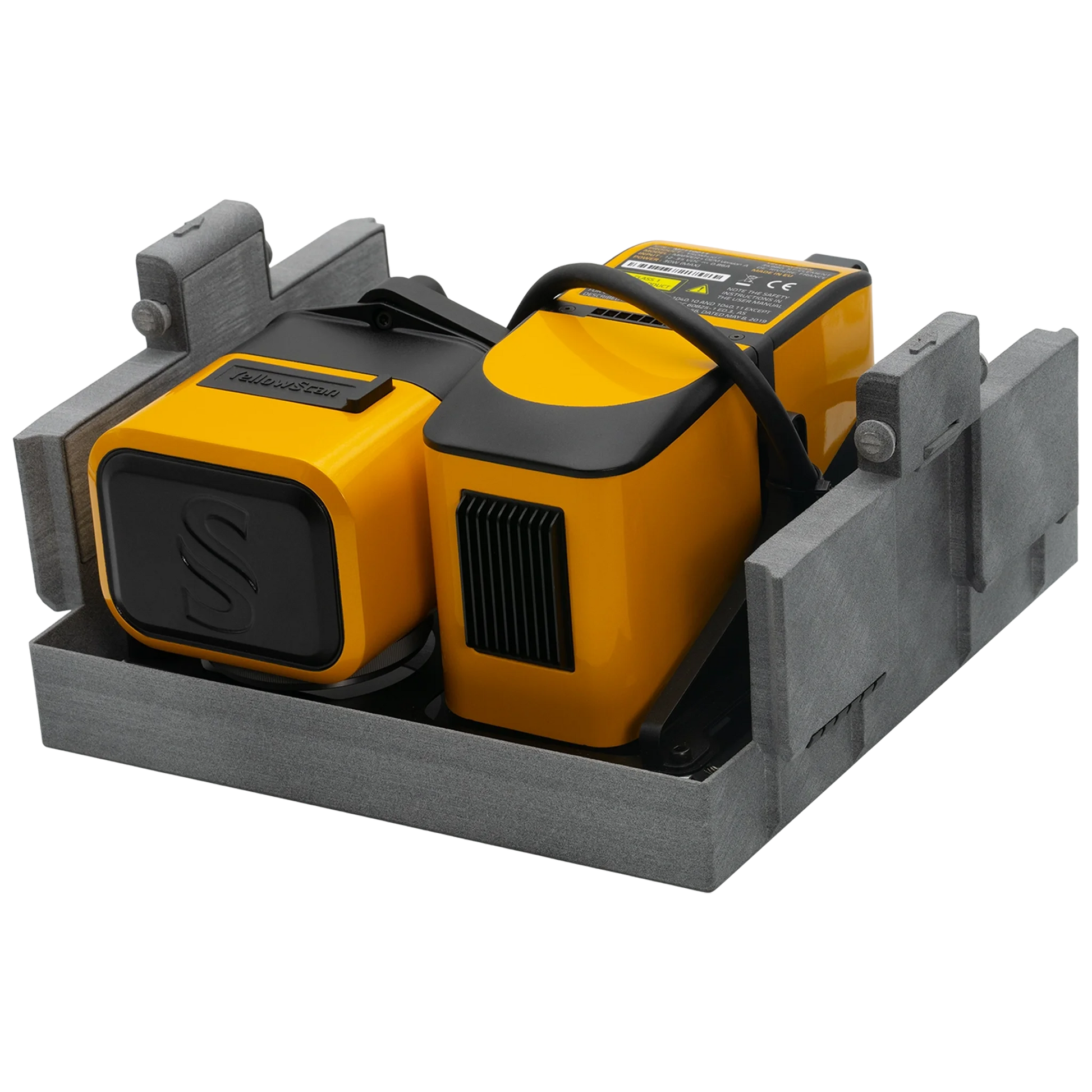

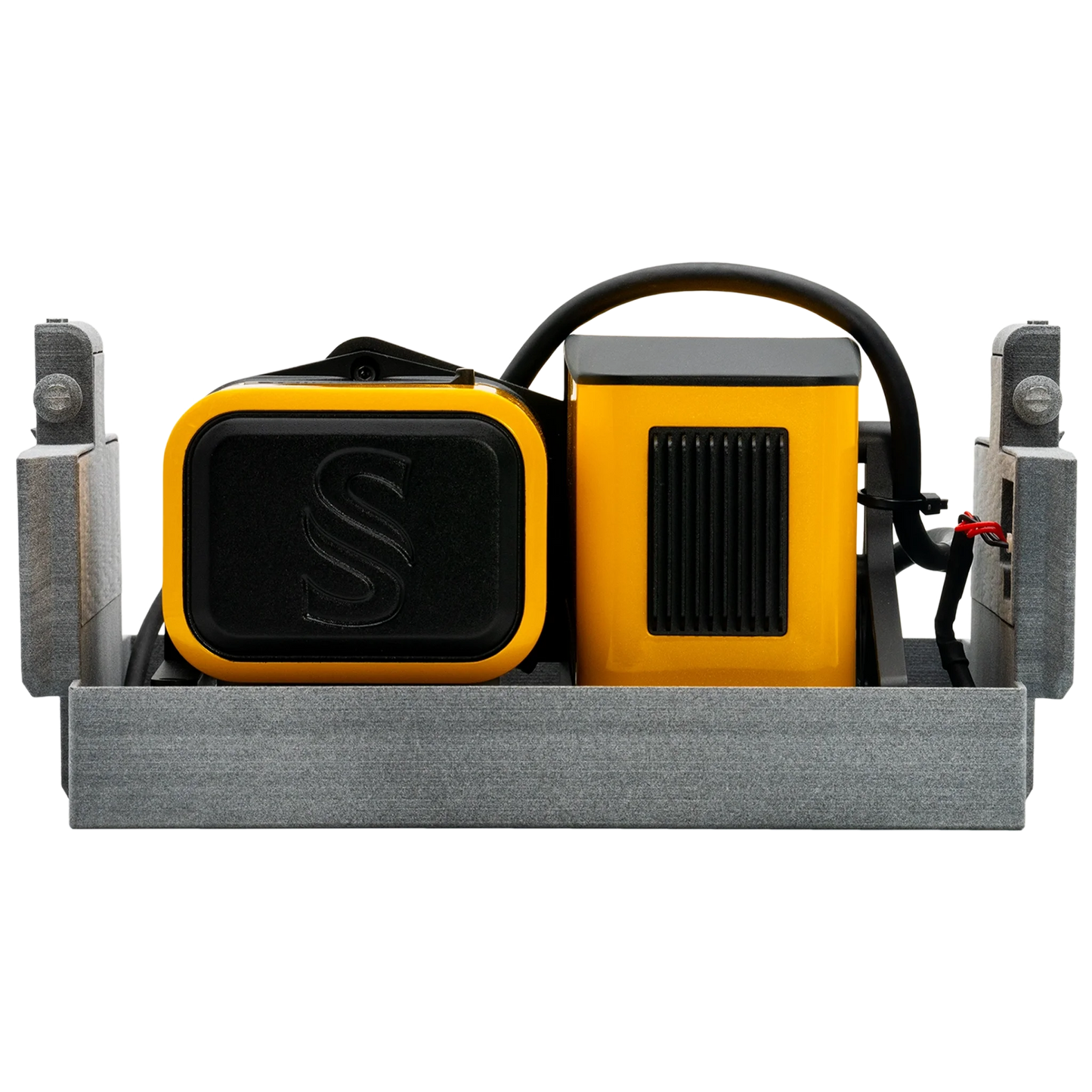

DeltaQuad - Yellowscan - Mapper+
DeltaQuad - Yellowscan - Mapper+

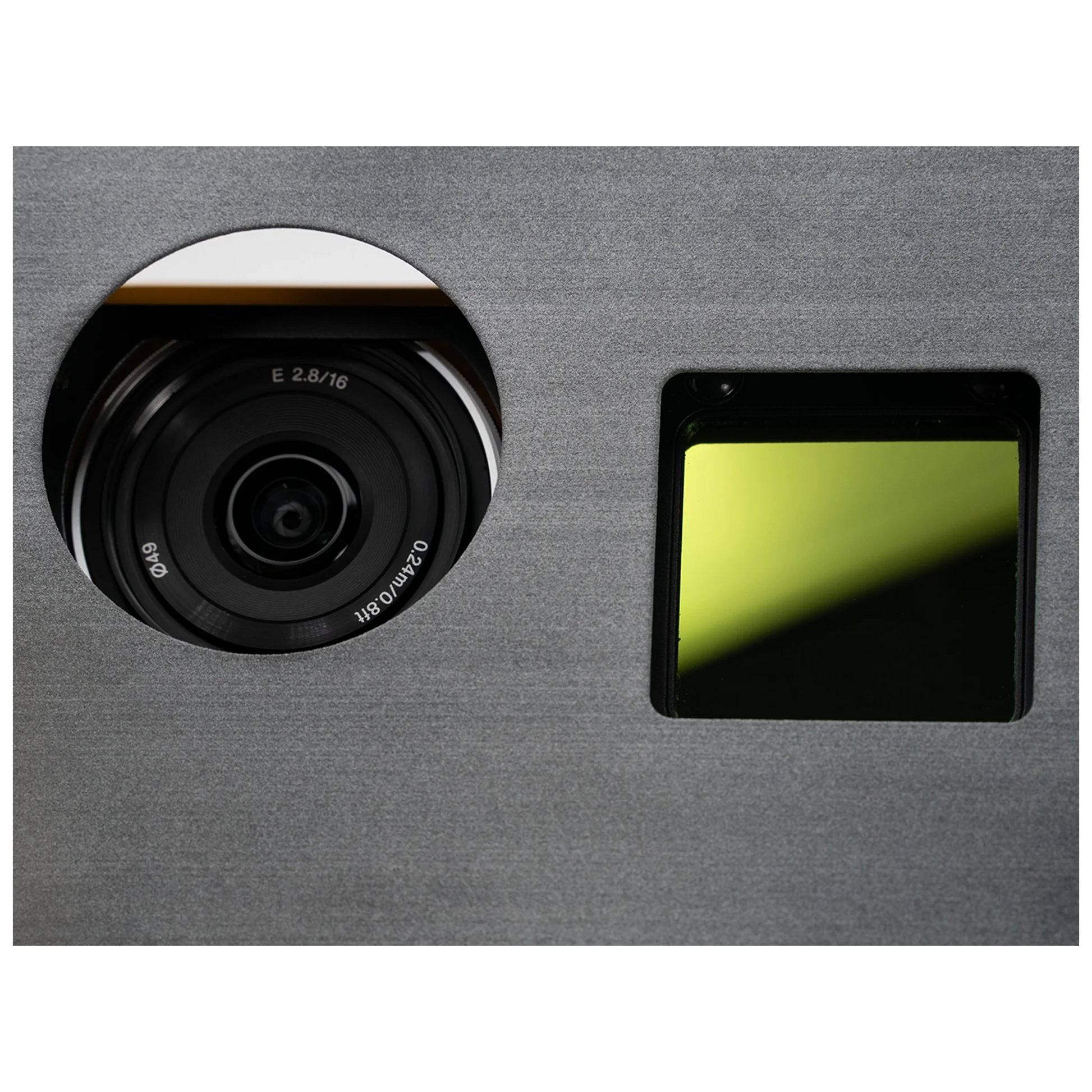

YellowScan Mapper+ OEM LiDAR and dedicated RGB payload is a great tool for mapping efficiently, combining compact design with powerful performance. It has a dedicated Sony APS-C size Exmor CMOS image sensor generates high-resolution orthomosaics alongside a LiDAR point cloud.
Mapper + turns Evo into a LIDAR survey powerhouse. With its 4+ hours of flight time and range up to 270 km, it is the ideal platform for comprehensive mapping.
Features
- "Max AGL altitude: 100m
- Precision x Accuracy: 3.5 cm x 4 cm
- Maximum coverage: 500 ha"
Specs
- Model name: Mapper+
- Laser scanner: Livox AVIA
- GNSS inertial solution: Applanix APX-15 UAV
- Laser wavelength: 905 nm
- Laser range: Up to 230 m
- Precision: 3.5 cm
- Accuracy: 4 cm
- Typical flight speed: 10 m/s
- Max. AGL altitude: 100 m
- Point density: 170 pts/sqm @ 100m AGL 10 m/s
- Scanner field-of-view: 70.4° x 4.5°
- Shots per second: Up to 240 k
- Echoes per shot: Up to 3
- Autonomy: 60 min
- Operating temperature: -10 to +40 °C
- Weight: 1.1 kg (2.4 lbs) battery excluded
- Size: L 150 x W 104 x H 132 mm
- Power consumption: 35 W
Please note, prices are susceptible to variations. The sales team at RMUS Canada can be contacted through email sales@rmus.ca or you can call us (416) 303-3575.
