Boston Dynamics

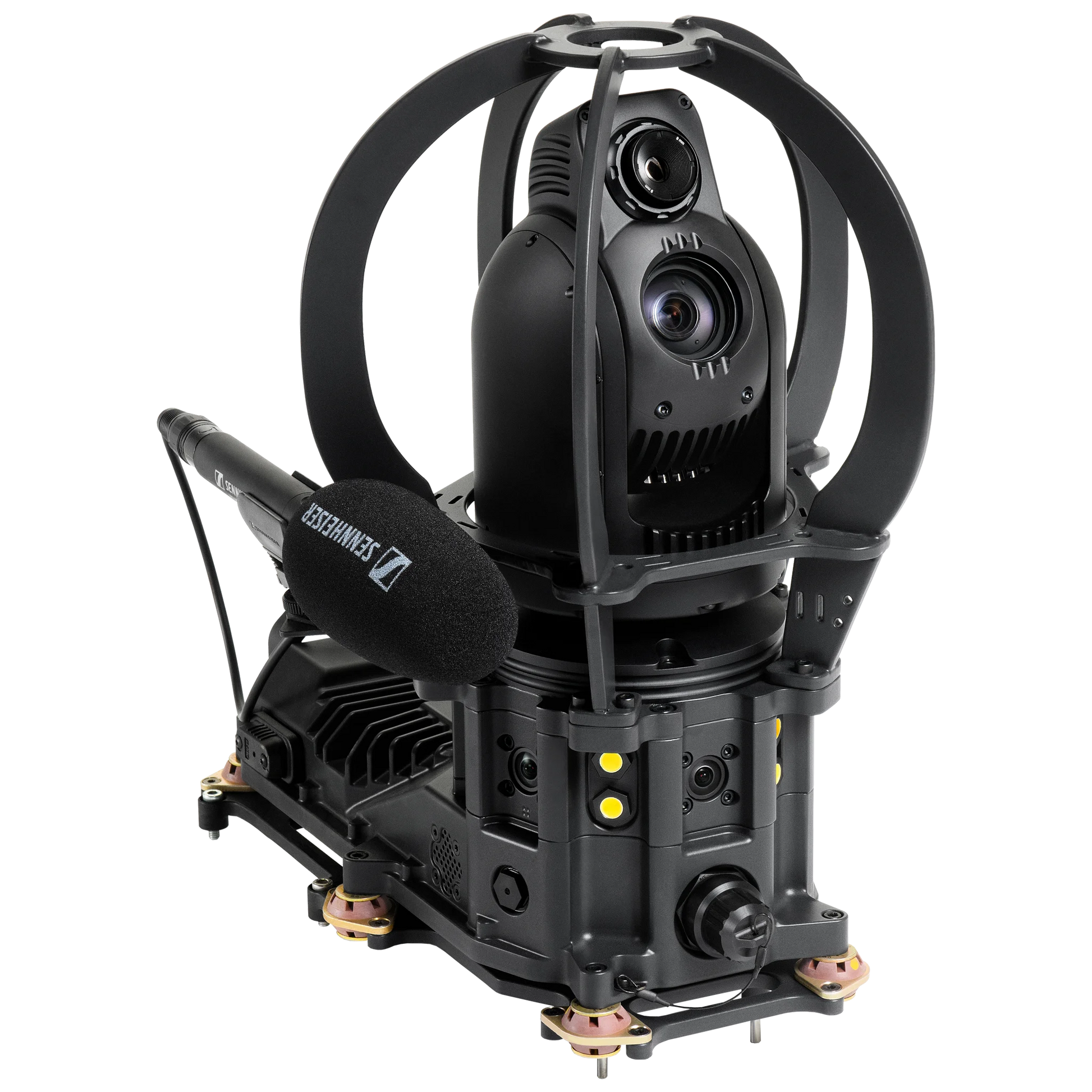

Boston Dynamics - CAM+ IR rear mount for Spot

Boston Dynamics - CAM+ IR rear mount for Spot

The Spot CAM+IR payload turns Spot into a powerful inspection tool with purpose-built cameras.
Use Spot CAM+IR to get eyes on remote or hazardous environments while focusing on inspection details that matter.

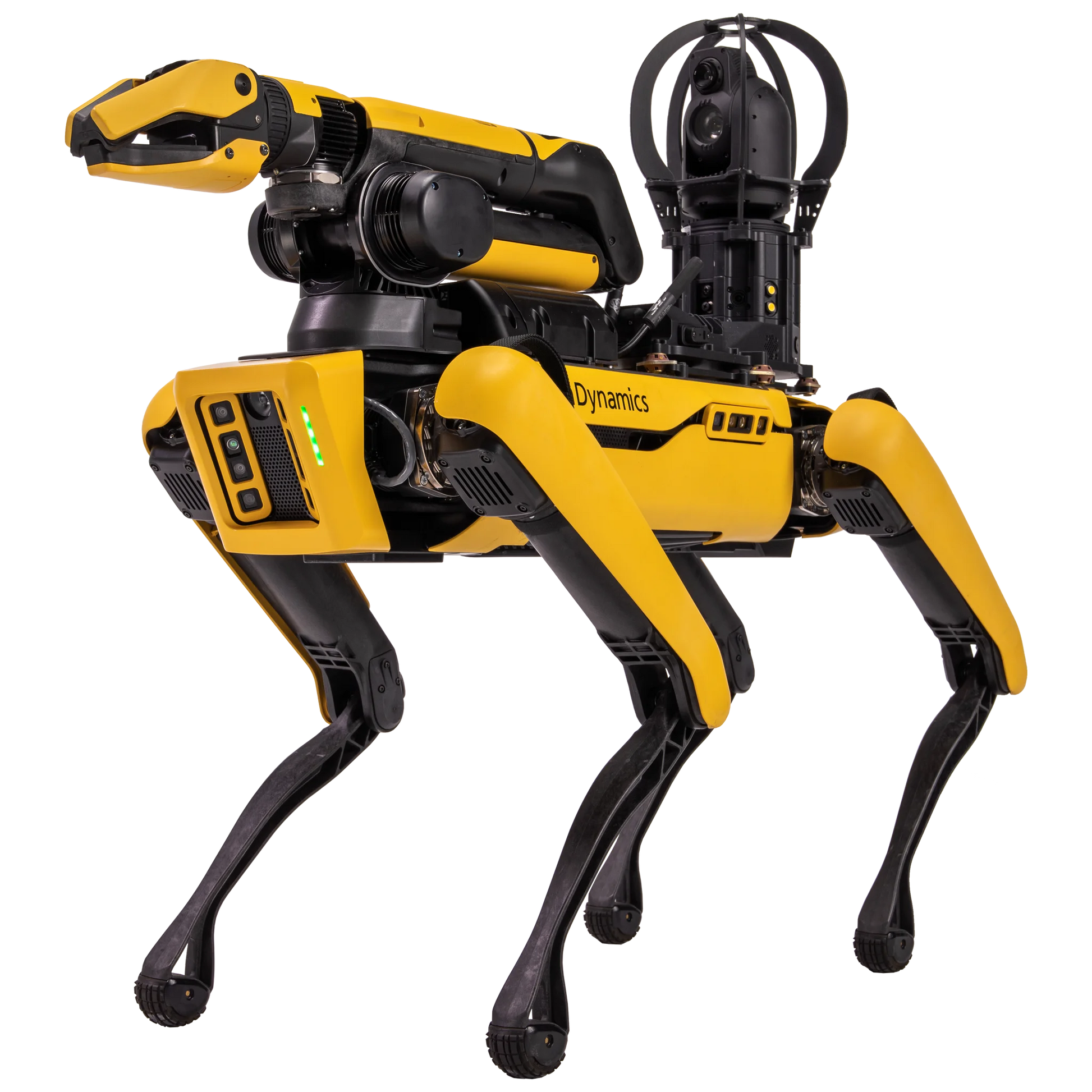

(Spot platform and arm sold separately)

Features

  • Integrated radiometric thermal camera.
  • Spherical camera. (360 x 170° view)
  • Pan-tilt-zoom (PTZ) camera with 30x optical zoom.
  • Two speakers and microphones enable two-way audio.
  • High-sensitivity microphone for auditory inspections.
  • Four pairs of LEDs provide illumination in dark environments.
  • Roll cage for crash protection.
  • USB port available for saving image data.
  • Protected cabling and sealed electronics.
  • Configuration options for front or rear mounting

What's in the box?

Spot CAM+ IR (Rear)

Specs

DIMENSIONS

  • Length: 334 mm (13.1 in)
  • Width: 227 mm (8.9 in)
  • Height: Rear Mount 427 mm (16.8 in)
  • Weight: Rear Mount: 8.0 kg (19.8 lbs)

360° CAMERA

  • Field of View (FoV): 360 x 170°
  • Video Frame Rate: Variable*
  • Video Storage: No
  • Video Streaming: Yes
  • Resolution: 10 MP
  • File Size: 31.1 MB
  • Still Image Format:  PPM (Portable Pixel Map)

PTZ CAMERA

  • Resolution: 2MP, 1080p video
  • Optical Zoom: 30x
  • Pointing Accuracy: 2 degrees
  • Range of Motion: 170°/sec
  • Tilt Range: -30 to 270°

IR CAMERA

  • Scene Temp. Range
  • (High Gain): -40°C to +160°C
  • (Low Gain): -40°C to +550°C
  • Video Speed: 7.5 Hz
  • FoV: 69 x 56°
  • Image Resolution: 640 x 512
  • Accuracy: Radiometric ±5°C

AUDIO

  • Input: Sennheiser MKE- 600 shotgun microphone
  • Storage: Removable 256 GB
  • USB 3.1

ENVIRONMENT

  • Ingress Protection: IP65
  • Operating Temperature: -20°C to 55°C

*Dependent on WiFi network signal strength.
