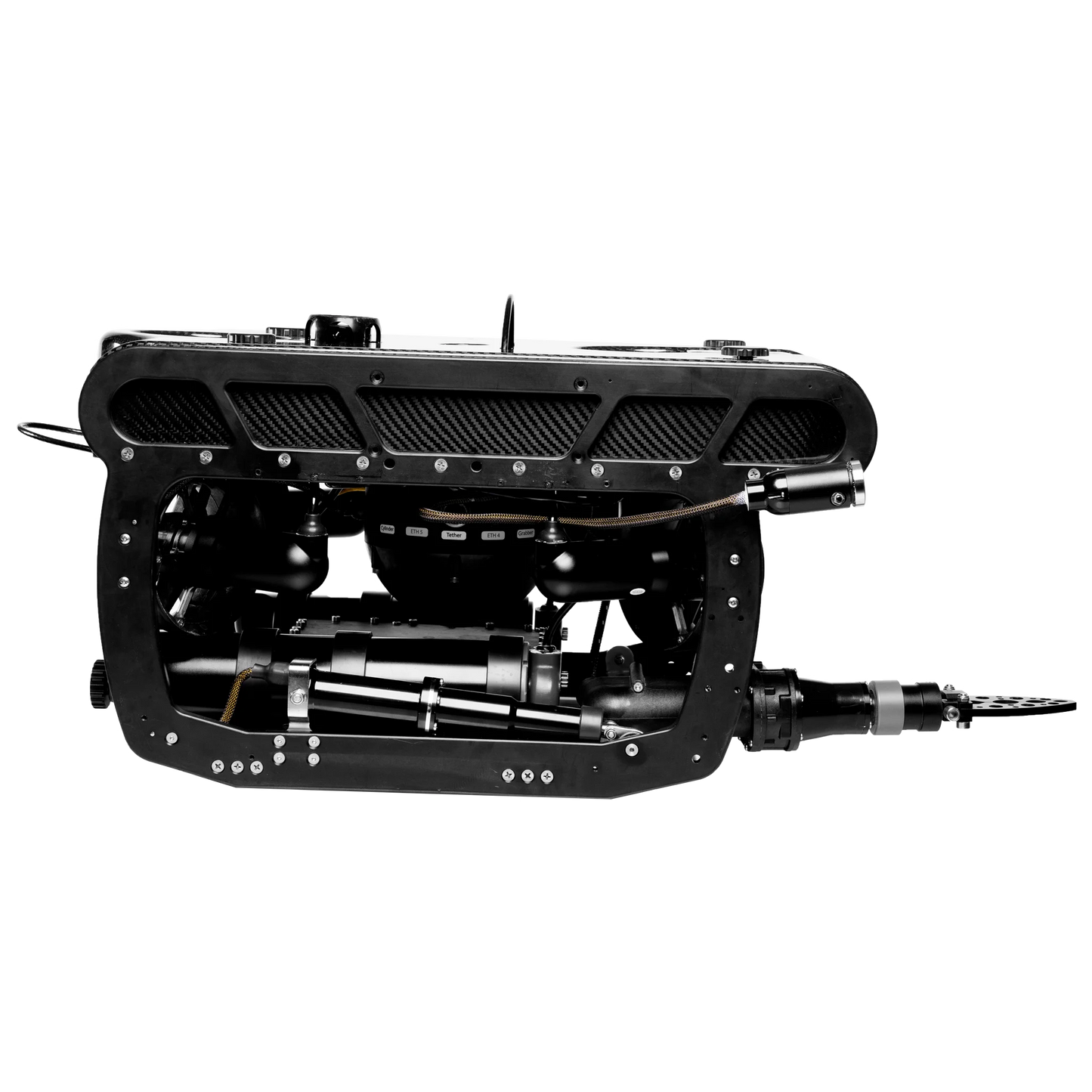

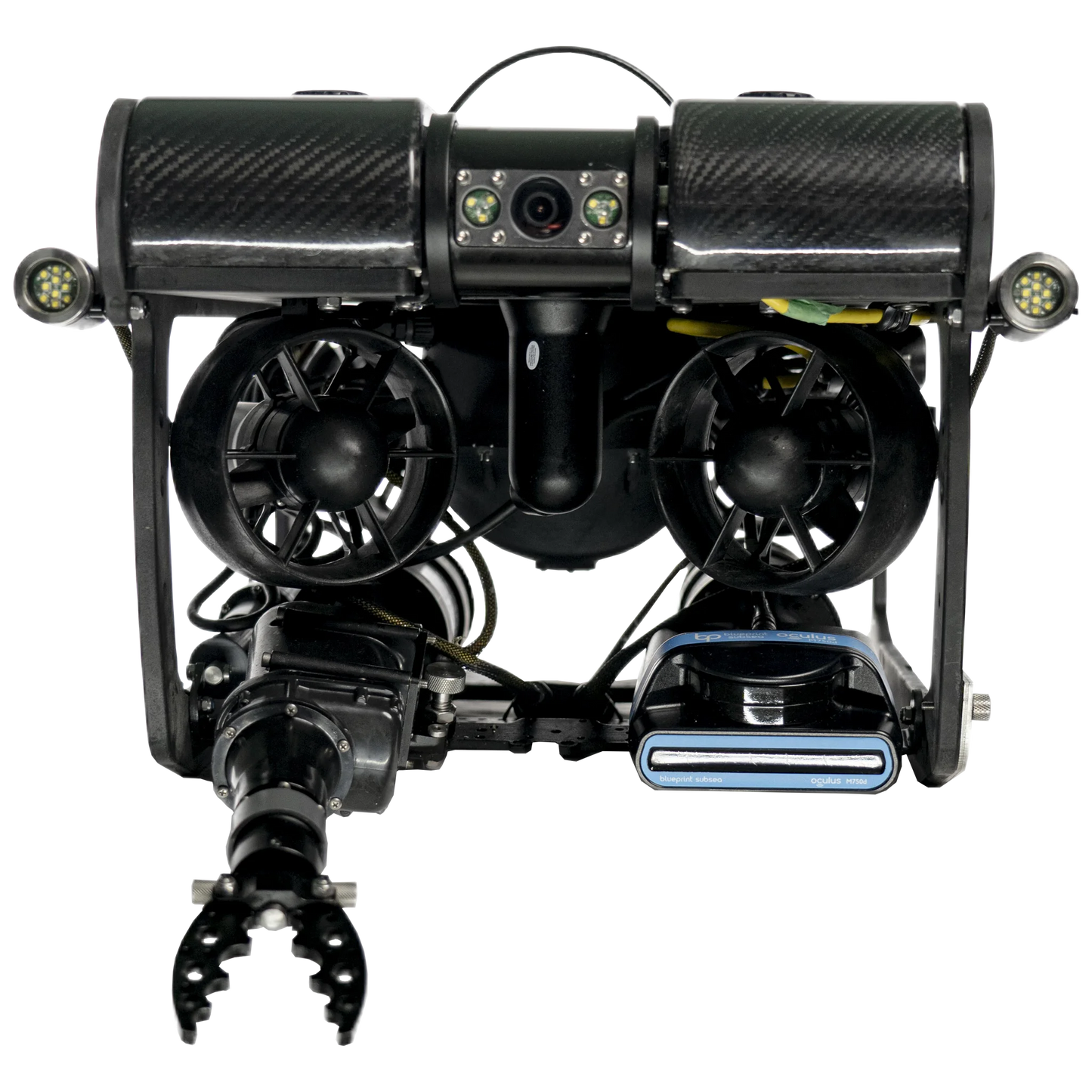

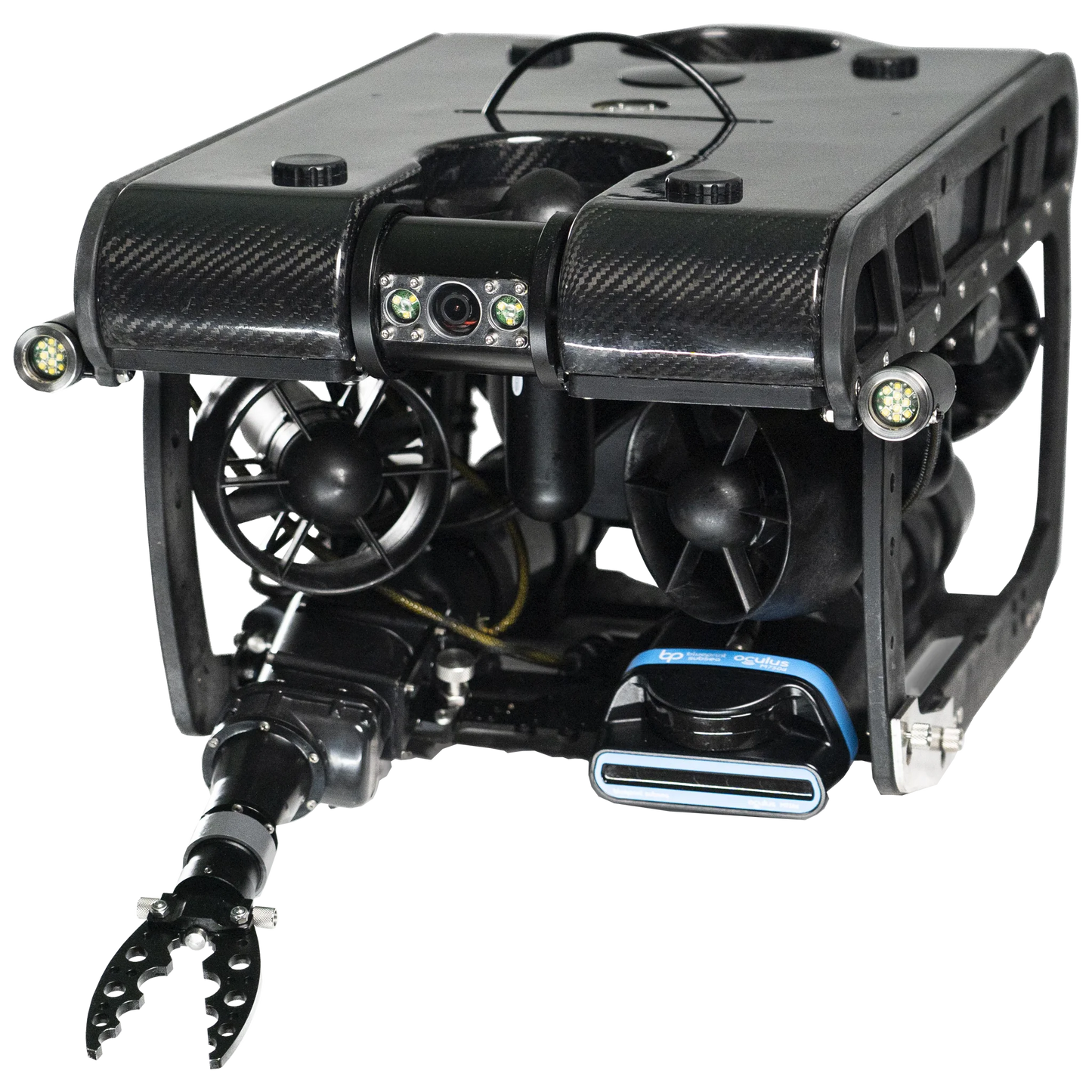

Pivot Smart Package

The perfect balance between size and power. Providing enhanced stability, greater power, speed and control in a portable package. The Pivot delivers innovation, stability, power, speed and control in a portable package. Utilizing innovative USBL positioning and DVL technology, the Pivot provides users with real time location data. Powered by Bridge Technology: An intelligent, technology platform from Deep Trekker. An operating system designed with custom hardware and software; for control, integration, communication and enhanced operation. Enable the ability to fuse all sensor data into one handheld, weatherproof controller. See posititional data, direct imaging sonar feed and more - allalongside the ROV live video feed.

Features

Rotating tool platform: Indepently revolve 97-degrees for manipulator, sonar and more. Field swap batteries: Quick-change batteries in the field for extended missions. Autonomous Capabilities: Seamlessly fusing all sensor data for autonomous control.

What's in the box?

PIVOT SMART Package: 7" Controller, 1080P Camera, 100M Tether, Reel, Sensor Package, AUX LED, 2 Carry cases, Microphone

Specs

• Width : 360 mm (14.2”)
• Height : 310 mm (12.2”)
• Length : 576 mm (22.7”)
• Weight (in air) : 16.7 kg (36.8 lb)
• Body Material : Anodized Machined Aluminum, Carbon Fiber, & Stainless Steel / Buoyancy Foam
• Window Material : Sapphire & Acrylic
• Depth Rating : 305 m (1000 ft)
• Operating Temp : -10°C to 50°C (14°F – 122°F)
• Case: Custom Pelican Air 1650 & 1560 / Handle and Wheels
• Drives/Thruster: Magnetically Coupled/Sealed
• Warranty : 1 Year – Parts and Labor (optional 2-3 yrs)

ROV Electrical System

• System Voltage : 19.6 VDC
• Battery Run Time : Up to 3 Hours (30-sec Battery Change)
• Battery Recharge : 1.5 Hours
• Thruster Control : 6x Independent Control / Infinitely Variable / 100% Reversible

Please note, prices are susceptible to variations. The sales team at RMUS Canada can be contacted through email at sales@rmus.ca or by phone (416) 303-3575.
