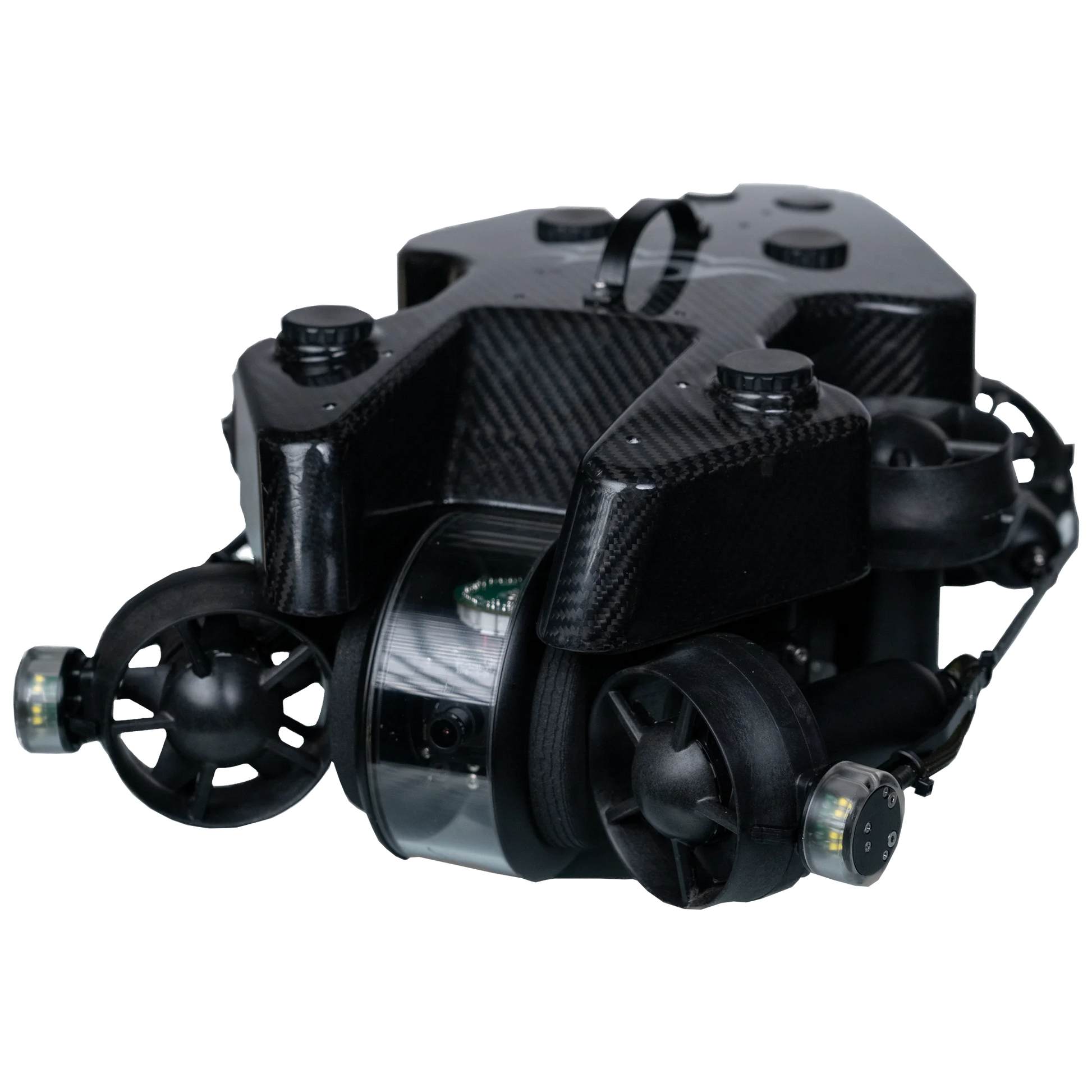

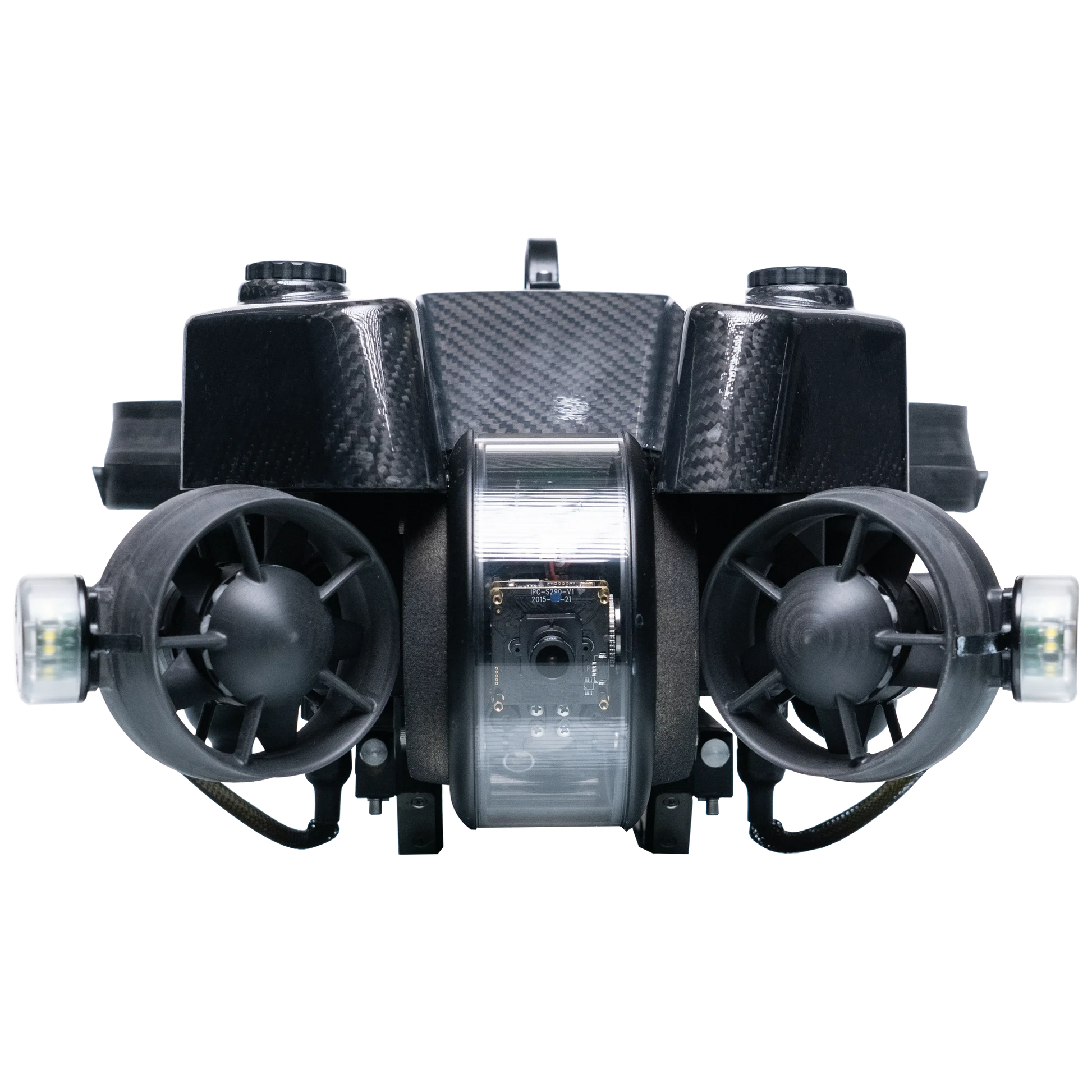

Photon Base Package

The small but mighty underwater survey sidekick. Photon ROVs may be little, but they are tough and reliable. The Photon offers users a lightweight option with advanced survey capabilities. The rotating enhanced 4K camera, six thruster design, and ability to expand with additional tools and sensors make this a great starting point for any ROV inspection operation. Powered by Bridge Technology: An intelligent, technology platform from Deep Trekker. An operating system designed with custom hardware and software; for control, integration, communication and enhanced operation. Enable the ability to fuse all sensor data into one handheld, weatherproof controller. See posititional data, direct imaging sonar feed and more - allalongside the ROV live video feed.

Features

• 6 Thruster stability
• Depth rating 120m
• 200 degree 4K rotating camera
• Intelligent sensors - depth, heading, temperature, and more
• Field swap batteries
• Direct power option available

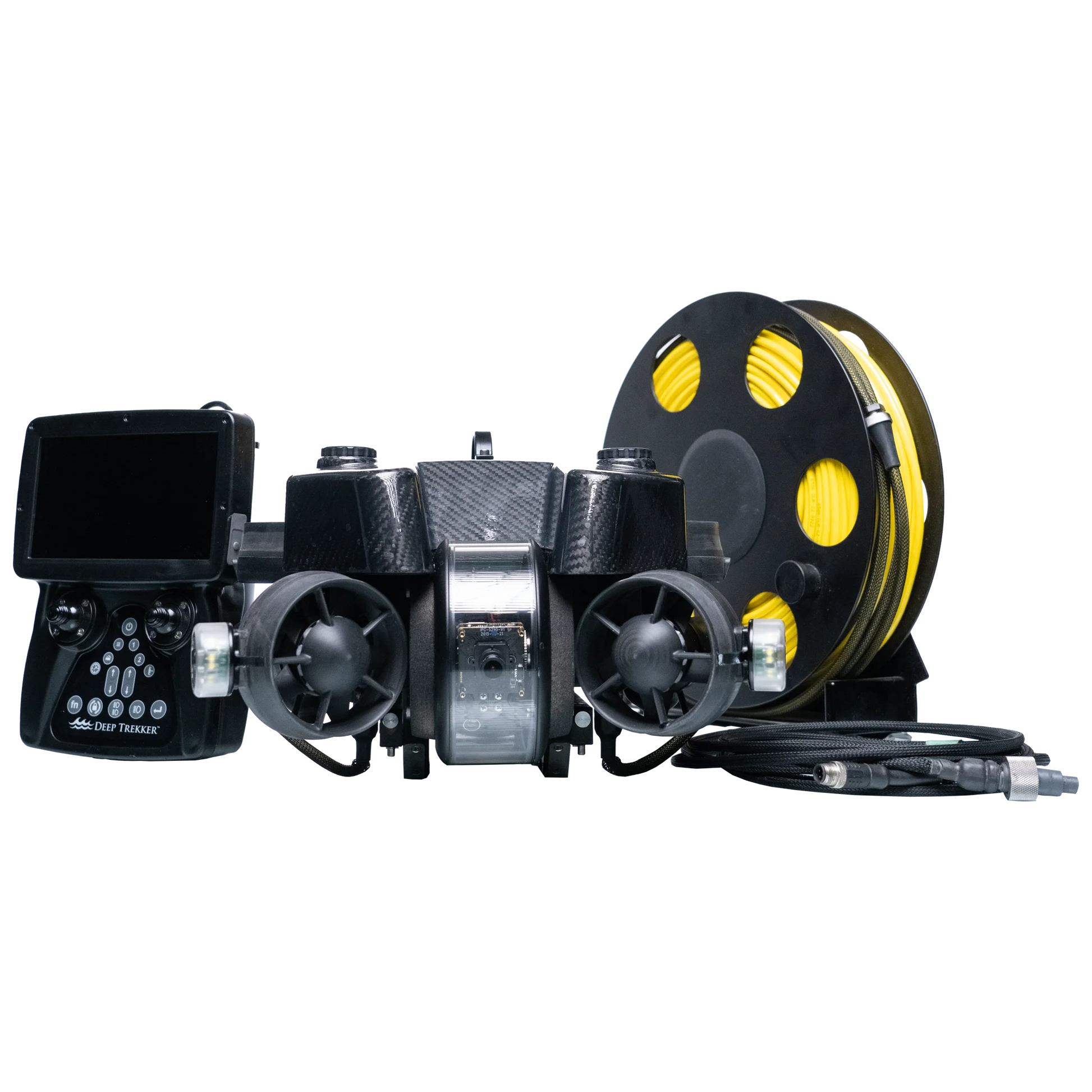

What's in the box?

7" controller, 4k uhd camera, laser scaler, 150m tether, reel, sensor package, 1 carry cases, microphone, led, 1 battery pack, 1 yr warranty

Specs

• Width: 333.2 mm
• Height: 228 mm
• Length: 480.6 mm
• Weight (in air): 10 kg (20 lbs)
• Body Material: Anodized Machined Aluminum, Carbon Fiber, Stainless Steel, & Buoyancy Foam
• Window Material: Acrylic Depth Rating: 120 m
• Operating Temp: -10°C to 50°C (14°F – 122°F)
• Case (optional): Custom Pelican Air 1650, Handle and Wheels
• Drives/Thruster: Magnetically Coupled/Sealed
• Tether Length Options: 300m, 500m, 850m, 2km

ROV Electrical System

• System Voltage: 19.2 VDC
• Thruster Control: 6 x Independent Control, Infinitely Variable, 100% Reversible

Please note, prices are susceptible to variations. The sales team at RMUS Canada can be contacted through email sales@rmus.ca or you can call us (416) 303-3575.
