Evolve Dynamics - Sky Mantis 2

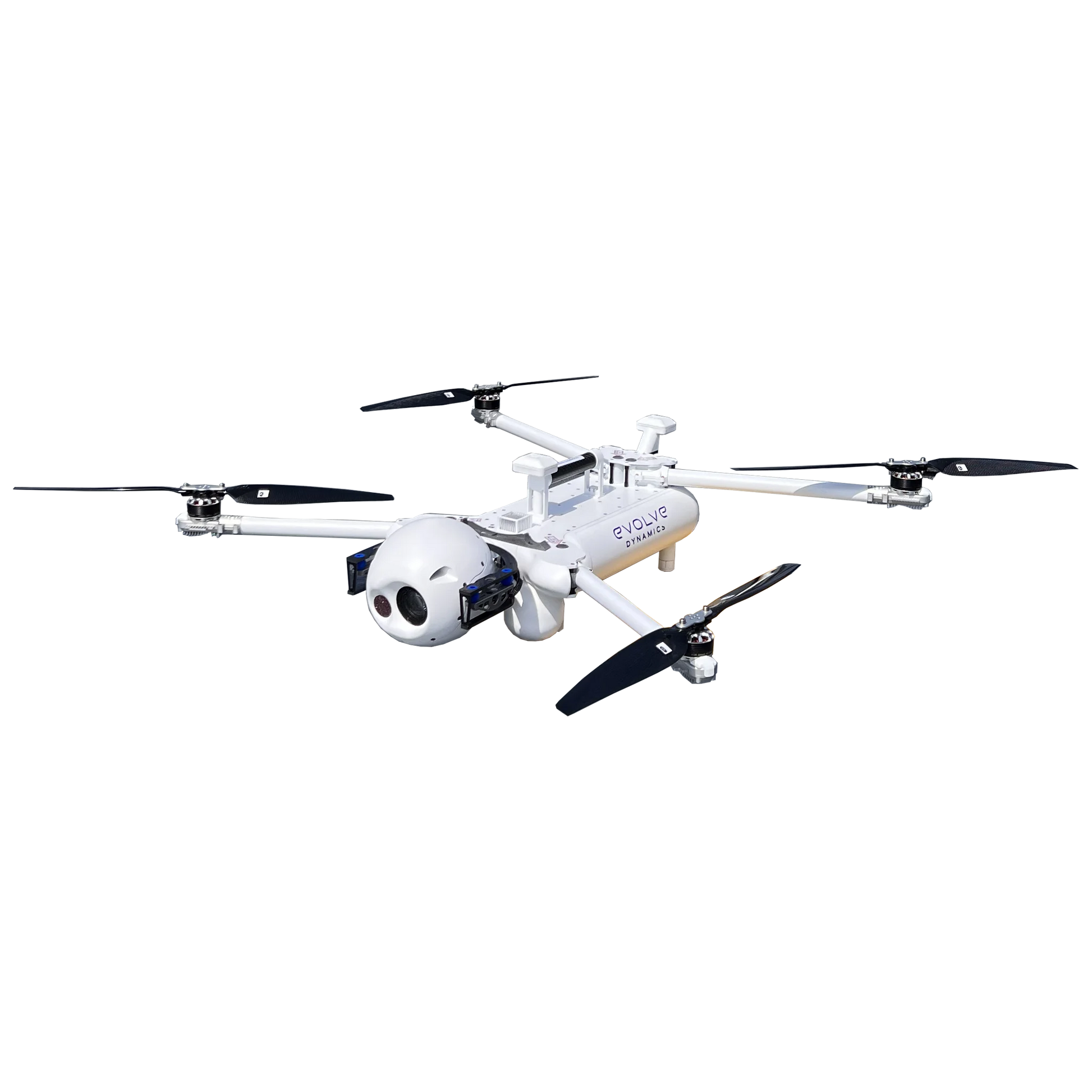

The Sky Mantis 2 is an electrically powered quadcopter UAS with advanced Intelligence, Surveillance, Target Acquisition, Reconnaissance (ISTAR) capabilities. Designed with open systems architecture in mind, relaying actionable data to enable rapid decision making. Optimized for poor weather and harsh climatic conditions.



Features

• 1 hour flight time / 48 hours on tether Extreme weather operability in temperatures of-30°C/+50°C, winds of 75 kmh / 46 Mph / 40 knots / 21 m/s, and heavy rain
• Rapid deployment of around 1 minute and fast battery swap
• Dual HD 30X zoom low light EO and 640x512
• 30FPS thermal as standard
• Single carry-all backpack with charger, GCS, aircraft and spare battery
• A range of task-specific payloads: 61 MP photography / mapping / surveying, OGI, Gas sniffer, IMSI catcher
• All-in-one GCS including radio and video screen
• Customisable payloads via modular quick release system



What's in the box?

In the Box:

1) Sky Mantis aircraft fuselage, including dual camera gimbal (with SM-DG-20 gimbal as standard), and 1x aircraft battery (up to 60 min flight time)
2) Ground control station ("GCS") and 1x GCS battery
3) Battery charging station (charges 2x aircraft batteries and 2x GCS batteries simultaneously)
4) Companion 1x 11" durabook 1000 nit tablet (incl mission planning app)

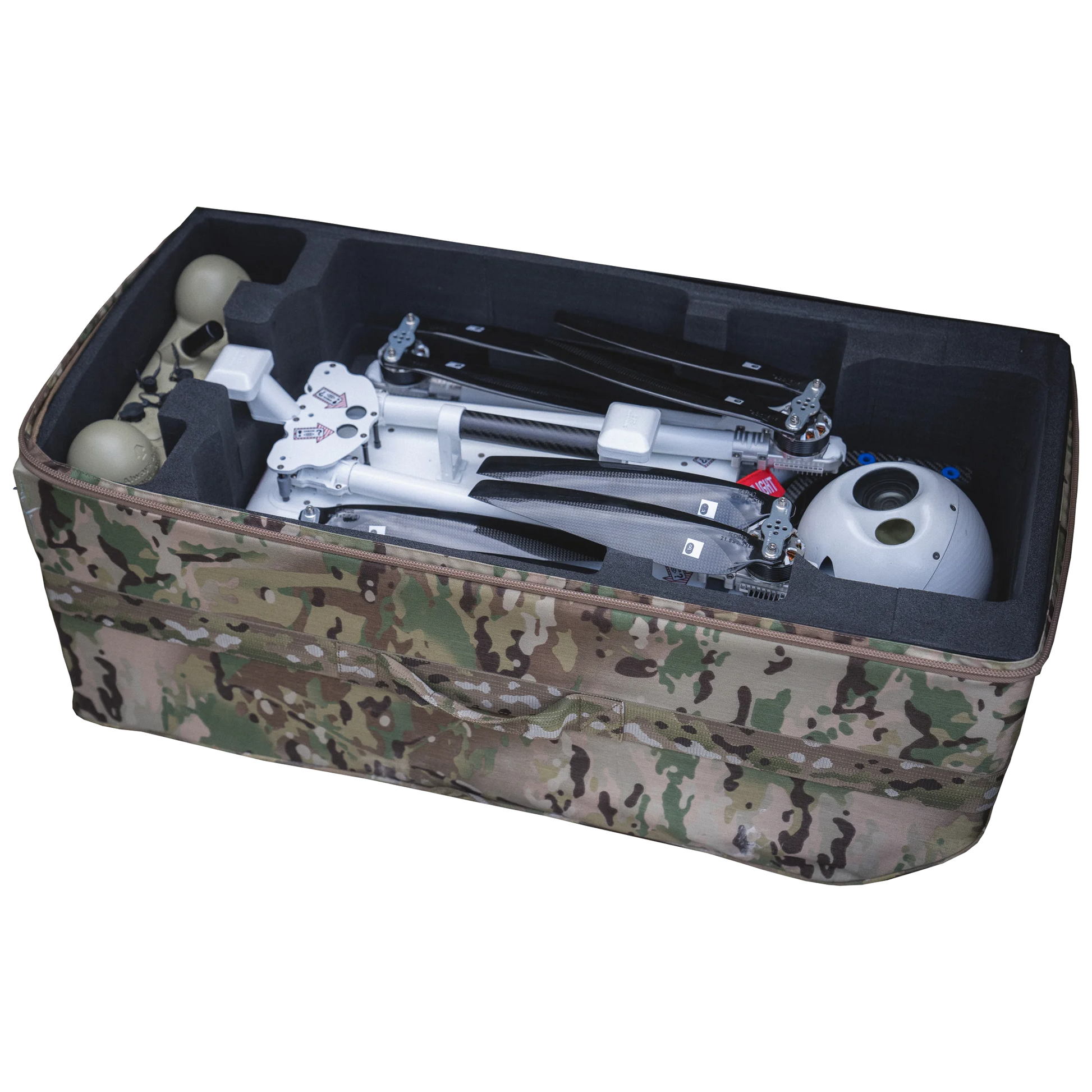

5) System carry rugged backpack
6) Wheeled hard case

Software Package:

1) Motion detection
2) 256 AES Encrypted Radio Link
3) Target tracking

Specs

• Infinity Tether Dimensions 400 x 250 x 445 mm / 14.55 kg
• Hard Case Dimensions 800 x 600 x 625 mm / 17.6 kg

TETHER UNIT

• Tether Ground Unit Weight: 13.2 kg
• Power Input: 230V / 220V / 110V
• Max Payload of Sky Mantis 2 (in addition to flight battery): 3 kg
• Maximum Flight Duration / Endurance: 48 hrs (Between recommended maintenance checks)
• Maximum Flight Duration (Free-Flying after dropping Tether): 30 mins
• Maximum Operating Altitude: 100 m
• Operating Temperature Range: -20°C to +45°C
• Max Wind Resistance: 31 knots
• Data Transfer Speed: 100 Mbps
• IP Rating: IP55

AIRSIDE UNIT

• Battery Weight: 2.4 kg
• Battery Voltage: 21.6 V
• Battery Capacity: 16.5 Ah



Please note, prices are susceptible to variations. The sales team at RMUS Canada can be contacted through email sales@rmus.ca or you can call us (416) 303-3575.
