DJI Matrice 30T SP - Basic

The DJI Matrice 30 is DJI Enterprise's flagship drone that fits in a backpack. It integrates multiple high-performance sensors into one single camera payload, is controlled with an ingenious redesigned remote control and runs on upgraded Pilot 2 software, which significantly improves the flight experience. The M30T features an additional 640x512 px radiometric thermal camera.

Up to 2 paid replacements can be offered whitin one year after the product is activated. In addition, it also comes with 1 standard maintenance service.

Features

Integrated Wide, Zoom, and Infrared cameras with a Laser Rangefinder sensor IP55 ingress protection, and -20° C～50° C temperature operation range Lightweight and portable, for those who are mobile Remote control is tailor-made for enterprise users 41-Min Max. Flight Time Compatible with FlightHub 2 for efficient ground-to-cloud synergy Support remote deployment operations with DJI Dock

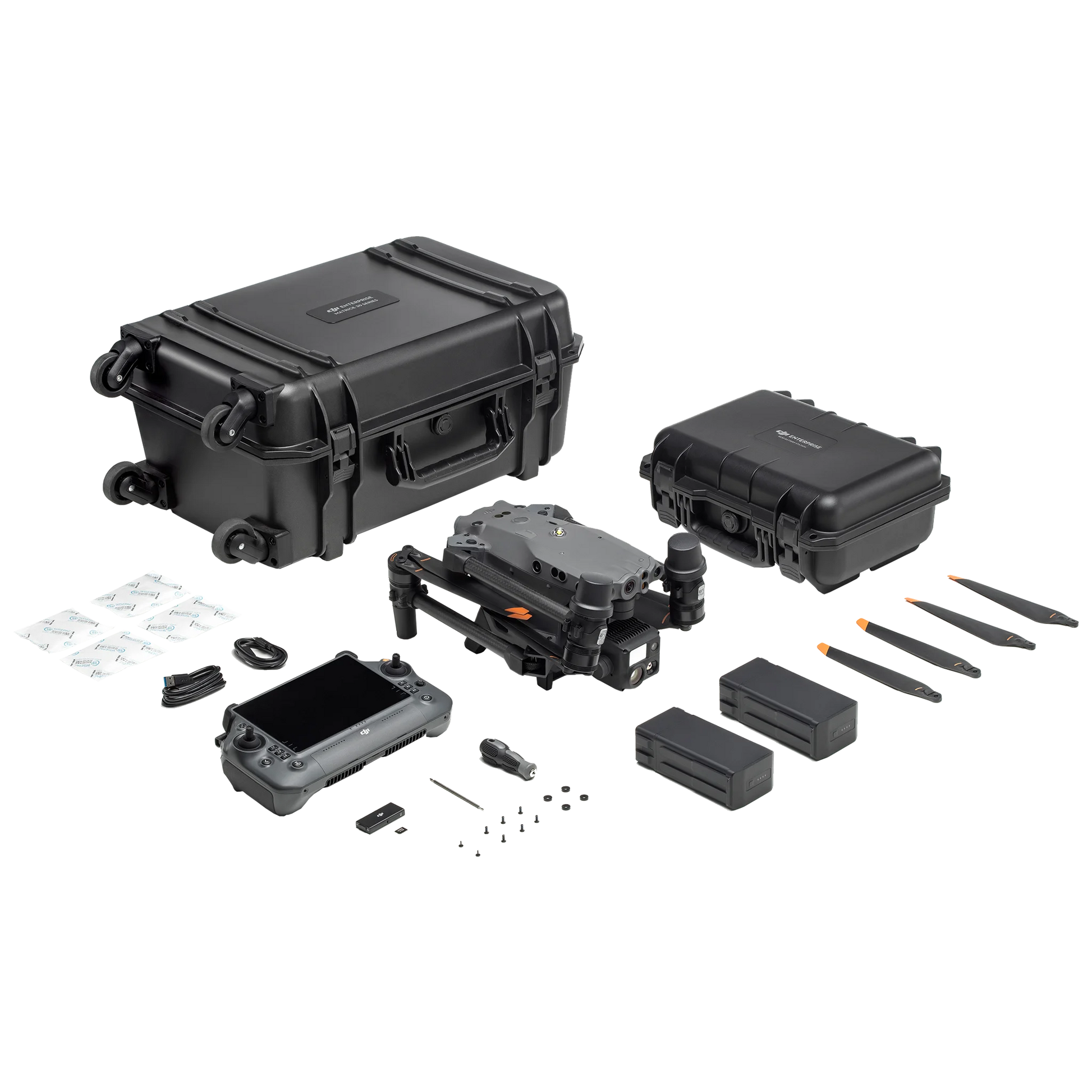

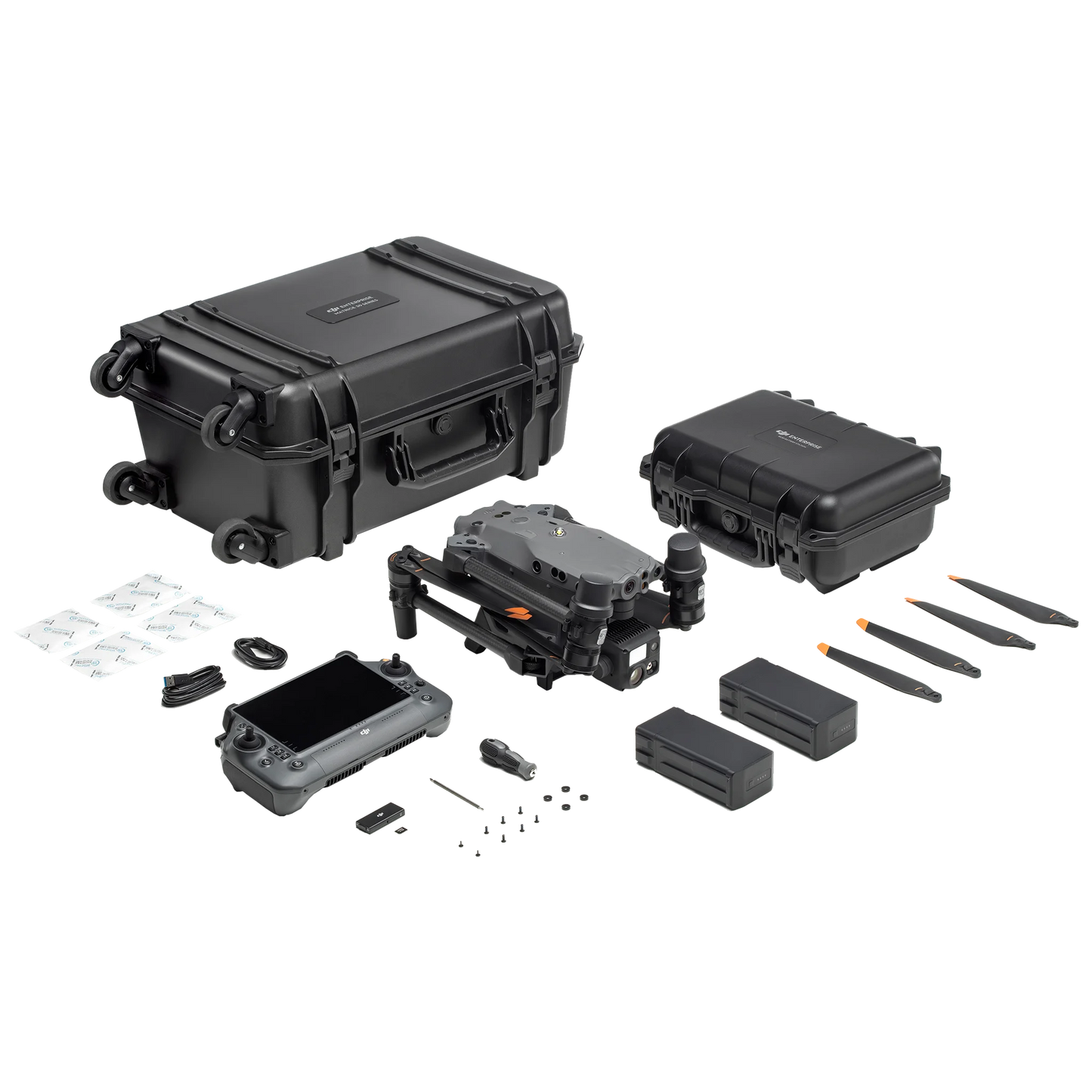

What's in the box?

• DJI Matrice 30T Enterprise Drone
• BS30 Battery Station
• RC Plus Remote Controller
• Storage Case
• DJI 1-Year Care Enterprise Basic with ADP for Matrice 30T
• Pair of 1671 Propellers (CW)
• Pair of 1671 Propellers (CCW)
• USB Type-C Cable
• USB Type-C to USB Type-C Cable
• Carrying Case
• Screws & Tools

Specs

Aircraft

• Dimensions (unfolded, excl. propellers): 470×585×215 mm (L×W×H)
• Dimensions (folded): 365×215×195 mm (L×W×H)
• Weight (incl. two batteries): 3770 ± 10 g
• Max Takeoff Weight: 4069 g
• Max Takeoff Weight for C2 Certification in EU: 3998 g
• Hovering Accuracy (windless or breezy): Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK) Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK)
• RTK Positioning Accuracy (fixed RTK enabled): 1 cm+1 ppm (horizontal) 1.5 cm+1 ppm (vertical)
• Max Angular Velocity: Pitch: 150°/sec.; Yaw: 100°/sec.
• Max Pitch Angle: 35° (N-mode and Forward Vision System enabled: 25°)
• Max Tilt Descent Speed: 7 m/s
• Max Horizontal Speed: 23 m/s
• Max Hover Time: 36 min
• Max Flight Time: 41 min
• Ingress Protection Rating: IP55
• Operating Temperature: -20° to 50° C (-4° to 122° F)

Zoom Camera

• Sensor: 1/2" CMOS, Effective pixels: 48M
• Lens: Focal length: 21-75 mm (equivalent: 113-405 mm)

Electronic Shutter Speed

• Auto Mode: Photo: 1/8000-1/2 s - Video: 1/8000-1/30 s
• M Mode: Photo: 1/8000-8 s - Video: 1/8000 -1/30 s
• ISO Range: 100-25600
• Max. Video Resolution: 3840×2160
• Max Photo Size: 8000×6000

Wide Camera

• Sensor: 1/2" CMOS, Effective pixels: 12M
• Lens: DFOV: 84°

Electronic Shutter Speed

• Auto Mode: Photo: 1/8000-1/2 s - Video: 1/8000-1/30 s

M Mode: Photo: 1/8000-8 s -Video: 1/8000-1/30 s

• ISO Range: 100-25600
• Max. Video Resolution: 3840×2160
• Photo Size: 4000×3000

Thermal Camera

• Thermal Imager: Uncooled VOx Microbolometer
• Lens: DFOV: 61°
• Focal length: 9.1 mm (equivalent: 40 mm)
• Aperture: f/1.0
• Focus: 5 m to ∞
• Noise Equivalent Temperature Difference (NETD): ≤50 mK@F1.0
• Infrared Temperature Measurement Accuracy: ±2°C or ±2% (using the larger value)

Video Resolution: Infrared Image Super-resolution Mode: 1280×1024 - Normal Mode: 640×512

Photo Size: Infrared Image Super-resolution Mode: 1280×1024 - Normal Mode: 640×512

• Pixel Pitch: 12 um
• Temperature Measurement Method: Spot Meter, Area Measurement
• Temperature Measurement Range: High Gain Mode: -20° to 150° C (-4° to 302° F) - Low Gain Mode: 0° to 500° C (32° to 932° F)
• Temperature Alert: Supported
• Palette: White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2

FPV Camera

• Resolution: 1920×1080
• DFOV: 161°
• Frame Rate: 30 fps
