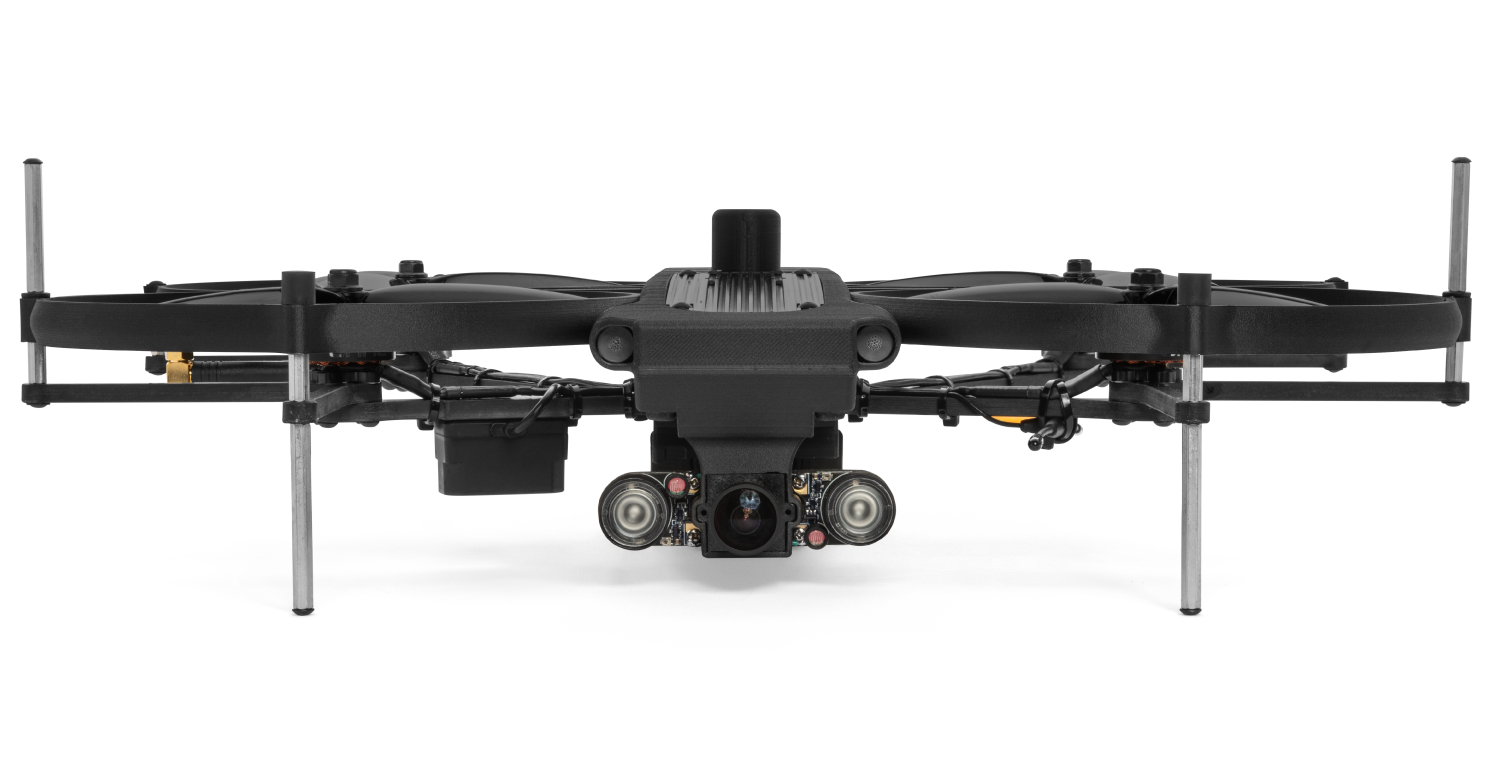

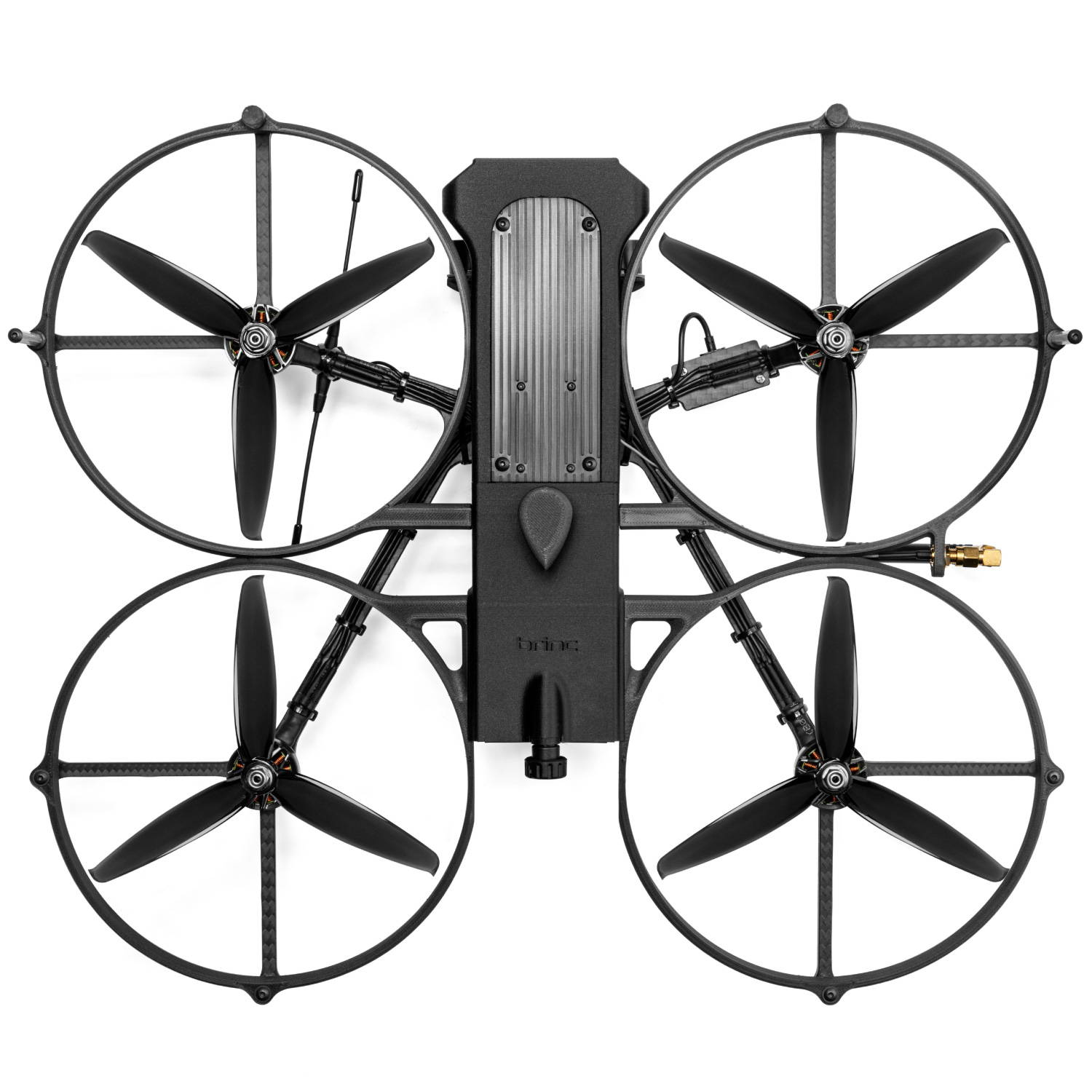

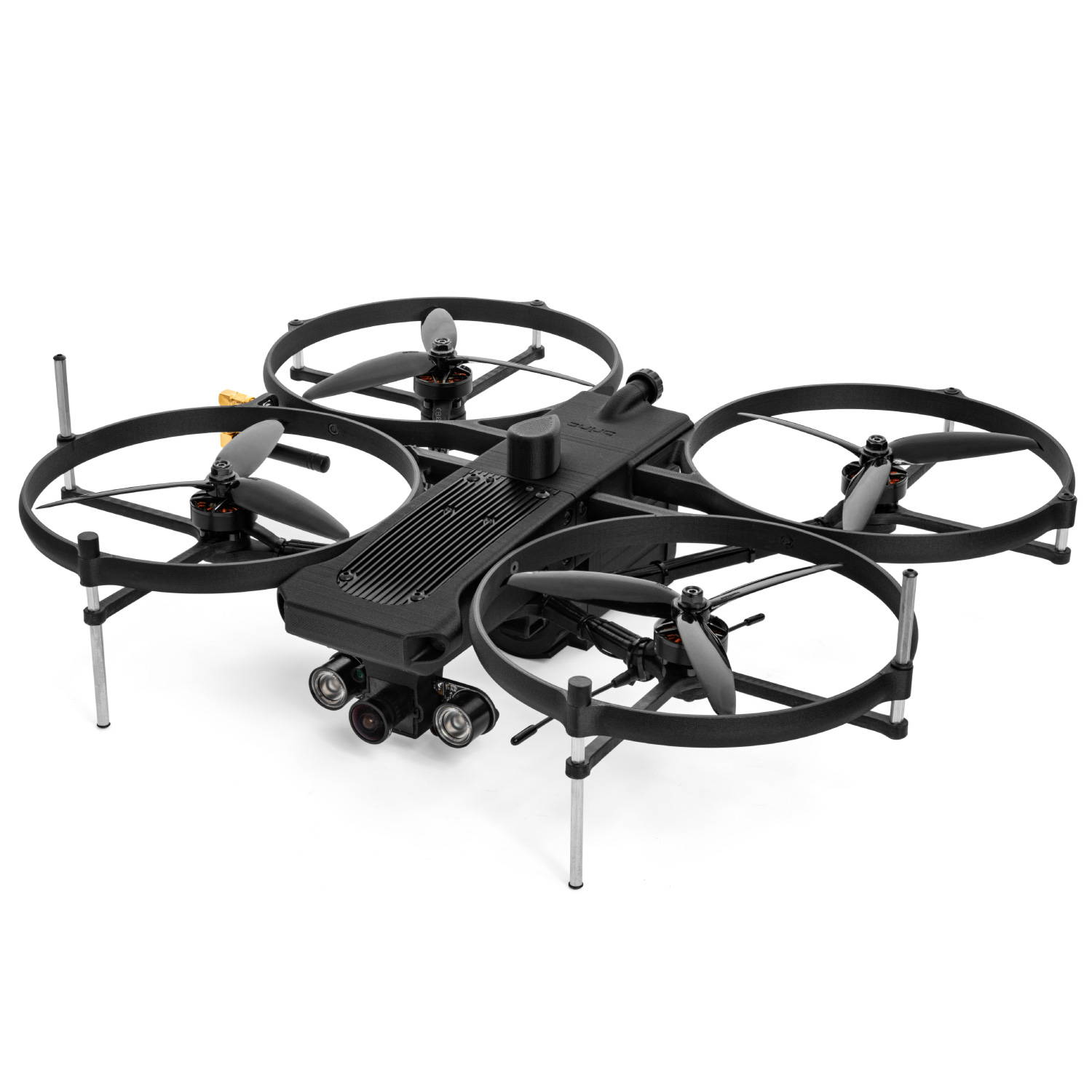

BRINC LEMUR S

Indoor Tactical Drone

BRINC LEMUR S - Indoor Tactical Drone

Product Description

The BRINC LEMUR S is a game-changing aerial unmanned system for Law Enforcement, Fire, SAR and Hazmat Response teams. The LEMUR S was specially designed to operate in challenging interior environments and is equipped with numerous proprietary technologies to ensure ongoing operations and reconnaissance capabilities.


The BRINC LEMUR S is designed and manufactured in the USA and is therefore exempt to any future bans on Chinese-made unmanned systems.


The BRINC LEMUR S Indoor Tactical Drone package includes the following items:

  • 1X LEMUR Drone S Aircraft
  • 2X LEMUR Drone Batteries
  • 1X Day / Night Vision IR Camera Module
  • 1X BRINC Controller (with external transmitter module, high gain antenna and tethering cable for training)
  • 1X Multi-Charger (with cable set)
  • 1X Battery Charge State Monitor
  • 4X 64GB Class 10 Micro SD Cards (for recording high-quality drone video locally)
  • 1X Toolkit (containing an allen key set, Phillips screwdriver, prop nut tool, crescent wrench, pair of tweezers, pair of side cutters, pair of needle nose pliers, zip tie kit, ca glue bottle and a bottle of ca glue accelerator)
  • 1X Spare Parts Kit (containing 2 sets of 4 spare props, 2 spare IR lenses, 2 spare self-righting standoffs, 2 spare optics pod standoffs, 2 spare prop nuts, 1 spare camera lens)
  • 1 spare video TX antenna (1 spare cell antenna, 1 spare cell antenna 90° adapter, 1 spare battery thumb screw, 4 spare battery foam pads, 1 spare speaker foam pad, 4 spare standoff threaded rods, 2 spare duct bumpers and 2 spare duct arm frame components)
  • 1X Custom Pelican Case
  • One (1) Day Training Course

Please call for price quote: 800-793-3548


Product Specs

Drone Specifications

31-Minute Flight Time
The LEMUR S's novel battery technology is based on Lithium-ionchemistry and allows for a best-in-class flight time.

10-Hour Perch Time
With nearly a half-day perch time, the drone can be operationalwhile idle with fully functional audio and video.

Battery
Can be charged to 90% in 45-minutes

Dimensions
(L×W×H)12.7 x 15.2 x 3.7in (32.4 x 38.6 x 9.6cm)

Weight
2.4lbs (1.1kg)

Operating Temperature
-20°F to 120°F (-29°C to 49°C)

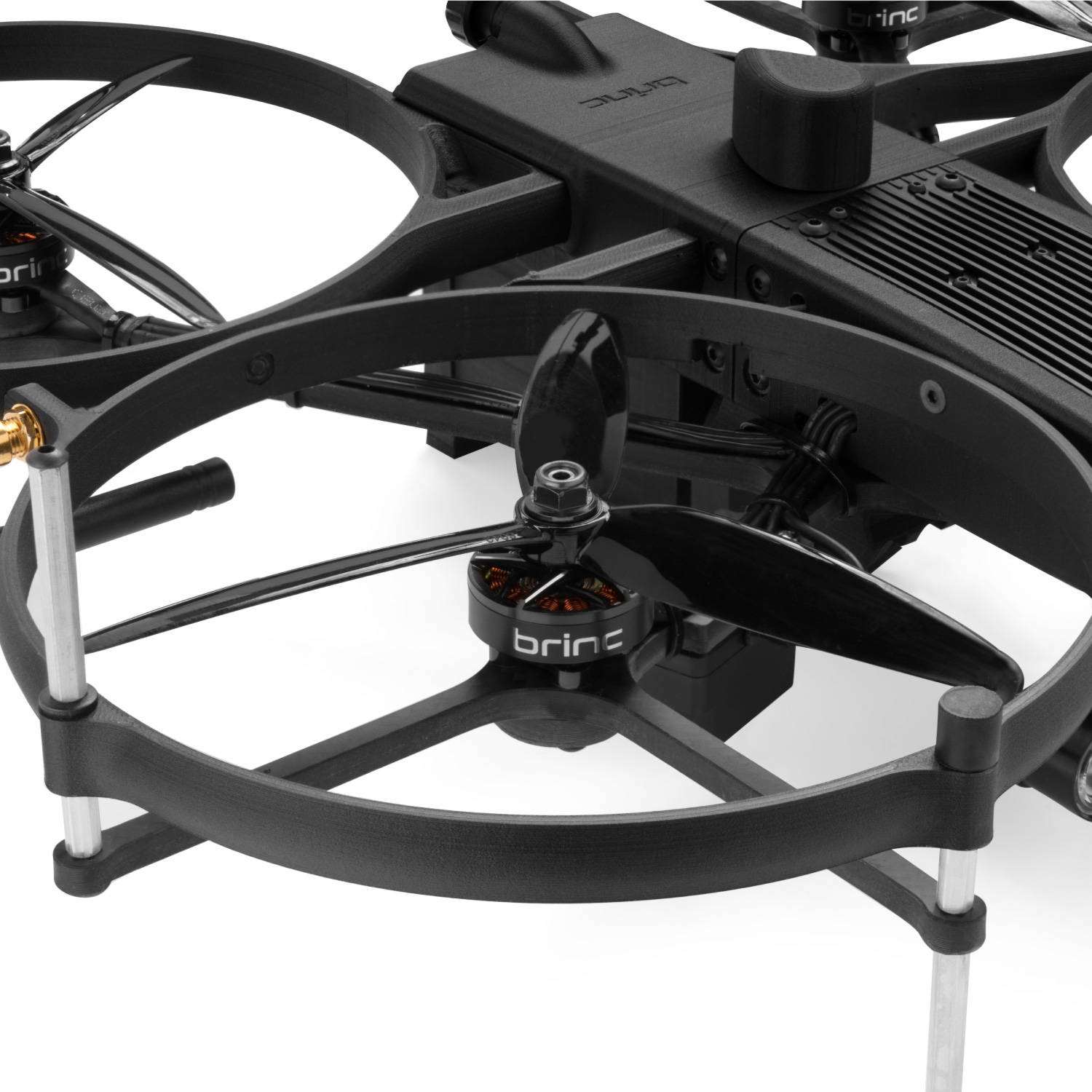

Airframe Specification
Fully enclosed props (enabling the drone to bounce off walls andto push open doors ), 3D printed carbon fiber reinforced nylonPA6 drone body/ducts, CNC machined prepreg carbon-fibermotor arms/duct frame

Max Speed
50mph (80.5km/h)

Maneuverability
Precise, high-performance maneuverability (3g maximumacceleration, 2G maximum vertical acceleration)Two-way CommunicationLEMUR S comes equipped with a powerful two-waycommunication system. Our drone is a flying cell phone

Onboard Microphone
Set of two ultra-sensitive electret condenser microphones enablethe drone to hear human voices, footsteps, and doors closing upto 100 feet away.

Day/Night-Vision System
Interchangeable camera payloads include a 1080p at 60fpshigh/low light capable camera sensor, wide FOV IR sensitive mainlens, integrated night-vision optics switcher, integrated highpoweredIR LEDs, ambient light sensor (automatically changescamera software settings to rapidly compensate to changinglighting conditions) the drone can see perfectly in every lightingcondition, including truly zero light.

Video Transmission System
Encrypted, near-zero latency encrypted, high-materialpenetration wireless video transmission system with a line ofsight transmission range in excess of 8mi (13km) and multireceivercapability.

Local Video Storage
Onboard micro SD card slot for recording high-quality video andaudio logs for evidence, 64GB Class 10 micro SD cards includedand required for operation. Redundantly recording in VRheadset.

Turtle Mode
Crashes don't end missions with our platform. If the LEMUR Sends up on its back it can flip itself over and relaunch to finish amission.

Water Resistance
Designed to operate in wet and rainy conditions without issue(conforming to IP 24 guidelines based on internal testing).

Accessory Mount
Includes accessory mount that can accommodate a:
- General Purpose Dropper
- Motorized Tungsten Carbide Glass Breaker Accessory
- High Power Light Accessory
- Landing strip Drone Mount with 3M VHB tape backing
- Made to order custom accessory

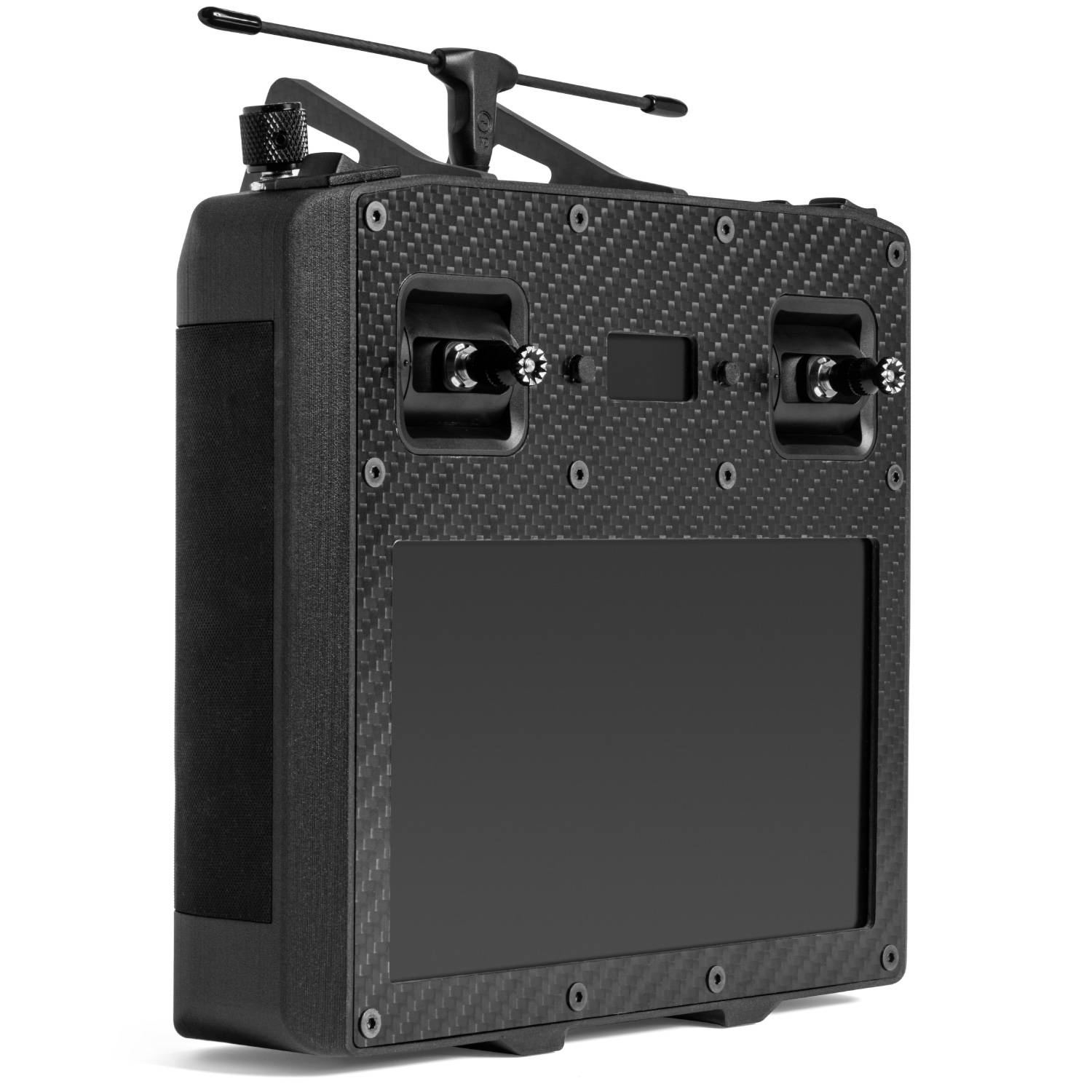

Controller
Proprietary handheld controller with CNC machined aluminumhall effect sensor gimbals, 7-inch built-in LCD screen, carbonfiber frame, thoughtful ergonomics, and a powerful, highpenetrationRC transceiver.

VR Headset
Top-of-the-line VR headset peripheral for superior pilotemersion and focus in non-sterile operating environments (thedrone can transmit video streams to multiple receivers, includingVR headsets and/or command station monitors).

Drone Video Receiver
The video receiver/repeater box is a small form factor,magnetized Pelican case that can be easily attached to anythingmetal or mounted to a tripod. The box improves droneoperating range/material penetration and transmits live video tocommand station displays.

Secure Data Links
Data only leaves the BRINC ecosystem when a physicalconnection is made to the hardware, further ensuring datasecurity. All drone communications are secure and encryptedutilizing AES 128/ other confidential technologies.

BRINC is an American technology company building a new class of drones to keep people safe in dangerous situations. BRINC creates highly-reliable systems with the advanced ability to fly indoors and provide 2-way communication, to protect first responders and citizens.

Turtle Mode

If the LEMUR S ends up on its back, it can flip itself over with its patented “Turtle Mode” technology and continue the mission.

10-Hour

“Perch Time”

The LEMUR S is operational at idle and can provide full audio and visual awareness for up to ten (10) hours on a single battery.

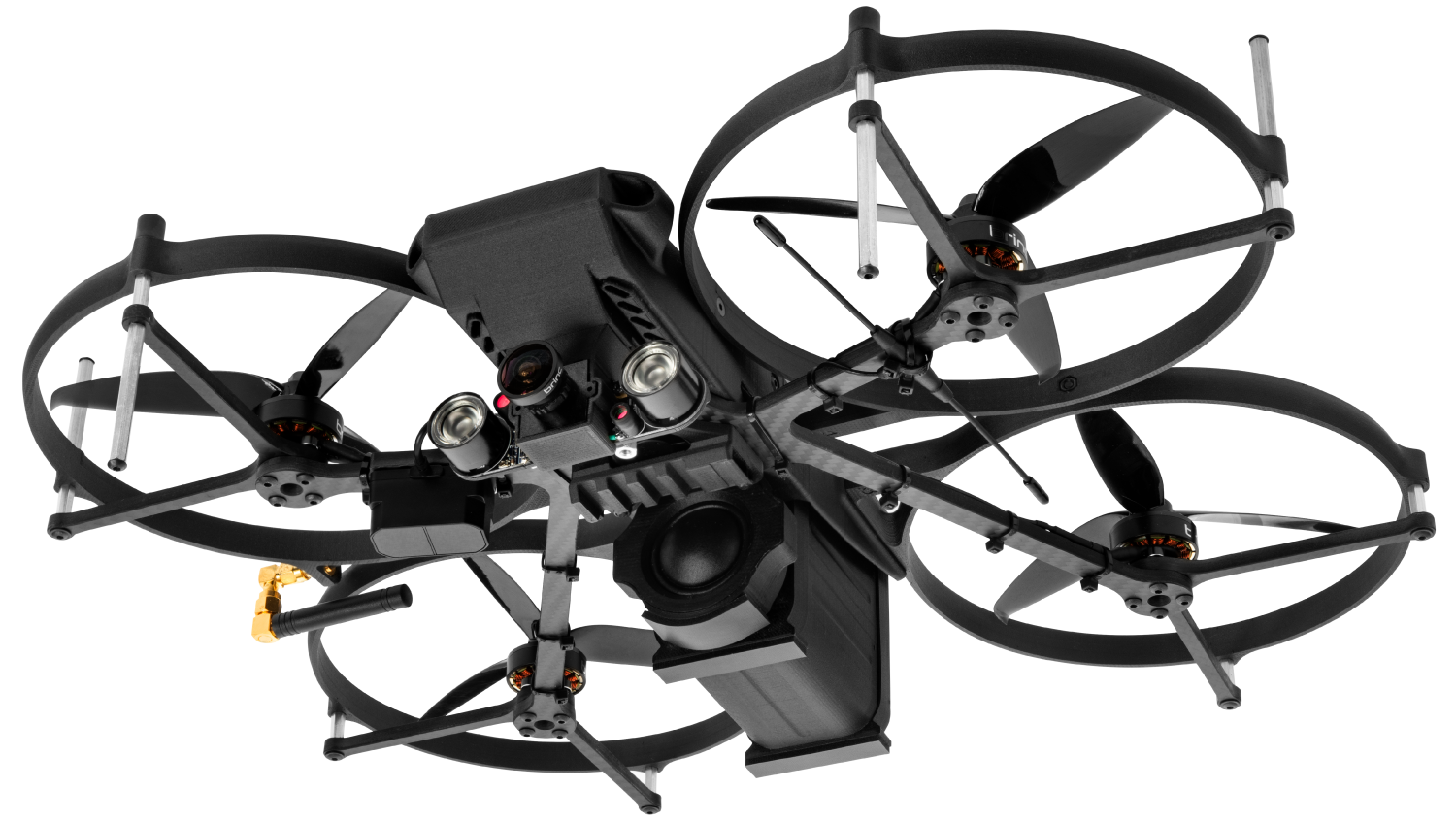

Two-Way Communications

The LEMUR S is equipped with a powerful two-way communication system (similar to a cell phone) that allows for real-time audio communications. There are two (2) highly sensitive onboard microphones that enable the drone to “hear” human voices, footsteps and doors closing up to 100 feet away.



Glass Breaker

Effective at breaking tempered, automotive and most residential glass so that the LEMUR S and/or your team can gain entry.

BRINC LEMUR S at a glance

Max Flight time

31 min

Max Speed

50 mph /

80.5 kmh

Weight

2.4 lb / 1.1 kg


RMUS 360 Solution

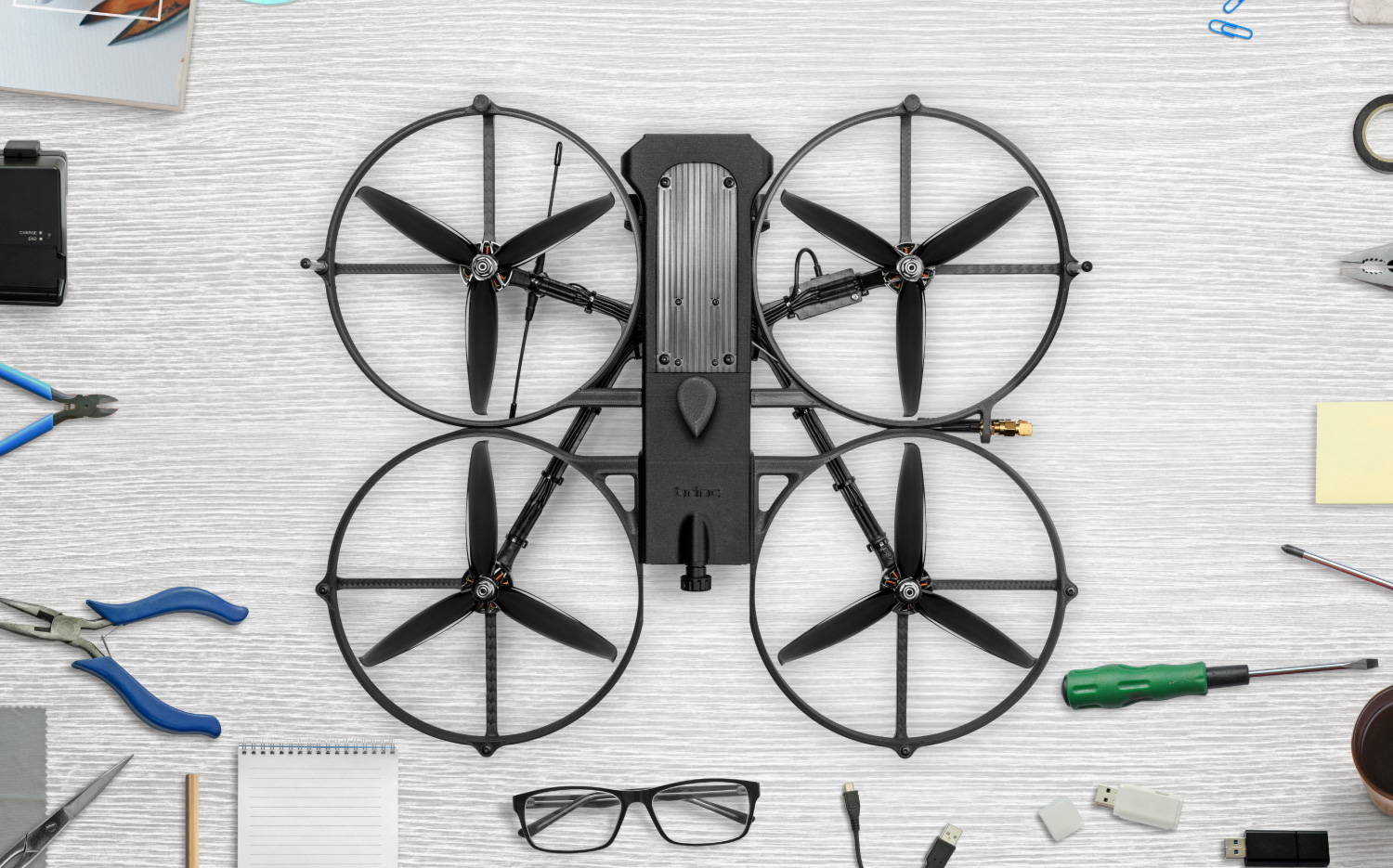

Certified Technicians

RMUS employs a team of certified technicians that oversee each Brinc LEMUR S. They perform a highly detailed inspection, calibration and testing process on each Brinc LEMUR S.

Ready-to-Deploy Package

RMUS leverages our experience in multiple industries to create “Ready-to-Deploy” packages that include all the necessary hardware, software, and auxiliary items for successful field operations.

BRINC LEMUR S Training Package

Each BRINC LEMUR S system includes a detailed one (1) day training class to ensure you are proficient with the aircraft and its various functions prior to field operations. RMUS highly recommends the advanced three (3) day training course if you have room in your budget. Please contact your RMUS Sales Representative for more information about the advanced three (3) day training class.

Other RMUS Solutions

Boston Dynamics Spot

RMUS Industrial Inspector Drone®

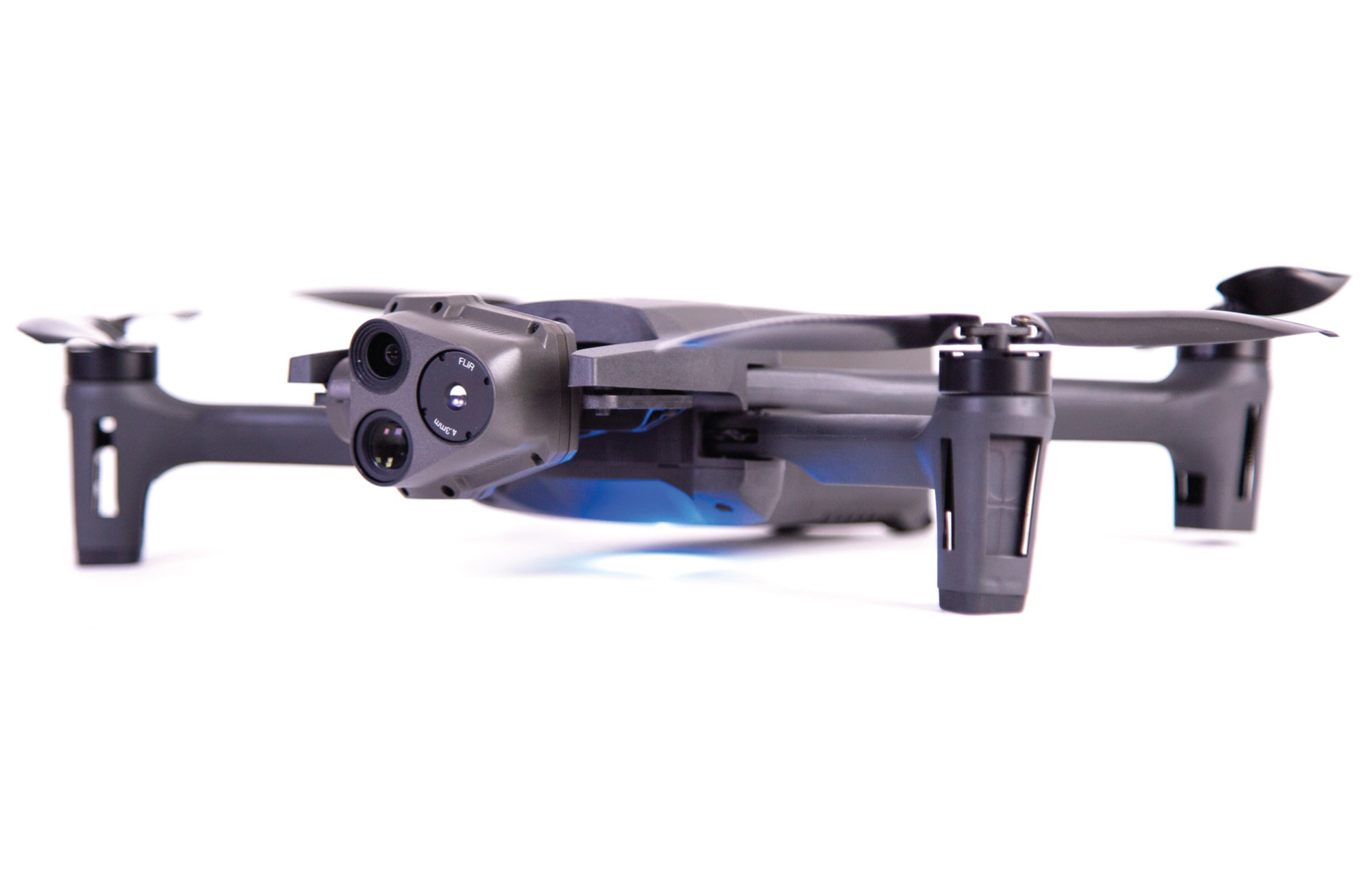

Parrot ANAFI USA
